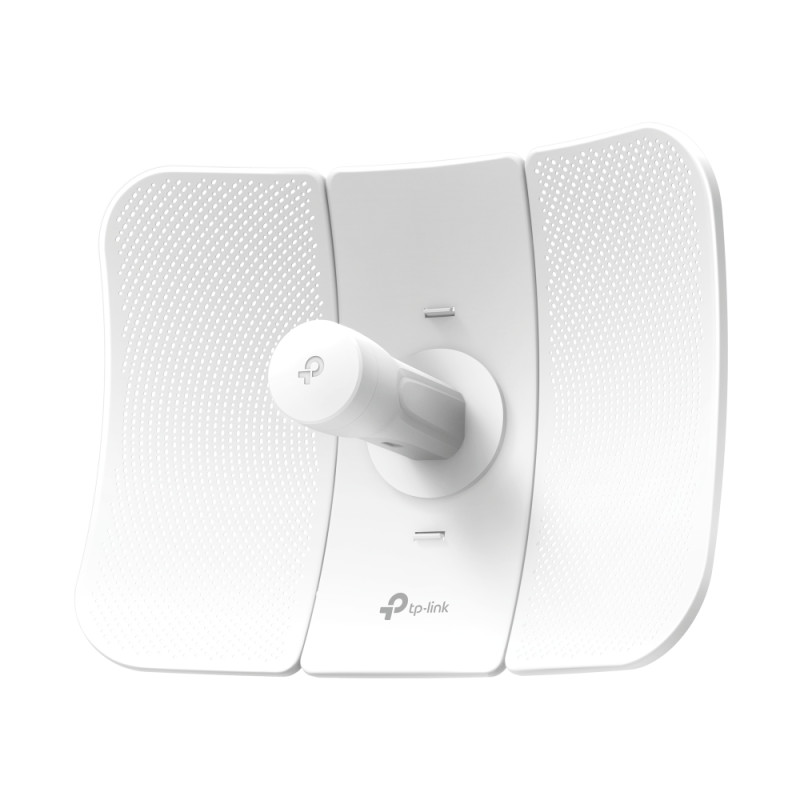

TP-link CPE710 5GHz AC 867Mbps 23dBi Outdoor CPE
10033
TP-Link
New product
- 802.11ac for up to 867Mbps on 5GHz wireless data rate
- 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
- Excellent beam directivity, improved latency and noise cancellation
- Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
More info
| Blazing Speed without Wait |
| 256 QAM and an 80 MHz bandwidth boosts overall speeds up to 867 Mbps, 3× faster than 802.11n Wi-Fi. |
| Professional-Standard 23 dBi Directional Antenna for Long-range Wireless Transmission |
| With 23 dBi high-gain directional Cassegrain antenna and dedicated metal reflector, the CPE710 provides excellent beam directivity, improved latency, and noise immunity. Professional performance, coupled with user-friendly design, makes the 5 GHz 867 Mbps 23 dBi Outdoor CPE710 an ideal choice and cost-effective solution for outdoor long-distance wireless networking applications. |
| Pharos Control – Centralized Management System |
| CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations. |
| HARDWARE FEATURES | |
| Processor | Qualcomm 750MHz CPU, MIPS 74Kc |
| Memory | 128 MB DDR2 RAM, 16 MB Flash |
| Interface | 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE) |
| 1 Reset Button | |
| Power Supply | Passive Power over Ethernet via LAN (+4,5pins; -7,8pins) |
| Voltage range: 16-27V DC | |
| Dimensions ( W x D x H ) | 14.4 x 11.0 x 8.1 in. |
| (366 x 280 x 207 mm) | |
| Antenna Gain | 23 dBi |
| Antenna Beamwidth | 9° (Azimuth)/7° (Elevation) |
| Protection | 15 KV ESD Protection |
| 6 KV Lightning Protection | |
| Enclosure | Material: Outdoor PC stabilized plastic |
| Weatherproof: IP65 water and dust proof design | |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n/ac |
| Wireless Speeds | Up to 867 Mbps (80 MHz, Dynamic) |
| Up to 400 Mbps (40 MHz, Dynamic) | |
| Up to 173.4 Mbps (20 MHz, Dynamic) | |
| Frequency | 5.15–5.85 GHz |
| Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. | |
| Transmit Power | Max. 27 dBm (Adjustable power by 1dBm) |
| SOFTWARE FEATURES | |
| Network Configuration | WAN: Static/ Dynamic/ PPPoE |
| LAN: Static/ Dynamic/ DHCP | |
| Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger | |
| Security: SPI Firewall/ Ping Forbidden/ DoS Protection | |
| Access Control | |
| Static Routing | |
| Bandwidth Control | |
| IP & MAC Binding | |
| Wireless Configurations | Selectable channel width: 20, 40 or 80MHz |
| Automatic Wi-Fi channel selection | |
| RF transmit power adjustment in 1 dB step | |
| Dynamic Frequency Selection (DFS) | |
| WDS Enable/ Disable | |
| Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption, | |
| SSID broadcast enable/ disable | |
| Multi-SSID with VLAN tagging in AP mode | |
| Distance/ ACK timeout setting | |
| Wireless MAC address filter | |
| Wireless advanced features: | |
| Beacon interval, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, short GI, Wi-Fi multimedia | |
| Long range point-to-point | |
| Management | Discovery and Remote Management with Pharos Control (Windows) |
| HTTP/ HTTPS Web-based management | |
| System log | |
| SNMP agent (v2c) | |
| Ping watchdog | |
| Dynamic DNS | |
| SSH server | |
| System Tools | Indicators:Signal Strength, Noise, Transmit CCQ, CPU, and Memory usage |
| Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, and DHCP | |
| Spectrum Analyzer | |
| Speed Test | |
| Ping | |
| Traceroute | |
| Antenna Alignment | |
| System-level Optimizations | Optimized IGMP Snooping / Proxy for multicast applications |
| POE ADAPTER FEATURES | |
| Dimensions(W x D x H) | 3.3 x 1.7 x 1.2 in. |
| (85 × 44 × 30 mm) | |
| Interfaces | 1 AC Jack with Earth Ground |
| 1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data) | |
| 1× 10/100/1000 Mbps Shielded Ethernet Port (Data) | |
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.5A Max |
| +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) | |
| Efficiency | > 84.29% |
| Certifications | CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
| OTHERS | |
| Certification | CE, FCC, RoHS, IP65 |
| Package Contents | Outdoor Wireless CPE |
| 24V 0.5A Passive PoE Adapter | |
| Pole Mounting Kits | |
| AC Power Cord | |
| Installation Guide | |
| Environment | Operating Temperature: -40℃~70℃ (-40℉~158℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~95% non-condensing | |
