Cards RFID PVC BCRMNW322
2178
BayLan
New product

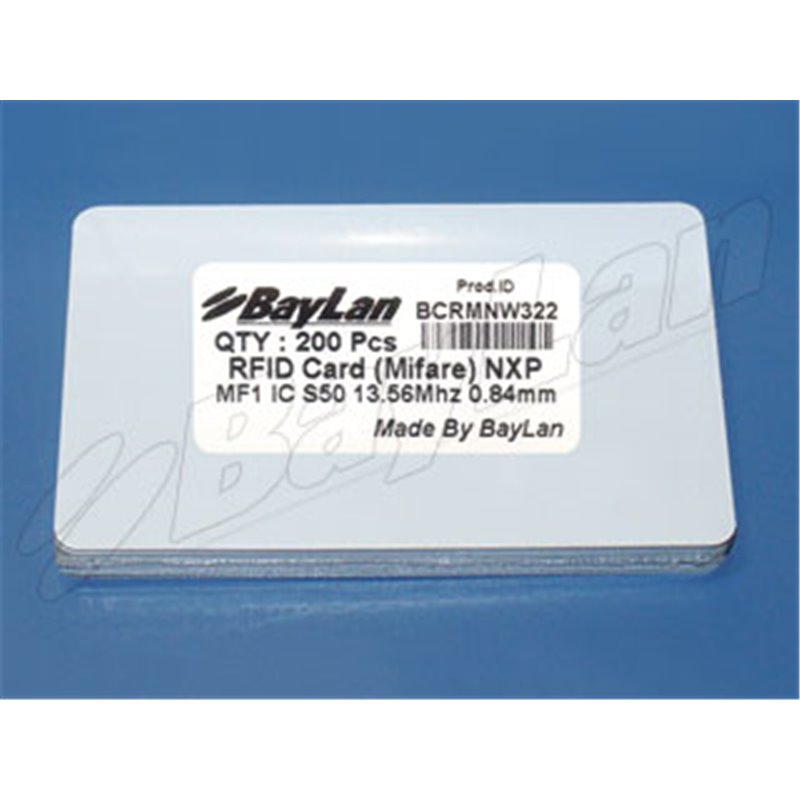

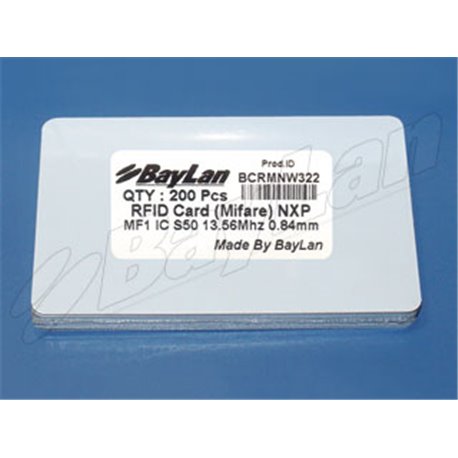

Card PVC RFID Mifare 13.56Mhz NXP Re-Writable 0.84mm S50 1KB with Overlay
This product is no longer in stock
More info
BayLan BCRMNW322
RFID Mifare S50 NXP (Phillips Chipset) 1KB PVC Read/Write Card
Features:
- Mifare RF Interface (ISO / IEC 14443 A)
- Contactless transmission of data and supply energy (No Battery needed)
- Operating Distance Upto 100mm (Depending on Antenna Geometry)
- Operating Frequency 13.56MHz
- Fast Data Transfer 106 Kbit/s
- High Data Integrity 16 Bit CRC, Parity, Bit coding, bit counting
- True Anti-collision
- Typical Ticketing Transactions <100ms (Including Backup Management)
- 1 Kbyte organized in 16 sectors with 4 blocks of 16 bytes each (One block consist of 16 bytes)
- User definable access conditions for each memory block
- Data Retention of 10 years
- Write endurance 200,000 cycles
- Size (W x H x T) : 86 x 54 x 0.84 ± 0.04
Download
Datasheet Cards RFID PVC BCRMNW3
Datasheet RFID Card PVC Mifare 13.56Mhz NXP Re-Writable 0.84mm S50 1KB with Overlay
Download (156.53k)
