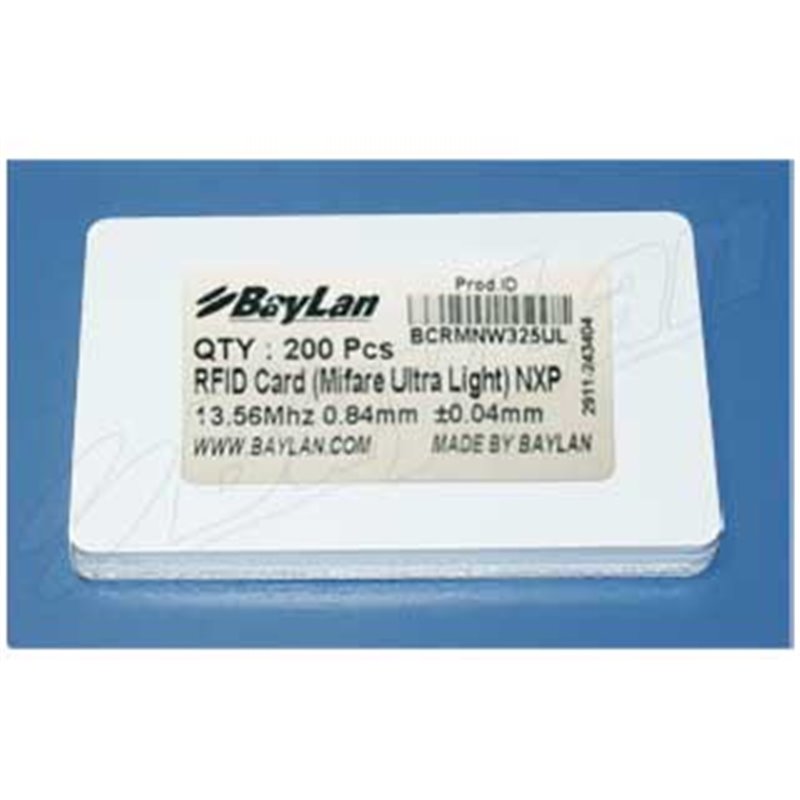

Cards RFID PVC BCRMNW325-UL

Cards RFID PVC BCRMNW325-UL

Product ID: 2434 Available

Brand: BayLan

Reference:

Condition: New product

Card PVC RFID Mifare 13.56Mhz NXP Ultra Light Re-Writable 0.84mm S50 Ultra Light 512b with Overlay

This product is no longer in stock

Send to a friend by WhatsApp

Send to a friend

Send to a friend

Cards RFID PVC BCRMNW325-UL
Card PVC RFID Mifare 13.56Mhz NXP Ultra Light Re-Writable 0.84mm S50 Ultra Light 512b with Overlay

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Share on Facebook!
Print

₨. 71.60

Warranty

None

Add to wishlist

More info

BayLan BCRMNW325-UL

RFID Mifare Ultralight NXP (Phillips Chipset) PVC Read/Write Card

Features:

Contactless transmission of date and supply energy (No Battery needed)
Operating Distance Upto 100mm (Depending on Antenna Geometry)
Operating Frequency 13.56MHz
Fast Data Transfer 106 Kbit/s
High Data Integrity 16 Bit CRC, Parity, bit coding, bit counting
True Anti-collision
7 byte serial number (cascade level 2 according to ISO / IEC 14443-3)
Typical Ticketing Transactions < 35ms (Including Backup Management)
Fast Counter Transaction < 10ms
512-bit organized in 16 sectors with bytes per page
Field programmable read-only locking function per page
32-bit user definable One-Time Programmable (OTP) area
384-bit user Read/Write area (12 pages)
Data Retention of 5 years
Write endurance 10000 cycles
Size (W x H x T) : 86 x 54 x 0.84 ± 0.04

Download

Datasheet Cards RFID PVC BCRMNW3

Datasheet RFID Card PVC Mifare 13.56Mhz NXP Ultra Light Re-Writable 0.84mm S50 Ultra Light 512b with Overlay

Download (156.49k)
