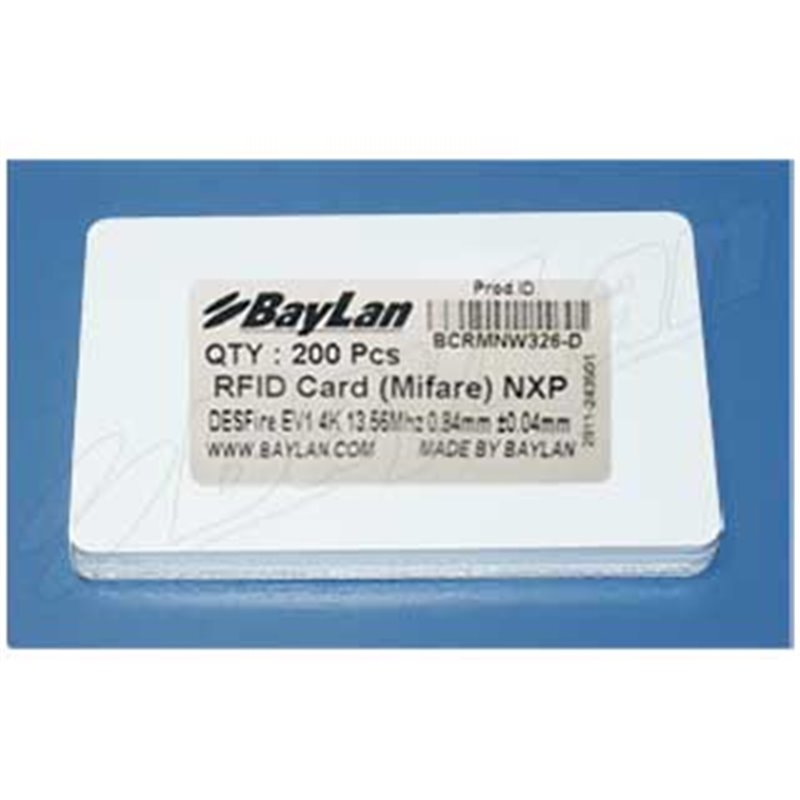

Cards RFID PVC BCRMNW326-D

BayLan BCRMNW326-D

RFID Mifare DESFire EV1 NXP (Phillips Chipset) 2KB PVC Read/Write Card

Features:

• Contactless transmission of data and power by the RF-field (No Battery needed)

• Operating Distance Upto 100mm (Depending on power provided by the PCD and Antenna Geometry)
• Operating Frequency 13.56MHz
• Fast Data Transfer 106 Kbit/s . 212 Kbit/s , 424 Kbit/s, 848 Kbit/s
• High Data Integrity 16/32 Bit CRC, Parity, bit coding, bit counting
• True Anti-collision
• 7 byte unique identifier (cascade level 2 according to ISO / IEC 14443-3 and option for random ID)
• Purse Functionality Value File
• Transaction Logging Capability Record File
• Secure Transport Transaction example 512 bytes read, 128 bytes write
• Related Transaction Time 89ms
• Transaction oriented automatic anti-tear mechanism
• Configurable ATS information for card personalization
• Optional high input capacitance (70pF) for small form factor design (MF31CDH 21/41/81)
• 2KB NV-Memory
• Data Retention of 10 years
• Write Endurance Typical 500,000 cycles
• Size (W x H x T) : 86 x 54 x 0.84 ± 0.04
