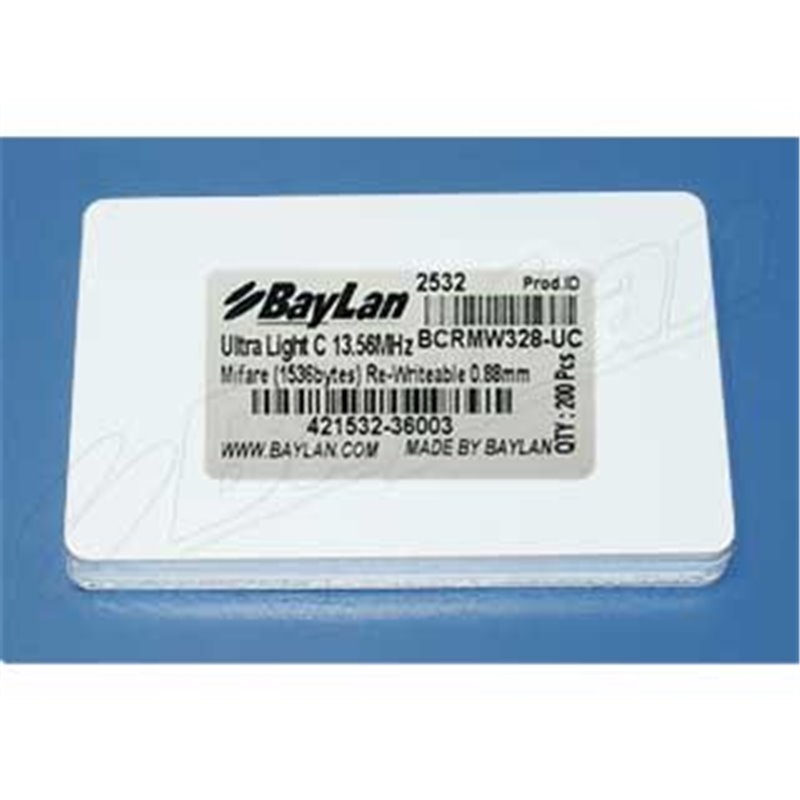

Cards RFID PVC BCRMW328-UC

BayLan BCRMW328-UC

RFID Mifare Ultralight C (Phillips Chipset) PVC Read/Write Card

Features:

• Contactless transmission of date and supply energy (No Battery needed)
• Operating Distance Upto 100mm (Depending on Antenna Geometry)
• Operating Frequency 13.56MHz
• Fast Data Transfer 106 Kbit/s
• High Data Integrity 16 Bit CRC, Parity, bit coding, bit counting
• True Anti-collision
• 7 byte serial number (cascade level 2 according to ISO / IEC 14443-3)
• Typical Ticketing Transactions < 35ms (Including Backup Management)
• Fast Counter Transaction < 10ms
• 1536-bit organized in 16 sectors with bytes per page
• Field programmable read-only locking function per page for first 512-bit
• 3DES Authentication
• Anti-cloning support by unique 7-byte serial number for each device
• 32-bit user definable One-Time Programmable (OTP) area
• 1152-bit user Read/Write area (12 pages)
• 16-bit one-way counter
• 512-bit compatible to MF0ICU1
• Data Retention of 10 years
• Write endurance 100,000 cycles
• Size (W x H x T) : 86 x 54 x 0.84 ± 0.04
