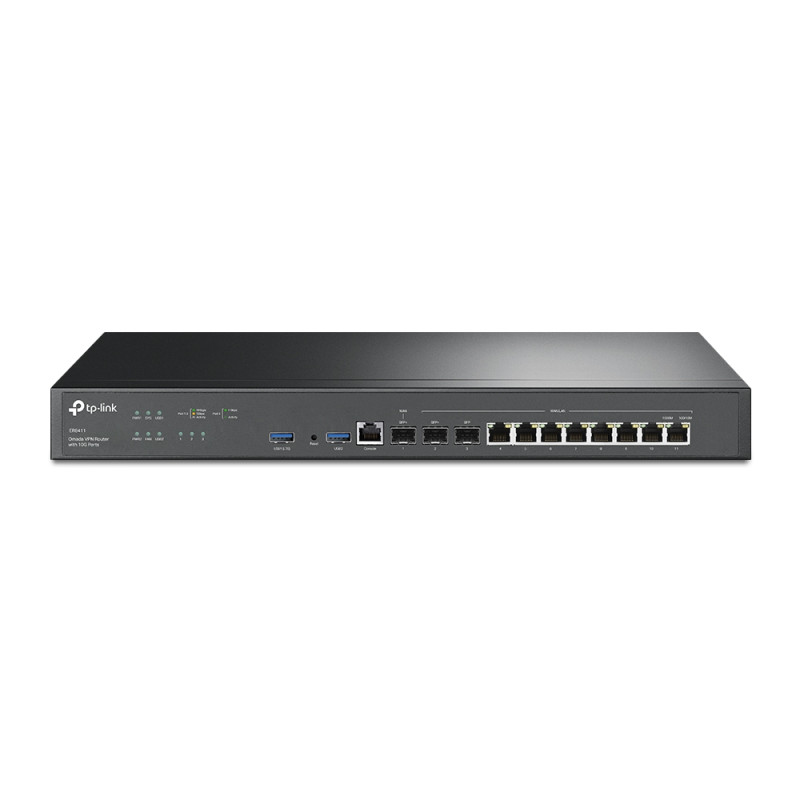

TP Link ER8411 Omada VPN Router with 10G Ports

10592

TP-Link

ER8411

New product

  • Integrated into Omada SDN
  • Centralized Management
  • Two 10GE SFP+ Ports
  • Up to 10 WAN Ports
  • Highly Secure VPN
  • Abundant Security Features

More details

Send to a friend by WhatsApp

₨. 140,000.00

Add to wishlist

More info

High-Capacity Performance with Quad-Core 2.2 GHz CPU
Manage your entire business network with the right amount of processing power. Dual redundant power supplies further ensure carrier-class reliability for enterprise networking.
Maximize the 10G Broadband with Omada Enterprise Gateway
Maximized 10G Broadband with the Omada Enterprise Gateway Build your lightning-fast network with Omada ER8411 — an enterprise VPN router with 10G ports. It surpasses the need for high-speed, reliable, and safe enterprise networks, ideal for large-scale deployments such as offices, schools, and hotels.
10× WAN Ports & One USB WAN for Mobile Broadband
Up to 10× WAN SFP+, SFP, and RJ45 ports allow the router to support various internet access requirements. Multi-WAN Load Balancing distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband. Connect a 4G/3G modem to one of the USB 3.0 ports for LTE WAN backup.
High-Security and High-Performance VPN
ER8411 supports pass-through traffic and multiple VPN protocols, including SSL, IPSec, PPTP, and L2TP in Client/Server mode. One-click auto IPSec VPN simplifies VPN configuration and facilitates network management and deployment. The router also features built-in VPN engine hardware, allowing support and management of hundreds of IPSec, PPTP, L2TP, SSL VPN, and OpenVPN Tunnels.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

SECURITY
Access Control Source/Destination IP Based Access Control
Filtering  WEB Group Filtering
 URL Filtering
 Web Security
ARP Inspection  Sending GARP Packets
 ARP Scanning
 IP-MAC Binding
Attack Defense  TCP/UDP/ICMP Flood Defense
 Block TCP Scan (Stealth FIN/Xmas/Null)
 Block Ping from WAN
HARDWARE FEATURES
Standards and Protocols  IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
 TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP, WireGuard VPN
Interface  2× 10GE SFP+ Ports (1 WAN, 1 WAN/LAN)
 1× 1GE SFP WAN/LAN Ports
 8× 1GE RJ45 WAN/LAN Ports
 1× RJ45 Console Ports
 2× USB Ports (Connecting 4G/3G Modem as WAN Backup)
Network Media  10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
 100BASE-TX: UTP category 5, 5e cable (Max 100 m)
EIA/TIA-568 100Ω STP (Max 100 m)
 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Fan Quantity 2
Button Reset Button
Power Supply Redundant Dual Power Supplies (100–240 VAC, 50/60 Hz)
Flash 4MB SPI NOR + 256 MB NAND
DRAM 4 GB DDR4
LED PWR, SYS, WAN, LAN, USB, FAN
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Protection 4 kV surge protection
Enclosure Steel
Mounting Rack Mountable
Max. Power Consumption  26.36 W (with USB 3.0 connected)
 19.12 W (without USB 3.0 connected)
PERFORMANCE
IPS Throughput TCP: 4924 Mbps;
UDP: 4521 Mbps
DPI Throughput TCP: 5524 Mbps;
UDP: 3547 Mbps
WireGuard VPN 1411 Mbps
Concurrent Session 2,300,000
New Sessions /Second 20,000
NAT (Static IP)  Upload: 9445.82 Mbps
 Download: 9449.26 Mbps
NAT(DHCP)  Upload: 9426.83 Mbps
 Download: 9426.20 Mbps
NAT(PPPoE)  Upload: 9413.96 Mbps
 Download: 9102.01 Mbps
NAT (L2TP)  Upload: 4230.62 Mbps
 Download: 4169.53 Mbps
NAT (PPTP)  Upload: 3933.86 Mbps
 Download: 3821.97 Mbps
64 Byte Packet Forwarding Rate  Upload: 1080 Mbps
 Download: 1030 Mbps
IPsec VPN Throughput  SHA1-AES256: 2140.45 Mbps
 SHA2-AES256: 2080.20 Mbps
OpenVPN 1665.64 Mbps
L2TP VPN Throughput  Unencrypted: 5013.50 Mbps
 Encrypted: 2274.74 Mbps
PPTP VPN Throughput  Unencrypted: 10143 Mbps
 Encrypted: 952 Mbps
SSL VPN Throughput 1511.10 Mbps
1,518 Byte Packet forwarding rate  Upload: 9970 Mbps
 Download: 9970 Mbps
BASIC FUNCTIONS
WAN Connection Type  Static/Dynamic IP
 PPPoE
 PPTP
 L2TP
 6to4 Tunnel
 Pass-Through
 Mobile Broadband: 4G/3G modem for backup via USB port
MAC Clone Modify WAN/LAN MAC Address
DHCP  DHCP Server/Client
 DHCP Address Reservation
 Multi-net DHCP
 Multi-IP Interfaces
IPv6 WAN Connection
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
Advanced Features
Access Control IP/Port/Protocol/Domain Name Filtering
Advanced Routing  Static Routing
 Policy Routing
Bandwidth Control  IP/Port-based Bandwidth Control
 Guarantee & Limited Bandwidth
Load Balance  Intelligent Load Balance
 Application Optimized Routing
 Link Backup (Timing*5, Failover)
 Online Detection
NAT  One-to-One NAT
 Multi-Net NAT
 Virtual Server
 Port Triggering
 NAT-DMZ
 FTP/H.323/SIP/IPSec/PPTP ALG
 UPnP
Security  SPI Firewall
 VPN Passthrough
 FTP/H.323/PPTP/SIP/IPsec ALG
 DoS Defence, Ping of Death
 Local Management
Session Limit IP-based Session Limit
VPN
SSL VPN  SSL VPN Server
 SSL VPN Client
 500 SSL VPN Tunnels
IPsec VPN  300 IPSec VPN Tunnels
 LAN-to-LAN, Client-to-LAN
 Main, Aggressive Negotiation Mode
 DES, 3DES, SHA1, SHA2, AES128, AES192, AES256 Encryption Algorithm
 IKE v1/v2
 MD5, SHA1 Authentication Algorithm
 NAT Traversal (NAT-T)
 Dead Peer Detection (DPD)
 Perfect Forward Secrecy (PFS)
PPTP VPN  PPTP VPN Server
 PPTP VPN Client (32)
 300 Tunnels (Shared with L2TP)
 PPTP with MPPE Encryption
L2TP VPN  L2TP VPN Server
 L2TP VPN Client (32)
 300 Tunnels (Shared with PPTP)
 L2TP over IPSec
OpenVPN  OpenVPN Server
 OpenVPN Client (10)
 110 OpenVPN Tunnels
WireGuard VPN  300 Tunnels
Management Features
Omada App Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management  Omada Hardware Controller (OC300)
 Omada Hardware Controller (OC200)
 Omada Software Controller
 Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance  Web Management Interface
 Remote Management
 Export & Import Configuration
 SNMP v1/v2c/v3
 Diagnostics (Ping & Traceroute)
 NTP Synchronize
 Syslog Support
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features  Automatic Device Discovery
 Intelligent Network Monitoring
 Abnormal Event Warnings
 Unified Configuration
 Reboot Schedule
 Captive Portal Configuration
OTHERS
Certification CE, FCC, RoHS
Package Content  Omada 10G Multi-WAN Security Gateway ER8411
 Power Cord
 Rack-Mount Kit
 Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
Environment  Operating Temperature: 0–40 ℃ (32–104 ℉);
 Storage Temperature: -40–70 ℃ (-40–158 ℉)
 Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
