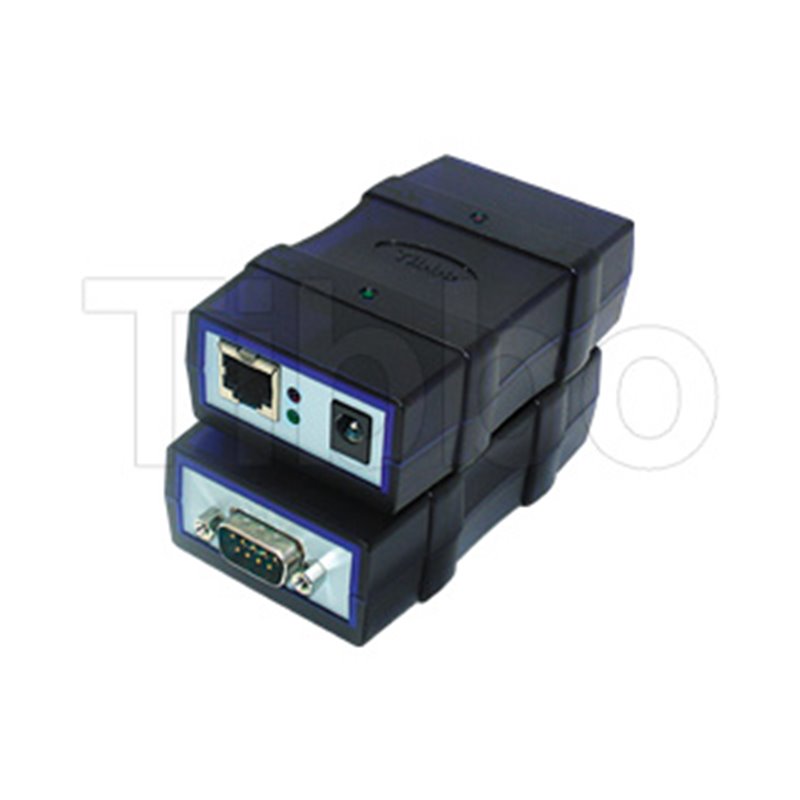

TA & AC Converters DS100B

FEATURES:

• Tibbo DS100B Changer RS232 to RS/422/485
• Network enables any serial device
• Transparently routes the data between its 10BaseT Ethernet and serial port
• DS100B with RS232/422/485 universal serial port (interface is selected by jumper)
• Communicates with other stations on the network using TCP/IP or UDP/IP protocols
• Flexible, have many adjustable functioning parameters (Settings)
• All settings can be configured through the serial port or over the network
• Supports over-the-network configuration of IP-address
• Supports on-the-fly commands for immediate remote change of serial port parameters (baudrate, parity, etc.)
• Supplied with Device Server Toolkit software for Windows including
• Virtual Serial Port Manager to create any number of Virtual Serial Ports on the PC
• Device Server Manager to edit the Settings of the DS100 and EM100 via the network
• Connection Wizard to quickly link DS100s (EM100s) to Virtual Serial Ports and each other
• Virtual Serial Port Monitor to log the activity of Virtual Serial Ports
• CE and FCC-approved
• All the latest firmware, PC software, and documentation for this Device can be found at. www.tibbo.com
