Lan Cards BNR60031U

Lan Cards BNR60031U

Product ID: 990 Available

Brand: BayLan

Reference:

Condition: New product

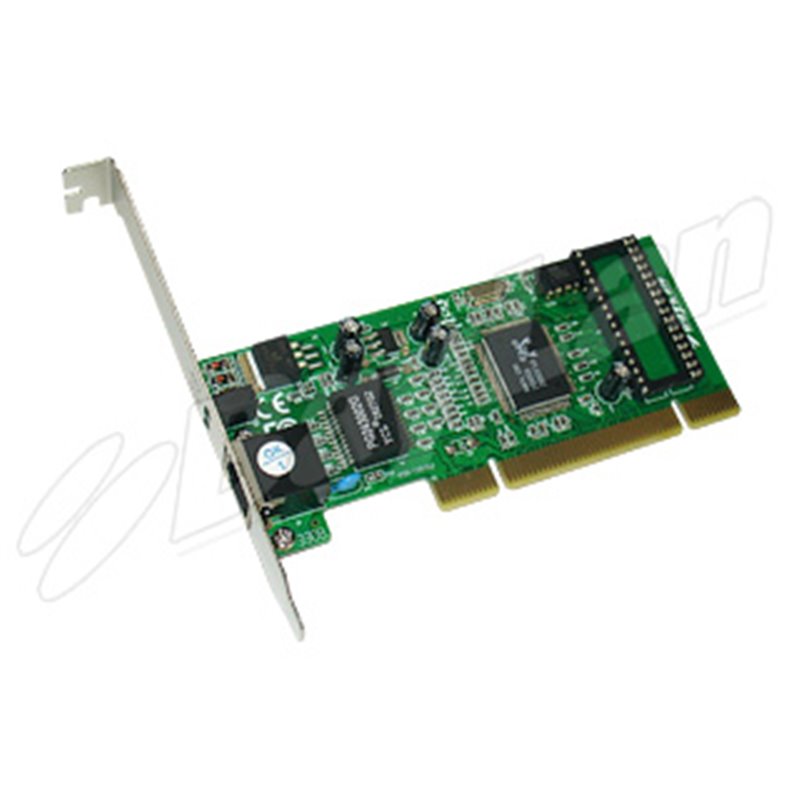

Lan Card 10/100/Giga Mbps PCI-32Bit with Boot Rom Socket

This product is no longer in stock

Send to a friend by WhatsApp

Send to a friend

Send to a friend

Lan Cards BNR60031U
Lan Card 10/100/Giga Mbps PCI-32Bit with Boot Rom Socket

Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Share on Facebook!
Print

₨. 597.00

Warranty

None

Add to wishlist

More info

BayLan BNR60031U

PCI 10/100/1000Mbps Gigabit Ethernet Card

Features:

Realtek Chipset W/Boot ROM Socket
IEEE 802.3, 802.3u and 802.3ab compliant.
Support 32-bit 33/66Mhz PCI Local Bus Master high-speed operation of Rev.21/2.2 specification.
Plug-and-Play installation.
One RJ-45 connector: Auto detection of 10Mbps Ethernet,100Mbps Fast Ethernet and 1000Mbps Gigabit Ethernet & Auto MDI-X.
Support IEEE802.31Q VLAN tagging.
Support 10/100/1000Mbps Auto-Negotiation operation.
Full Duplex support for 10/100/1000Mbps data rates.
Auto MDI-II/MDI-X crossover for all three speeds.
Built-in FIFO (8K/64K) buffers reduces overhead of memory transfers.
802.3x Full duplex flow control, including automatic transmission of Pause frames based on Rx FIFO thresholds.
Two LED indicators for easy diagnostic.

Reviews

Download

Datasheet Lan Cards BNR60031U

Datasheet Lan Card 10/100/Giga Mbps PCI-32Bit with Boot Rom Socket

Download (213.46k)
