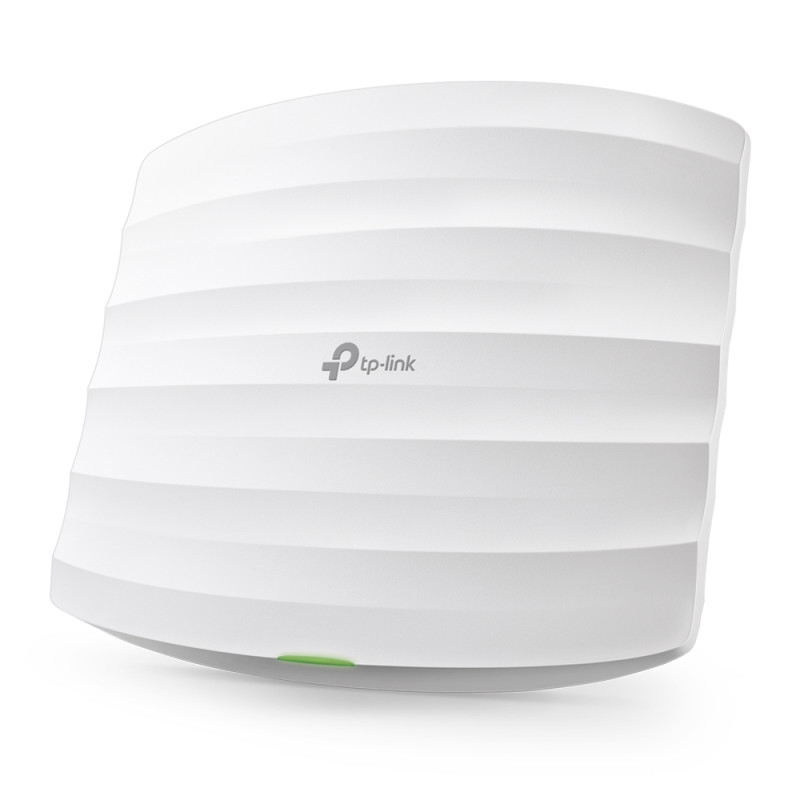

TP-link EAP110 300Mbps Wireless N Ceiling Mount Access Point
10034
TP-Link
New product
- Integrated into Omada SDN
- Centralized Management
- PoE Support
- Easy Installation
- Secure Guest Network
- Scheduling
More info
| Flexible Placement Easy mounting design & PoE |
| The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible. |
| Seamless Integrated into Omada SDN Platform |
| The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. |
| Guest Network with Facebook and SMS Support |
| The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business. |
| Easy Management with the Omada App |
| Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet. |
| HARDWARE FEATURES | |
| Interface | Fast Ethernet (RJ-45) Port *1（Support Passive PoE） |
| Button | Reset |
| Power Supply | 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 2.8 W |
| Dimensions ( W x D x H ) | 7.5×6.8×1.2 in (189.4×172.3×29.5mm) |
| Antenna Type | Internal 2× 4 dBi Omni |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Coverage | 60㎡(650ft²)§ |
| Wireless Client Capacity | 100+ |
| Concurrent Clients | 100+ |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) |
| 11g: Up to 54Mbps(dynamic) | |
| 11b: Up to 11Mbps(dynamic) | |
| Reception Sensitivity | 300M: -71dBm@10% PER |
| 150M: -75dBm@10% PER | |
| 54M: -78dBm@10% PER | |
| 11M: -93dBm@8% PER | |
| 6M: -92dBm@10% PER | |
| 1M: -96dBm@8% PER | |
| Wireless Functions | Multiple SSIDs （Up to 8 SSIDs） |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control （Adjust Transmit Power on dBm） | |
| QoS(WMM) | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Rogue AP Detection | |
| 802.1X Support | |
| 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK | |
| Transmission Power | CE: |
| <20dBm | |
| FCC: | |
| <26dBm | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Hardware Controller (OC300) |
| Omada Hardware Controller (OC200) | |
| Omada Software Controller | |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | 300Mbps Wireless N Ceiling Mount Access Point EAP110 |
| Passive PoE Adapter, | |
| Power Cord, | |
| Mounting Kits, | |
| Installation Guide | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
