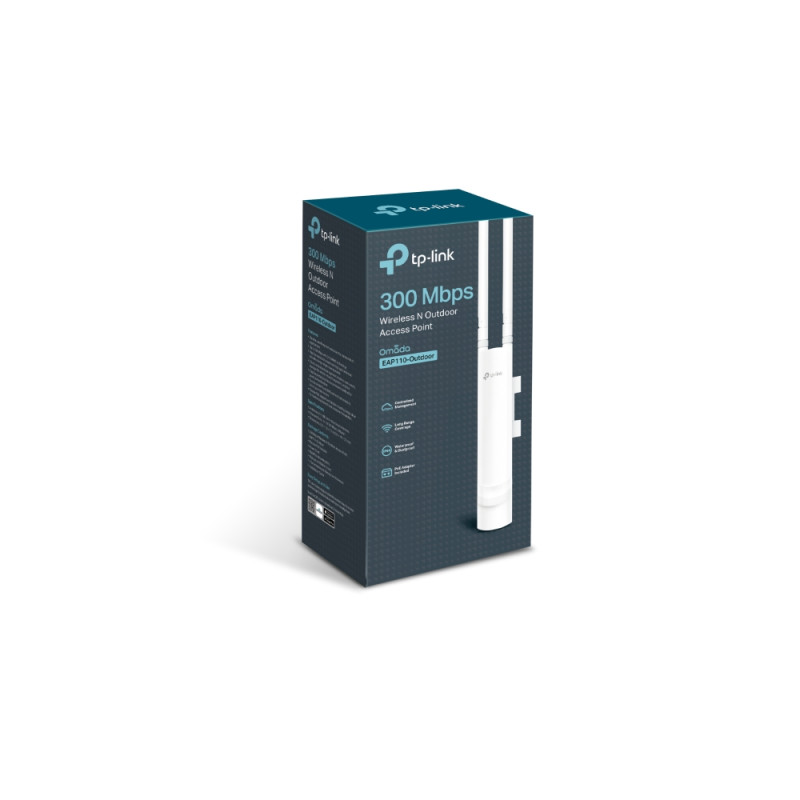

TP-link EAP110-Outdoor 300Mbps Wireless N Outdoor Access Point
10035
TP-Link
New product
- Fast Wi-Fi
- Long-Range Coverage
- Integrated into Omada SDN
- Centralized Management
- PoE Support
- Secure Guest Network
More info
| Excellent Hardware Designs |
| With special design of its antenna, appearance, power options and installation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors. |
| Detachable Antennas |
| EAP110-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands. |
| Wi-Fi That Goes the Distance |
| With high transmission power and two high-gain omnidirectional antennas,EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings. |
| Specially Designed Weatherproof Enclosure for Outdoor Environment |
| Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition. |
| Efficient Centralized Network Management |
| With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive. |
| HARDWARE FEATURES | |
| Interface | 1 × Fast Ethernet (RJ-45) Port |
| (Support Passive PoE) | |
| Button | Reset |
| Power Supply | 24V Passive PoE |
| (+4,5pins; -7,8pins. PoE Adapter Included) | |
| Power Consumption | 3.1 W |
| Dimensions ( W x D x H ) | 8.2 × 3.7 × 1.7 in. |
| (209 × 95 × 42.6 mm) | |
| Antenna Type | 2 × 3dBi External Omni waterproof |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole or wall mounting (mounting kit included) |
| WIRELESS FEATURES | |
| Wireless Client Capacity | 100+ |
|
Concurrent Clients |
100+ |
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency | 2.4GHz |
| Signal Rate | 11n: Up to 300Mbps |
| 11g: Up to 54Mbps | |
| 11b: Up to 11Mbps | |
| Transmit Power | < 27dBm |
| Wireless Functions | Multiple SSIDs (Up to 8 SSIDs) |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control (adjustable on 1 dBm step) | |
| QoS (WMM) | |
| Load Balance | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID, AP, and Client | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Rogue AP Detection | |
| 802.1X Support | |
| 64/128/152-bit WEP / WPA / WPA2-Enterprise, | |
| WPA-PSK / WPA2-PSK | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Cloud Access | Yes. Requiring the use of OC300, OC200, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Local and Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor |
| Passive PoE Adapter | |
| Power Cord | |
| Mounting Kit | |
| Waterproof Rubber Insert | |
| Waterproof Antennas | |
| Installation Guide | |
| Environment | Operating Temperature: -30℃~65℃ (-22℉~149℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
