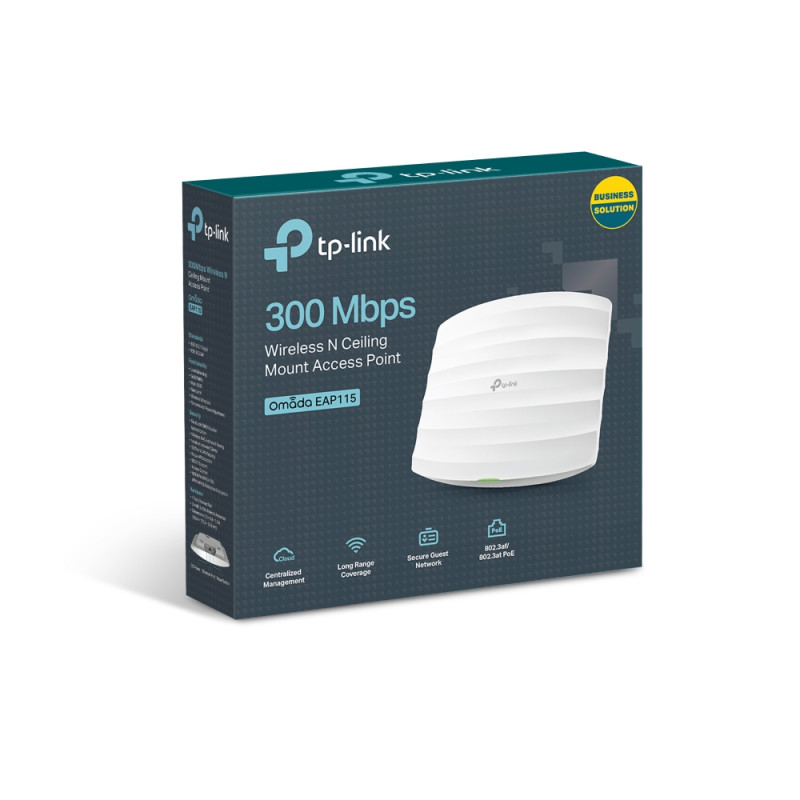

TP-link EAP115 300Mbps Wireless N Ceiling Mount Access Point
10036
TP-Link
New product
- Integrated into Omada SDN
- Centralised Management
- PoE Support
- Easy Installation
- Secure Guest Network
- Load Balancing
- Scheduling
More info
| Omada SDN—Smarter Cloud Solution for Business Networking |
| Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability. |
| Guest Network with Facebook and SMS Support |
| The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business. |
| Timesaving and Flexible Deployment |
| The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralised management system. |
| Easy Management with the Omada App |
| Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet. |
| HARDWARE FEATURES | |
| Interface | Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE） |
| Button | Reset |
| Power Supply | PoE or external 9VDC/0.6A power supply |
| Power Consumption | 2.8W |
| Dimensions ( W x D x H ) | 7.5×6.7×1.2 in (189.5×170.5×29.7mm) |
| Dimensions | 7.5×6.8×1.2 in. (189.4×172.3×29.5mm) |
| Antenna Type | Internal 2* 4dBi Omni |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Coverage | 60㎡(650ft²)§ |
| Concurrent Clients | 100+** |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic) |
| 11g: Up to 54Mbps(dynamic) | |
| 11b: Up to 11Mbps(dynamic) | |
| Reception Sensitivity | 300M: -71dBm@10% PER |
| 150M: -75dBm@10% PER | |
| 54M: -78dBm@10% PER | |
| 11M: -93dBm@8% PER | |
| 6M: -92dBm@10% PER | |
| 1M: -96dBm@8% PER | |
| Wireless Functions | Multiple SSIDs （Up to 8 SSIDs） |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control （Adjust Transmit Power on dBm） | |
| QoS(WMM) | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Rogue AP Detection | |
| 802.1X Support | |
| 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK | |
| Transmission Power | CE: |
| ≤19dBm | |
| FCC: | |
| ≤26dBm | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | 300Mbps Wireless N Ceiling Mount Access Point EAP115 |
| Power Adapter | |
| Mounting Kits, | |
| Installation Guide | |
| System Requirements | Microsoft Windows 10/8/7/Vista/XP |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| Warranty | Limited 1-Year Warranty |
| For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma | |
