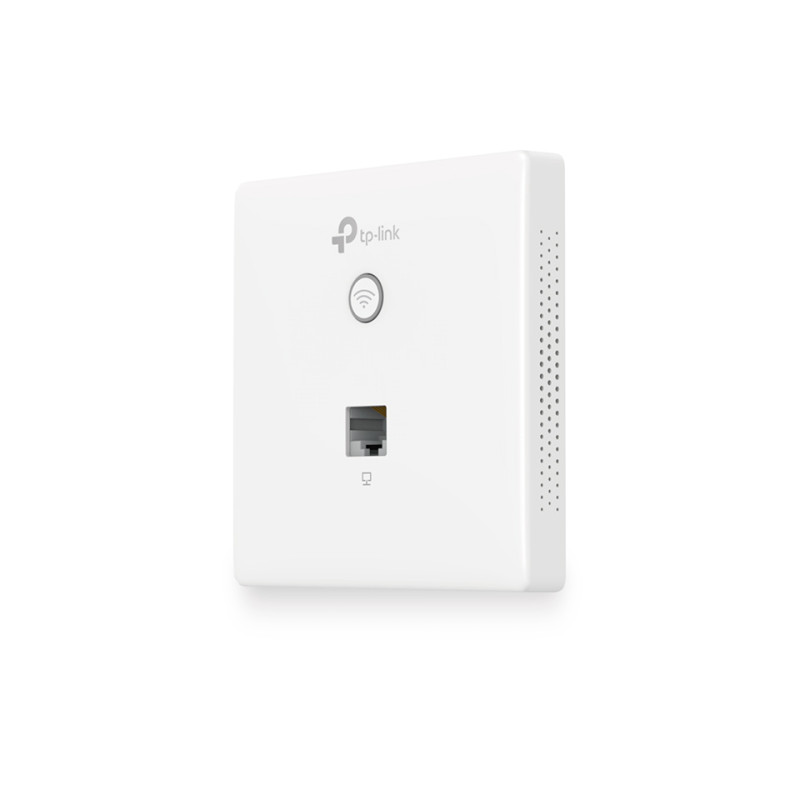

TP-link EAP115-Wall 300Mbps Wireless N Wall-Plate Access Point
10037
TP-Link
New product
- Easy-mount construction allows installation into any standard EU-type data wall-box
- Support Power over Ethernet (802.3af) for convenient and affordable installation
- Supports management VLAN for an enhanced network management
More info
| Perfectly Formed |
| The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes a casing that’s just 11 mm in thickness. |
| Effortless Deployment |
| With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go. |
| Complete Wireless Coverage |
| An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network. |
| Easy Management with the Omada App |
| Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet. |
| HARDWARE FEATURES | |
| Interface | Uplink: 1× 10/100 Mbps Ethernet Port |
| Downlink: 1× 10/100 Mbps Ethernet Port | |
| Physical Security Lock | No |
| Button | LED/Wi-Fi Button |
| RESET | |
| Power Supply | PoE (IEEE 802.3af) |
| Power Consumption | 2.8 W |
| Dimensions ( W x D x H ) | 3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm) |
| Antenna Type | Internal 2× 1.8 dBi Omni |
| Mounting | Wall Plate Mounting |
| Hardware Watch Dog | Yes |
| WIRELESS FEATURES | |
| Wireless Client Capacity | 100+* |
| Wireless Standards | IEEE 802.11n/g/b |
| Frequency | 2.4 GHz |
| Signal Rate | 11n: Up to 300 Mbps (dynamic) |
| 11g: Up to 54 Mbps (dynamic) | |
| 11b: Up to 11 Mbps (dynamic) | |
| Transmit Power | CE： |
| ≤20 dBm (2.4 GHz) | |
| Wireless Functions | Multiple SSIDs (Up to 8 SSIDs) |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control (Adjust Transmit Power on dBm) | |
| QoS(WMM) | |
| Load Balance | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Local LAN port based VLAN | |
| Rogue AP Detection | |
| 802.1X Support | |
| 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Hardware Controller (OC300) |
| Omada Hardware Controller (OC200) | |
| Omada Software Controller | |
| Cloud Access | Yes. Requiring the use of OC300, OC200, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents | 300 Mbps Wireless N Wall-Plate Access Point EAP115-Wall |
| Installation Guide | |
| Mounting Screw | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) |
| Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
