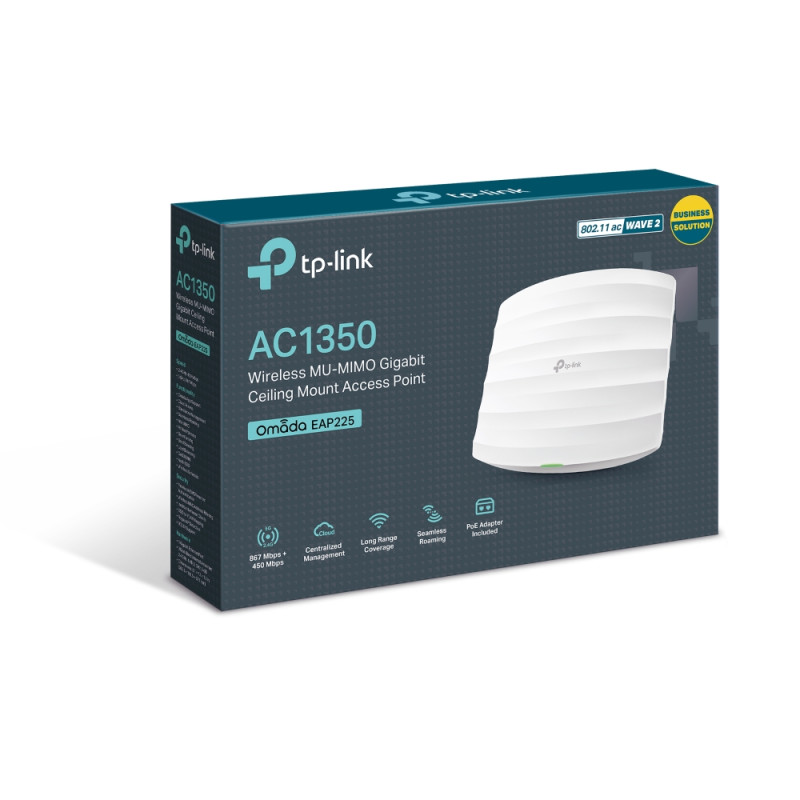

TP-link EAP225-AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
10038
TP-Link
New product
- Fast Dual-Band Wi-Fi
- Integrated into Omada SDN
- Seamless Roaming
- PoE Support
- Secure Guest Network
- Advanced Wireless Tech
More info
| Superior Wi-Fi Speeds with MU-MIMO Technology |
| Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time. |
| Cloud Centralized Management - Anytime, Anywhere |
| Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself. |
| Secure Guest Network with Facebook Wi-Fi and SMS Authentication |
| The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business. |
| Multiple PoE Options for Easy Installation |
| EAP225 supports both 802.3af PoE and Passive PoE power supply, which can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible. |
| Easy Management with the Omada App |
| Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet. |
| HARDWARE FEATURES | |
| Interface | Gigabit Ethernet (RJ-45) Port×1 (Support IEEE802.3af PoE and Passive PoE) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE |
| 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) | |
| Power Consumption | EU: 10.5 W |
| US: 12.6 W | |
| Dimensions ( W x D x H ) | 8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm) |
| Antenna Type | 3 Internal Omni |
| 2.4 GHz: 4 dBi | |
| 5 GHz: 5 dBi | |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz:Up to 867 Mbps |
| 2.4 GHz:Up to 450 Mbps | |
| Wireless Functions | Multiple SSIDs (Up to 16 SSIDs, 8 for each band) |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control (Adjust Transmit Power on dBm) | |
| QoS(WMM) | |
| Seamless Roaming* | |
| Omada Mesh* | |
| Band Steering | |
| Load Balance | |
| MU-MIMO | |
| Airtime Fairness | |
| Beamforming | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | Captive Portal Authentication* |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Rogue AP Detection | |
| 802.1X Support | |
| Transmission Power | CE: |
| ≤20 dBm(2.4 GHz, EIRP) | |
| ≤23 dBm(5 GHz, EIRP) | |
| FCC: | |
| ≤24 dBm(2.4 GHz) | |
| ≤22 dBm(5 GHz) | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Hardware Controller OC300 |
| Omada Hardware Controller OC200 | |
| Omada Software Controller | |
| Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20) | |
| Cloud Access | Yes, through |
| OC300 | |
| OC200 | |
| Omada Software Controller | |
| Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20) | |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP225 V3.0, V4.0 and above, and is not supported by EAP225 V3.20) |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225 |
| Passive PoE Adapter | |
| Power Cord | |
| Mounting Kits | |
| Installation Guide | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) |
| Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
