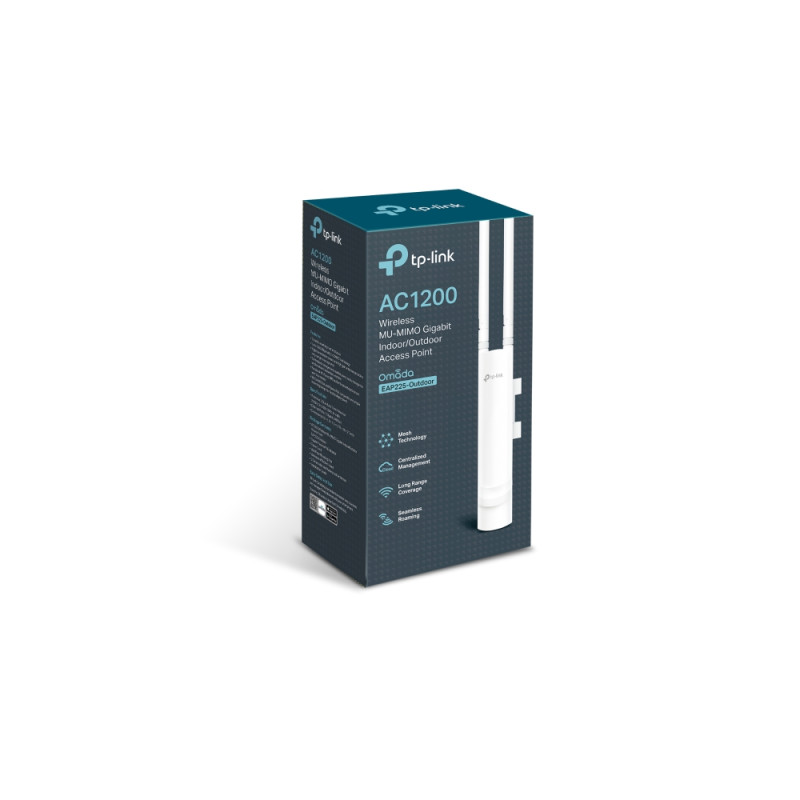

TP-link EAP225-Outdoor AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
10039
TP-Link
New product
- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200Mbps with 2×2 MIMO technology
- Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations
- High transmission power and high gain antennas provide a long-range coverage area
More info
| Superior Wi-Fi Performance and Long-Range Coverage |
| A dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior Wi-Fi performance and long-range coverage over 2.4GHz and 5GHz wireless bands. |
| Seamless Roaming |
| 802.11k and 802.11v help client select access point automatically with the best signal to facilitate seamless transitions when move. This allows streaming communication like VoIP and video conferences uninterrupted. |
| Specially Designed Weatherproof Enclosure for Outdoor Environment |
| Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against the harsh outdoor condition. |
| Excellent Hardware Designs |
| With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors. |
| Detachable Antennas |
| EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands. |
| Easy Management with the Omada App |
| Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet. |
| HARDWARE FEATURES | |
| Interface | 1x Gigabit Ethernet RJ-45 port |
| Button | Reset |
| Power Supply | 802.3af PoE and 24 Passive PoE(PoE injector included) |
| Power Consumption | 10.5W |
| Dimensions ( W x D x H ) | 8.5 × 1.8 × 1.1in. |
| (215 × 46 × 27 mm) | |
| Antenna | 2.4GHz: 2 × 3dBi |
| 5GHz: 2 × 4dBi | |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole/Wall mount (mounting kit included) |
| WIRELESS FEATURES | |
| Wireless Client Capacity | 220+ |
| Concurrent Clients | 220+ |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) |
| 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) | |
| 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b: 1, 5.5, 11Mbps | |
| 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| Wireless Functions | Multiple SSIDs（Up to 16 SSIDs, 8 for each band） |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control （Adjust Transmit Power on dBm） | |
| QoS(WMM) | |
| MU-MIMO | |
| Airtime Fairness | |
| Beamforming | |
| Band Steering | |
| Load Balance | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Rogue AP Detection | |
| 802.1X Support | |
| Transmission Power | • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP) |
| • FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz) | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) | |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Omada Controller Software | Yes |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
| Certification | FCC |
| RoHS | |
| Package Contents | AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point |
| Passive PoE Injector | |
| Power Cord | |
| Mounting Kits | |
| Installation Guide | |
| Waterproof Rubber Insert | |
| Waterproof Antenna | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: -30℃~70℃ (-22℉~158℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
