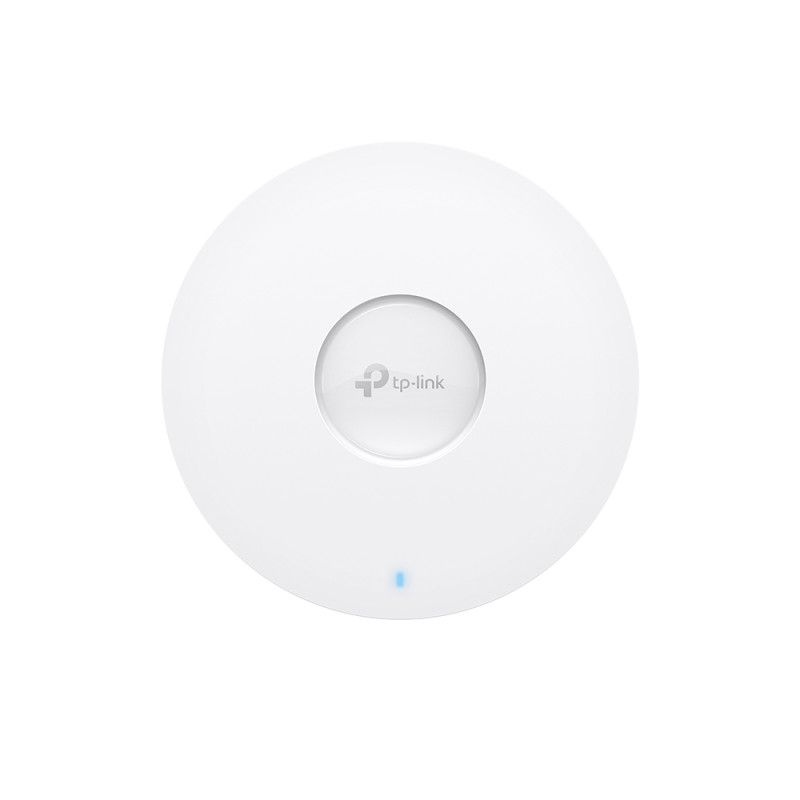

TP-link EAP610 AX1800 Ceiling Mount WiFi 6 Access Point
10041
TP-Link
New product
- Ultra-Fast WiFi 6 Speeds
- High-Efficiency WiFi 6
- PoE+ Powered
- Ultra-Slim Design
- Secure Guest Network
More info
| Superior WiFi 6 Speeds |
| Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5. Every application feels more fluid with drastically improved Wi-Fi speeds. |
| Seamless Integration into Omada SDN |
| The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface. |
| Auto Channel Selection and Power Adjustment to Optimize Overall Performance |
| Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network. |
| Easy Deployment & Higher Performance by Omada Mesh |
| With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas. |
| Optimized Network Performance |
| Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted. |
| Always Stay Smooth with Fast Roaming |
| Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal. |
| Ultra-Slim Design Brings More Agility |
| Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP610 perfectly blend into any modern office, hotel, classroom, or café. |
| HARDWARE FEATURES | |
| Interface | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE) |
| Button | Reset |
| Power Supply | 802.3at PoE |
| 48 V Passive PoE | |
| 12 V / 1.5 A DC | |
| Power Consumption | EU: 13.7 W (For PoE); 12.3 W (for DC) |
| US: 14.2 W (For PoE); 12.8 W (for DC) | |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type | Internal Omni Antenna |
| 2.4 GHz: 2× 4 dBi | |
| 5 GHz: 2× 5 dBi | |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Junction Box Mounting | |
| WIRELESS FEATURES | |
| Wireless Client Capacity | 250+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 1201 Mbps |
| 2.4 GHz: Up to 574 Mbps | |
| Wireless Functions | 1024-QAM |
| 4× Longer OFDM Symbol | |
| OFDMA | |
| Multiple SSIDs (Up to 16 SSIDs, 8 for each band) | |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control (Adjust Transmit Power on dBm) | |
| QoS(WMM) | |
| MU-MIMO | |
| Seamless Roaming | |
| Omada Mesh | |
| Band Steering | |
| Load Balance | |
| Airtime Fairness | |
| Beamforming | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | Captive Portal Authentication§ |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Rogue AP Detection | |
| 802.1X Support | |
| WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | CE: |
| <20 dBm(2.4 GHz, EIRP) | |
| <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) | |
| FCC: | |
| <25 dBm (2.4 GHz) | |
| <25 dBm (5 GHz) | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller |
| Omada Hardware Controller (OC300) | |
| Omada Hardware Controller (OC200) | |
| Omada Software Controller | |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP610 |
| Power Adapter | |
| Ceiling/ Wall Mounting Kits | |
| Installation Guide | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) |
| Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
