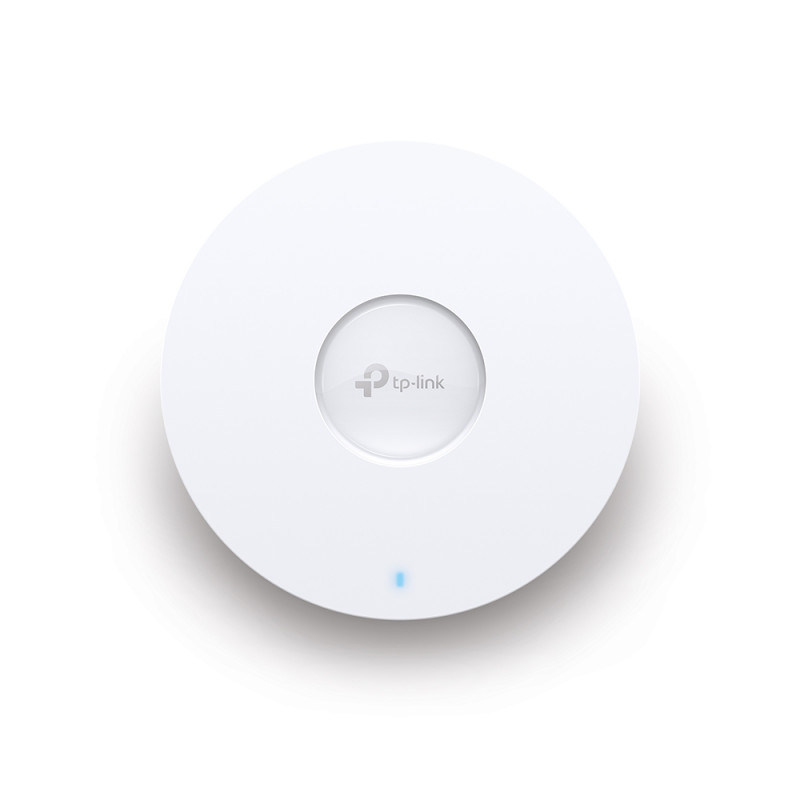

TP-link EAP670 AX5400 Ceiling Mount WiFi 6 Access Point
10045
TP-Link
New product
- Blazing-Fast WiFi 6 Speeds
- High-Efficiency WiFi 6
- Centralized Cloud Management
- 160 MHz Channel
- PoE+ Powered
More info
| HARDWARE FEATURES | ||
| Interface | 1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) | |
| Button | Reset | |
| Power Supply | 802.3at PoE | |
| 12 V / 1.5 A DC | ||
| Power Consumption | EU: 18.1 W | |
| US: 19.8 W | ||
| Dimensions ( W x D x H ) | 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm) | |
| Antenna Type | Internal Omni | |
| 2.4 GHz: 2× 4 dBi | ||
| 5 GHz: 4× 5 dBi | ||
| Mounting | Ceiling /Wall Mounting (Kits included) | |
| WIRELESS FEATURES | ||
| Wireless Client Capacity | 250+ | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a | |
| Frequency | 2.4 GHz and 5 GHz | |
| Signal Rate | 5 GHz: Up to 4804 Mbps | |
| 2.4 GHz: Up to 574 Mbps | ||
|
1024-QAM | |
| 4× Longer OFDM Symbol | ||
| OFDMA | ||
| Multiple SSIDs (Up to 16 SSIDs, 8 for each band) | ||
| Enable/Disable Wireless Radio | ||
| Automatic Channel Assignment | ||
| Transmit Power Control (Adjust Transmit Power on dBm) | ||
| QoS(WMM) | ||
| MU-MIMO | ||
| HE160 (160 MHz Bandwidth)‡ | ||
| Seamless Roaming | ||
| Omada Mesh | ||
| Band Steering | ||
| Load Balance | ||
| Airtime Fairness | ||
| Beamforming | ||
| Rate Limit | ||
| Reboot Schedule | ||
| Wireless Schedule | ||
| Wireless Statistics based on SSID/AP/Client | ||
| Wireless Security | Captive Portal Authentication§ | |
| Access Control | ||
| Wireless Mac Address Filtering | ||
| Wireless Isolation Between Clients | ||
| SSID to VLAN Mapping | ||
| Rogue AP Detection | ||
| 802.1X Support | ||
| WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | ||
| Transmission Power | CE: | |
| <20 dBm(2.4 GHz, EIRP) | ||
| <23 dBm(5 GHz, , band1 & band2, EIRP) | ||
| <30 dBm(5 GHz, , band3, EIRP) | ||
| FCC: | ||
| <25 dBm (2.4 GHz) | ||
| <28 dBm (5 GHz) | ||
| MANAGEMENT | ||
| Omada App | Yes | |
| Centralized Management | Omada Hardware Controller (OC300) | |
| Omada Hardware Controller (OC200) | ||
| Omada Software Controller | ||
| Omada Cloud-Based Controller | ||
| Cloud Access | Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller) | |
| Email Alerts | Yes | |
| LED ON/OFF Control | Yes | |
| Management MAC Access Control | Yes | |
| SNMP | v1, v2c, v3 | |
| System Logging Local/Remote Syslog | Local/Remote Syslog | |
| SSH | Yes | |
| Web-based Management | HTTP/HTTPS | |
| L3 Management | Yes | |
| Multi-site Management | Yes | |
| Management VLAN | Yes | |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. | |
| OTHERS | ||
| Certification | CE, FCC, RoHS | |
| Package Contents | EAP670 | |
| Power Adapter | ||
| Ceiling/Wall Mounting Kits | ||
| Installation Guide | ||
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux | |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) | |
| Storage Temperature: -40–70 ℃ (-40–158 ℉) | ||
| Operating Humidity: 10–90% RH non-condensing | ||
| Storage Humidity: 5–90% RH non-condensing | ||
