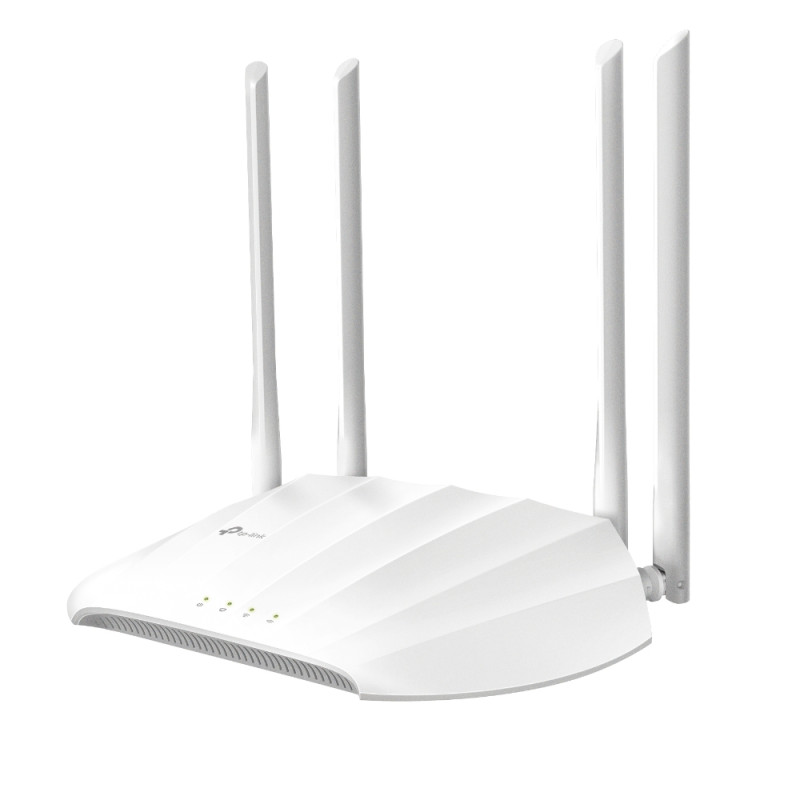

TP-link TL-WA1201 AC1200 Wireless Access Point
10046
TP-Link
New product
- AC1200 Dual-Band Wi-Fi
- Flexible Deployment
- Multiple Modes
- MU-MIMO Technology
- Boosted Coverage
- Captive Portal
More info
| HARDWARE FEATURES | |
| Interface | 1× 10/100/1000 Mbps Ethernet Port |
| (Supports Passive PoE) | |
| Button | Power On/Off Button, WPS Button, Reset Button |
| External Power Supply | 12V/1.5A |
| Wireless Standards | IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz |
| Dimensions ( W x D x H ) | 8.9 × 5.7 × 1.5 in |
| (225×145.5×37 mm) | |
| Antenna | 4 Fixed High Performance Antennas |
| WIRELESS FEATURES | |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | Version1/2: 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz |
| Version3: 867 Mbps at 5 GHz, 400 Mbps at 2.4 GHz | |
| Reception Sensitivity | 5 GHz: |
| 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm | |
| 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm | |
| 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm | |
| 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm | |
| 2.4 GHz: | |
| 11g 54Mbps: -78 dBm | |
| 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm | |
| 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm | |
| Wireless Modes | Access Point, Range Extender, Client, Multi-SSID |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control |
| Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
| DHCP | Server, DHCP Client List |
| Quality of Service | WMM |
| Advanced Features | Captive Portal |
| Transmission Power | CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz) |
| FCC: <30dBm(2.4GHz&5GHz) | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | Wireless Access Point TL-WA1201 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
| PoE Power Injector | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, |
| 10, MAC OS, NetWare, UNIX or Linux | |
| Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other | |
| Java-enabled browser | |
| Environment | Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F) |
| Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
| Protocol Support | IPv4, IPv6 |
