TL-WA1801 AX1800 Gigabit Wi-Fi 6 Access Point
10048
TP-Link
New product
- 300 Mbps wireless speed ideal for smooth HD video, voice streaming, and online gaming
- Supports multiple operation modes: Access Point, Multi-SSID, Client, and Range Extender modes
- Protects your home network with WPA2 encryption and makes quick connection with the push of a button
- Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector
More info
| What This Product Does |
| The TP-LINK Wireless N Access Point TL-WA801N is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet-enabled devices such as game consoles, digital media adapters, printers, or network-attached storage devices to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or any other applications that you may wish to use. |
| Wireless N - Speed & Range |
| Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not! |
| Multiple Operating Modes - Easy to Build WLAN |
| Supports multiple operation modes (Access Point, Multi-SSID, Client, Range Extender) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their APs. Multiple operating modes also help you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone. |
| HARDWARE FEATURES | |
| Interface | 1× 10/100 M Ethernet Port(RJ45) |
| Support Passive PoE | |
| Button | Power On/Off Button, WPS Button, Reset Button |
| External Power Supply | 9VDC / 0.6A |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 7.1 × 5.1 × 1.4 in (181.6 × 129.5 × 36.2 mm) |
| Antenna | 2 Fixed Omni-Directional Antennas |
| WIRELESS FEATURES | |
| Frequency | 2.4 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz |
| Reception Sensitivity | 11g 6Mbps: -90dBm |
| 11g 54Mbps: -77dBm | |
| 11n HT20 MC7: -73dBm | |
| 11n HT40 MC7: -70dBm | |
| Wireless Modes | AP Mode |
| Multi-SSID Mode | |
| Client Mode | |
| Range Extender Mode | |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Short GI, AP |
| Isolation, Wireless Statistics, Throughput Monitor | |
| Wireless Security | WEP, WPA/WPA2, WPA/WPA2-PSK encryptions |
| Quality of Service | WMM |
| Management Features | SNMP |
| Advanced Features | Up to 30 meters Passive PoE is supported |
| Transmission Power | CE: <15dBm; FCC: <20dBm |
| OTHERS | |
| Certification | CE, FCC, RoHS |

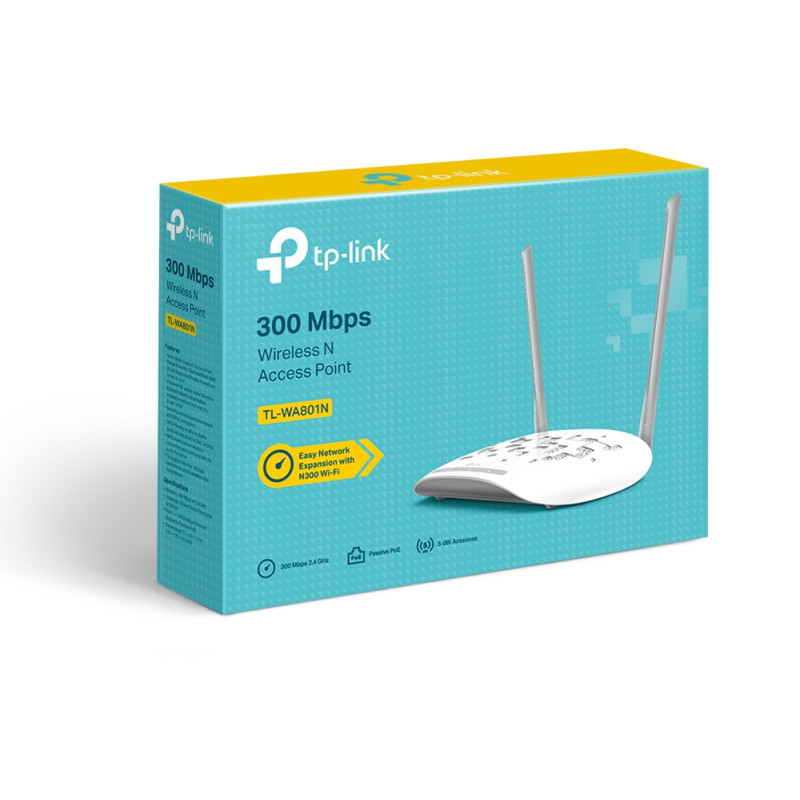

| Package Content | Wireless Access Point TL-WA801N |
| Power Adapter | |
| Passive PoE Power Injector | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
| System Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, |
| NetWare, UNIX or Linux | |
| Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other | |
| Java-enabled browser | |
| Cable or DSL Modem | |
| Subscription with an Internet Service Provider (for Internet access) | |
| Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) |
| Storage Temperature: -40°C~70°C (-40°F ~158°F) | |
| Operating Humidity: 10%~90% RH | |
| Storage Humidity: 5%~90% RH | |
