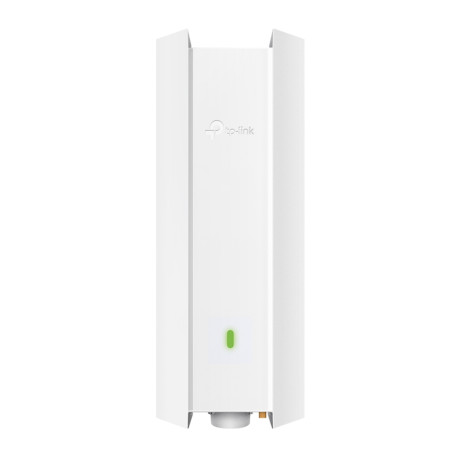

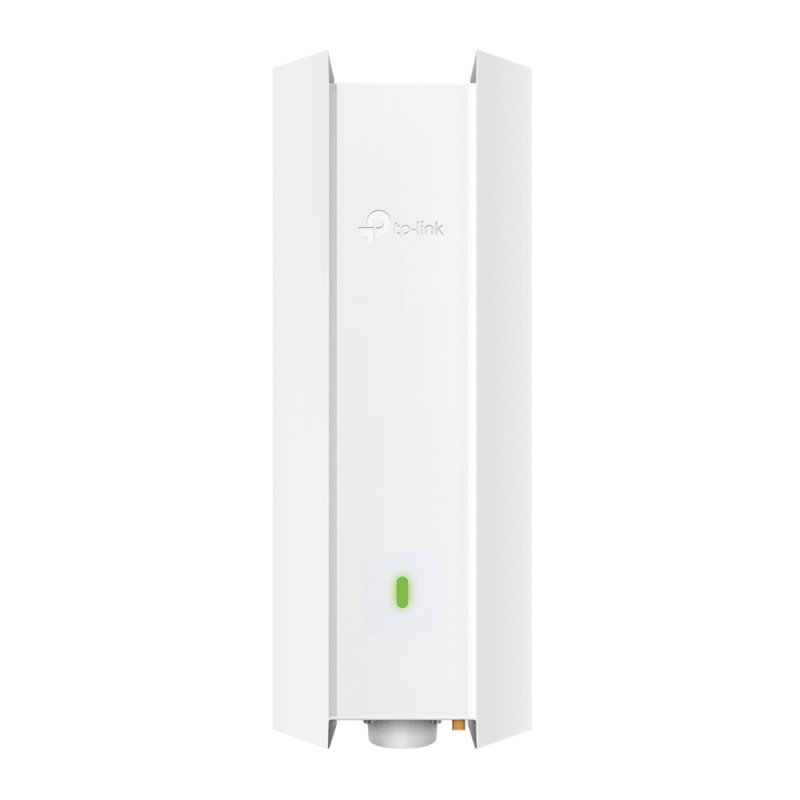

TP-link EAP610-Outdoor AX1800 Indoor/Outdoor WiFi 6 Access Point
10049
TP-Link
New product
- Superior WiFi 6 Speeds
- Higher Network Efficiency
- Long-Range Coverage
- Stay Smooth with Fast Roaming
More info
| Dual-Band WiFi 6 Connectivity |
| Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps, providing higher data rates on both 5 GHz and 2.4 GHz bands for demanding multi-user scenarios, such as outdoor swimming pools, cafés, and amusement parks. |
| Long-Range Coverage |
| Professional antennas equipped with high-power amplifiers utilize WiFi 6 technology to provide strong and expansive wireless coverage to various outdoor environments. |
| Connect Numerous Devices |
| OFDMA and MU-MIMO greatly improve multi-user efficiency to provide simultaneous connections for dozens of clients in large open areas. |
| Seamless Integration into Omada SDN Platform |
| The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. |
| Always Stay Smooth with Fast Roaming |
| Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal |
|
Multiple PoE Options for Easy Installation
|
| The AP supports both 802.3at PoE+ and Passive PoE power supply. It can be either powered by a PoE switch or the provided PoE adapter for convenient deployment. |
| HARDWARE FEATURES | |
| Interface | 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE) |
| Button | Reset |
| Power Supply | 802.3at PoE |
| 48V/0.5A Passive PoE (PoE Adapter Included) | |
| Power Consumption | 12.5 W for PoE |
| 10 W for DC | |
| Dimensions ( W x D x H ) | 280.4×106.5×56.8 mm (without antenna & mounting kit) |
| Antenna | 2.4 GHz: 2× 4 dBi |
| 5 GHz: 2× 5 dBi | |
| Weatherproof Enclosure | IP67 |
| Mounting | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Wireless Client Capacity | 250+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) |
| 802.11ac: 5G:6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78 Mbps to 300 Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) | |
| 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) | |
| 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b: 1, 2, 5.5, 11 Mbps | |
| 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| Transmit Power | CE: <15 dBm (2.4 GHz, EIRP), <22 dBm(5 GHz, EIRP) |
| FCC: <22 dBm (2.4 GHz), <22 dBm(5 GHz) | |
| Wireless Functions | 1024-QAM |
| 4× Longer OFDM Symbol | |
| OFDMA | |
| Multiple SSIDs (Up to 16 SSIDs, 8 for each band) | |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control (Adjust Transmit Power on dBm) | |
| QoS (WMM) | |
| MU-MIMO | |
| Omada Mesh | |
| Seamless Roaming | |
| Band Steering | |
| Load Balance | |
| Airtime Fairness | |
| Beamforming | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Rogue AP Detection | |
| 802.1X Support | |
| WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller |
| Omada Hardware Controller (OC300) | |
| Omada Hardware Controller (OC200) | |
| Omada Software Controller | |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | Access Point EAP610-Outdoor |
| Passive PoE Adapter | |
| Power Cord | |
| Mounting Kits | |
| Waterproof Kits | |
| Waterproof Antenna | |
| Installation Guide | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: -30–70 ℃ (-22–158 ℉) |
| Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
