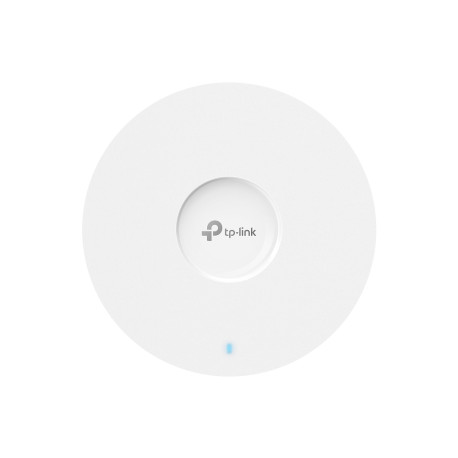

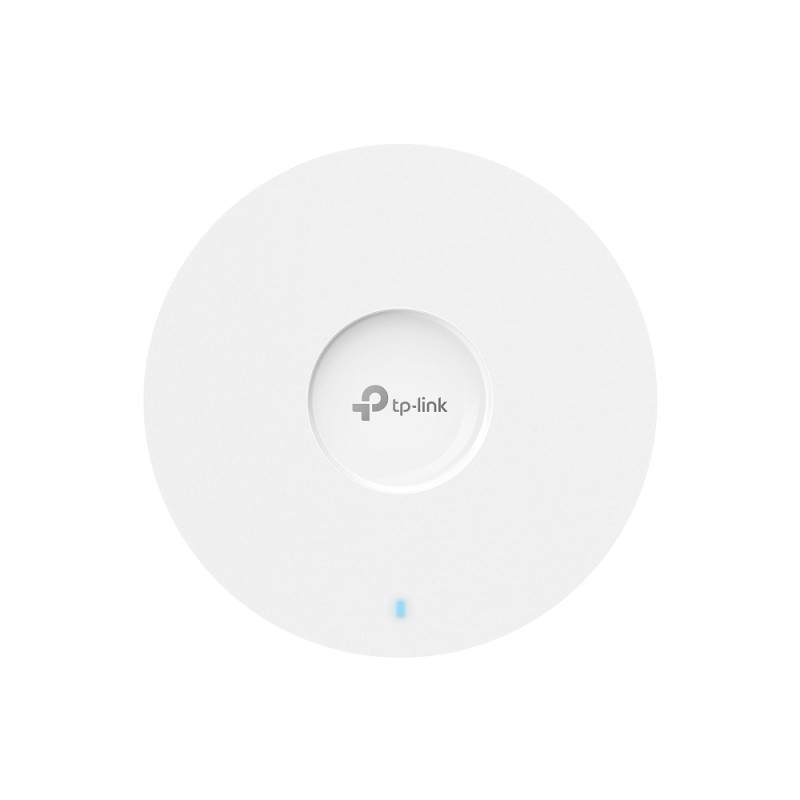

TP-link EAP653 UR AX3000 Ceiling Mount WiFi 6 Access Point
10642
TP-Link
New product
- Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz
- Ultra-range wireless coverage by more antennas with higher transmit power
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
More info
| HARDWARE FEATURES | |
| Interface | 1× Gigabit PoE+ Port |
| Button | Reset |
| Power Supply | 802.3at PoE |
| 12V DC / 1.5 A (Power Adapter IS NOT included) | |
| 48V Passive PoE | |
| Max. Power Consumption | EU: 14.2 W |
| US: 15.5 W | |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna | Internal Omni |
| 2.4 GHz: 2× 5 dBi | |
| 5 GHz: 3× 5 dBi | |
| Mounting | Ceiling /Wall Mounting (Kits included) |
| Junction Box Mounting | |
|
WIRELESS FEATURES
|
|
| Coverage | 185 ㎡ (2000 ft²) |
| Concurrent Clients | 250+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: Up to 2402 Mbps |
| 2.4 GHz: Up to 574 Mbps | |
| Wireless Functions | 1024-QAM |
| 4× Longer OFDM Symbol | |
| OFDMA | |
| Multiple SSIDs (Up to 16 SSIDs, 8 for each band) | |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control (Adjust Transmit Power on dBm) | |
| QoS(WMM) | |
| MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL) | |
| HE160 (160 MHz Bandwidth)‡ | |
| Seamless Roaming(802.11k/v/r)§ | |
| Omada Mesh | |
| Band Steering | |
| Load Balance | |
| Airtime Fairness | |
| Beamforming | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Rogue AP Detection | |
| 802.1X Support | |
| WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | CE: |
| <20 dBm(2.4 GHz, EIRP) | |
| <23 dBm(5 GHz, Band1 & Band2, EIRP) | |
| <29 dBm(5 GHz, Band3, EIRP) | |
| FCC: | |
| <26 dBm (2.4 GHz) | |
| <27 dBm (5 GHz) | |
|
Management Features
|
|
| Omada App | Yes |
| Centralized Management | Omada Hardware Controller (OC300) |
| Omada Hardware Controller (OC200) | |
| Omada Software Controller | |
| Omada Cloud-Based Controller | |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
|
OTHERS
|
|
| Certification | CE, FCC, RoHS |
| Package Content | EAP653 UR |
| Ceiling/Wall Mounting Kit | |
| Installation Guide | |
| Note: DC adapter is not included in the package, and is sold separately. | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) |
| Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
