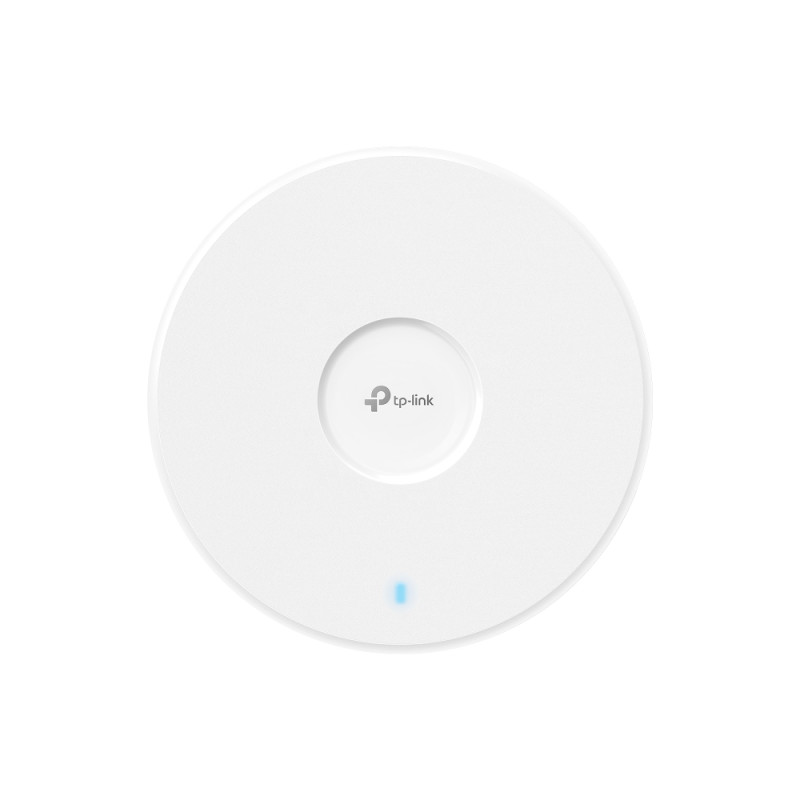

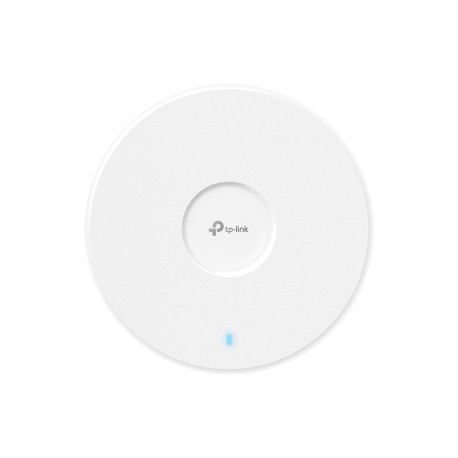

TP-link EAP723 BE3600 Ceiling Mount Wi-Fi 7 Access Point
10644
TP-Link
New product
- BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
- 1× 2.5G port unlocks the full potential of Wi-Fi 7
- 160 MHz bandwidth enables many more simultaneous transmissions.
More info
| HARDWARE FEATURES | |
| Interface | 1× 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included) |
| Power Consumption | 18.6 W (For PoE); |
| 16.0 W (For DC) | |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Antenna Type | 2.4 GHz: 2× 3.0 dBi |
| 5 GHz: 2× 3.0 dBi | |
| Mounting | Ceiling / Wall Mounting (Kits Included) |
|
WIRELESS FEATURES
|
|
| Coverage | 140 (1500 ft²) |
| Wireless Client Capacity | 250+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) |
| Wireless Functions | 4K-QAM |
| Seamless Roaming | |
| MU-MIMO | |
| EHT160 | |
| Mesh | |
| OFDMA | |
| Load Balance | |
| Band Steering | |
| Beamforming | |
| Airtime Fairness | |
| Multiple SSIDS:16(8 on each band) | |
| Wireless Schedule | |
| Reboot Schedule | |
| QoS(WMM) | |
| Rate Limit | |
| Static IP/Dynamic IP | |
| RADIUS Accounting | |
| MAC Authentication | |
| Wireless Security | Captive Portal Authentication△ |
| Access Control | |
| Maximum number of MAC Filter: 4,000 | |
| Wireless Isolation Between Clients | |
| VLAN | |
| Rogue AP Detection | |
| WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | < 20 dBm (2.4 GHz, EIRP) |
| < 23 dBm (5 GHz, band 1&band 2, EIRP) | |
| < 28 dBm (5 GHz, band 3, EIRP) | |
|
MANAGEMENT
|
|
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller |
| Omada Hardware Controller | |
| Omada Software Controller | |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
|
OTHERS
|
|
| Certification | CE, FCC, RoHS, IC |
| Package Contents | EAP723 |
| Installation Guide | |
| Ceiling/Wall Mounting Kit | |
| Environment | Operating Temperature: 0 °C–40 °C (32 °F–104 °F); |
| Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); | |
| Operating Humidity: 10%–90% non-condensing; | |
| Storage Humidity: 5%–90% non-condensing; | |
