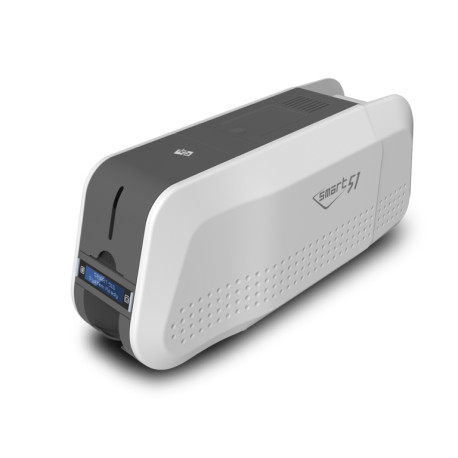

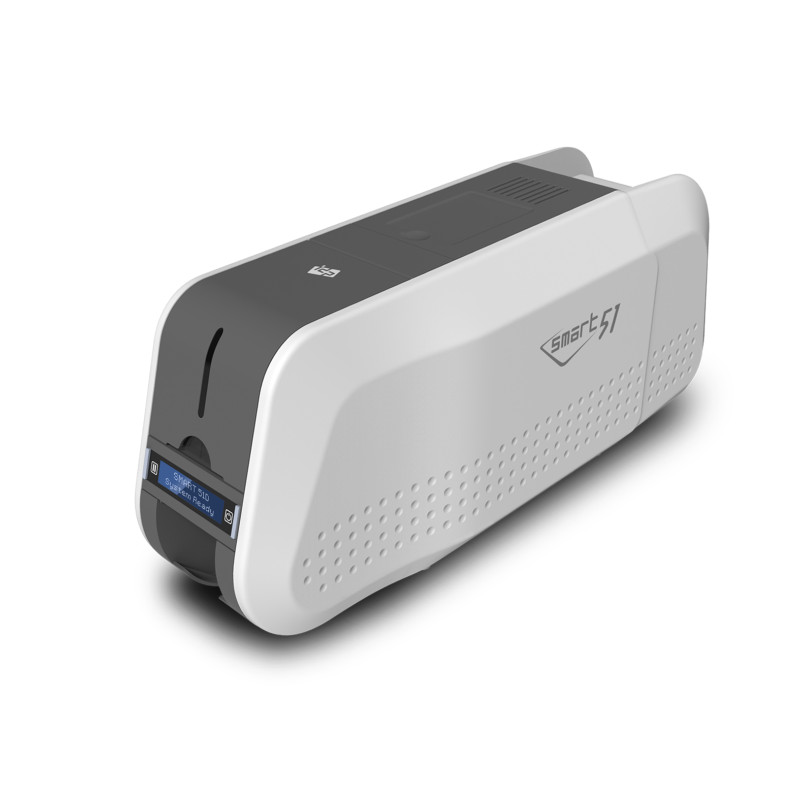

SMART-51D Dual-Sided Thermal ID Card Printer

10627

SMART

New product

  • Colour & Mono Single & Dual Sided Printing
  • Print Speed: Max. 22 sec/card (YMCKOK)
  • 300DPI
  • Edge-to-Edge Printing
  • 2 Lines LCD with LED Buttons for Front Operation
  • Support of Transparent Cards
  • Low Cost Security with UV Printing

More details

Send to a friend by WhatsApp

₨. 354,000.00

  • 1 Year Warranty

Add to wishlist

More info

Printing
Print Mode Dual Sided
Print Type Direct Dye-Sublimation
Print Area Edge to Edge
Resolution 300 dpi (Colour & Mono); 600/1200 dpi (Mono only)
Dual Sided Printing Yes
Card Handling
Card Feeding Automatic
Card Size ISO CR80 or ISO CR79 (Factory Option)
Card Thickness 0.38 mm (15 mil) ~ 1.0 mm (40 mil)
Card Type PVC, PET, Composite PVC
Print Speed
Monochrome 5 sec/card (720 cards/hour)
YMCKO Max. 17 sec/card (212 cards/hour)
YMCKOK Max. 22 sec/card (164 cards/hour)
Capacity
Input Card Hopper 100 Cards / 200 Cards (with cover open)
Output Card Hopper Front: 40 Cards / Rear: 100 Cards (Optional Rear-side Stacker)
System
Memory 64MB RAM
Interface 2 Line LCD / 2 LED Buttons
Supported Platforms Windows 7/8/10, macOS, Linux
Communication USB, Ethernet (Option), WiFi (Option)
Power Supply Free Voltage (AC100/220V, 50~60Hz)
Power Consumption 48W
Temperature Range 15~35℃
Humidity Range 35~70%
Dimensions & Weight
Dimensions (mm) 165 (W) x 498 (L) x 210 (H)
Dimensions (inches) 6.5 (W) x 19.6 (L) x 8.3 (H)
Weight 5.2 kg / 11.5 lbs
Security
Physical Lock Input Hopper & Ribbon Lock (Optional), Kensington Lock (Optional)
Encoding Options
Magnetic Stripe ISO 7811 (Track I, II, III R/W, HiCo/LoCo), JIS II
Contact Chip ISO 7816 A/B/C, 1/2/3/4 Microprocessor Card
Contactless ISO 14443 (Type A/B), MIFARE, DESFIRE, iCLASS, ISO 18092 (NFC), Felica
Certifications CB, CE, FCC, KC, CCC
