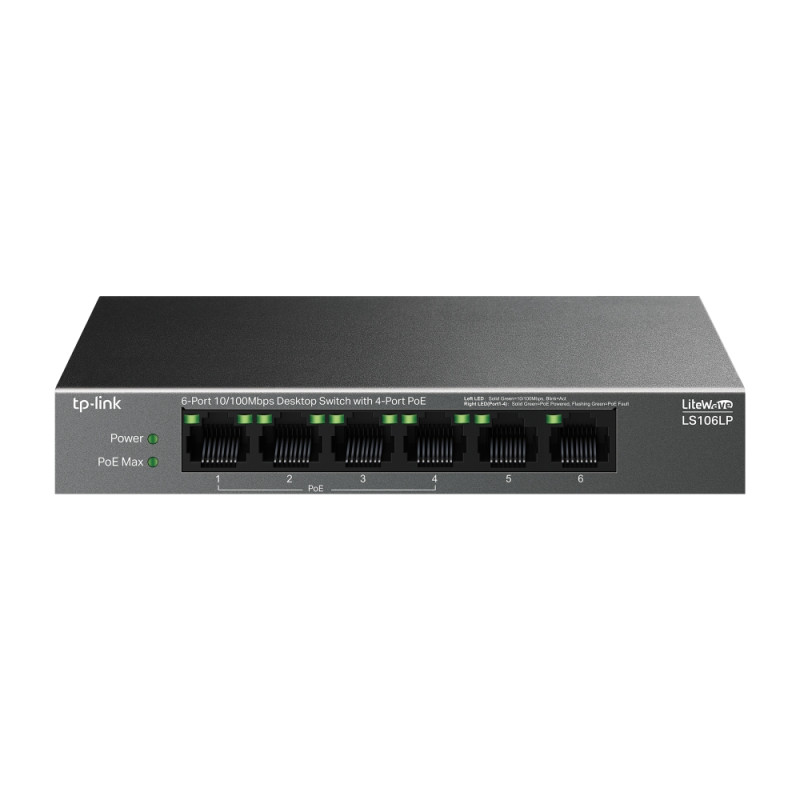

TP Link TL-LS106LP 6-Port 10/100Mbps Desktop Switch with 4-Port PoE

10596

TP-Link

New product

  • 41 W PoE Budget
  • Up to 250 m PoE Transmission
  • PoE Auto Recovery
  • Plug and Play
  • Silent Operation
  • Reliable Hardware Design

More details

Send to a friend by WhatsApp

₨. 7,400.00

  • 1 Year Warranty

Add to wishlist

More info

HARDWARE FEATURES
Interface  6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports)
 AUTO Negotiation
 AUTO MDI/MDIX
Network Media  10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Installation  Desktop
 Wall Mounting
Power Supply External Power Adapter (Output: 53.5VDC / 0.81A)
PoE Ports (RJ45)  Standard: 802.3 af compliant
 PoE Ports: Ports 1–4, up to 15.4 W PoE output per port
 Power Supply: 41 W
LED Indicator  Power
 Link/Act
 PoE Status
 PoE MAX
Dimensions ( W x D x H ) 6.2×4.0×1.0 in (158×101×25 mm)
Max Power Consumption  2.53 W (220 V/50 Hz no PD connected)
 47.76 W (220 V/50 Hz with 41 W PD connected)
Max Heat Dissipation  8.61 BTU/h (220 V/50 Hz no PD connected)
 162.38 BTU/h (220 V/50 Hz with 41 W PD connected)
PERFORMANCE
Switching Capacity 1.2 Gbps
Packet Forwarding Rate 0.8928 Mpps
MAC Address Table 2K
Jumbo Frame 2 KB
SOFTWARE FEATURES
Advanced Features  Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
 PoE Auto Recovery Button (Ports 1-4)
 Compatible With IEEE 802.3af Compliant PDs
 Mac Address Auto-Learning and Auto-Aging
 IEEE 802.3x Flow Control
 Green Technology
Transfer Method Store and Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents  LS106LP
 Power Adapter
 Installation Guide
Environment  Operating Temperature: 0–40 ℃ (32–104 ℉)
 Storage Temperature: -40–70 ℃ (-40–158 ℉)
 Operating Humidity: 10–90% RH non-condensing
 Storage Humidity: 5–90% RH non-condensing
