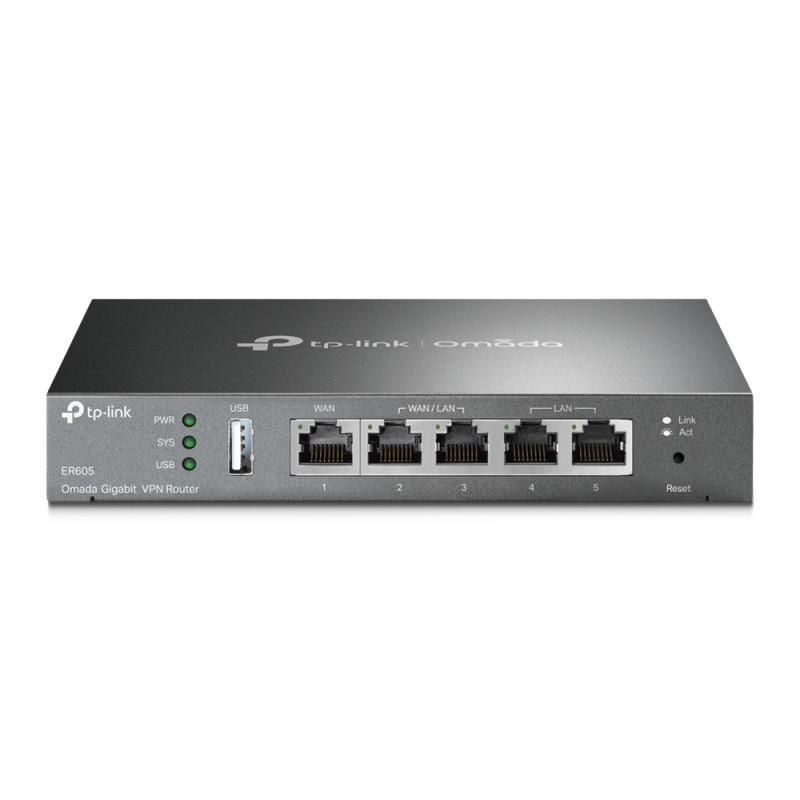

TP-link ER605 Omada Gigabit VPN Router
10020
TP-Link
New product
- Integrated into Omada SDN
- Centralized Management
- Five Gigabit Ports
- Up to 4 WAN Ports
- Highly Secure VPN
- Abundant Security Features
More info
| Omada SDN—The Smarter Cloud Solution for Business Networking |
| As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER605 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience. |
| Up to Three WAN Gigabit Ports & One USB WAN for Mobile Broadband |
| Two freely interchangeable ports allow the router to support up to three WAN ports for various Internet access requirements. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.Mobile broadband via 4G/3G modem by connecting to the USB port is also supported for WAN backup. |
| High-Security and High-Performance VPN |
| ER605 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment. It also secures and encrypts private site-to-site data communications traveling over the internet. This version improves VPN performance by 4–5 times thanks to the open line of communication with Omada's user base. |
>
| SECURITY | |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | WEB Group Filtering |
| URL Filtering | |
| Web Security | |
| ARP Inspection | Sending GARP Packets |
| ARP Scanning | |
| IP-MAC Binding | |
| Attack Defense | TCP/UDP/ICMP Flood Defense |
| Block TCP Scan (Stealth FIN/Xmas/Null) | |
| Block Ping from WAN | |
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q |
| TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP | |
| Interface | 1 Fixed Gigabit WAN Port |
| 1 Fixed Gigabit LAN Port | |
| 3 Changeable Gigabit WAN/LAN Ports | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) |
| EIA/TIA-568 100Ω STP (Max 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (Max 100m) | |
| EIA/TIA-568 100Ω STP (Max 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) | |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | External 9V/0.85A DC Adapter |
| Flash | SPI 16MB |
| DRAM | 128 MB |
| LED | PWR, SYS, WAN, LAN |
| Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop/Wall-mount |
| Max. Power Consumption | 7.94 W |
| PERFORMANCE | |
| DPI Throughput | TCP: 905 Mbps; |
| UDP: 788 Mbps | |
| WireGuard VPN Throughput | 123.4 Mbps |
| Concurrent Session | 25,000 |
| New Sessions /Second | 2,600 |
| NAT (Static IP) | Upload: 945.77 Mbps |
| Download: 945.56 Mbps | |
| Bi-Directional: 1808.29 Mbps | |
| NAT(DHCP) | Upload: 945.93 Mbps |
| Download: 945.43 Mbps | |
| Bi-Directional: 1808.11 Mbps | |
| NAT(PPPoE) | Upload: 940.44Mbps |
| Download: 940.52 Mbps | |
| Bi-Directional: 1804.27 Mbps | |
| NAT (L2TP) | Upload: 845.64 Mbps |
| Download: 802.65 Mbps | |
| Bi-Directional: 931.96 Mbps | |
| NAT (PPTP) | Upload: 771.66 Mbps |
| Download: 874.81 Mbps | |
| Bi-Directional: 999.54 Mbps | |
| 64 Byte Packet Forwarding Rate | Upload/Download: 1,402,238 pps |
| Bi-Directional: 1,681,548 pps | |
| IPsec VPN Throughput | 41.5 Mbps |
| OpenVPN | 21.70 Mbps |
| L2TP VPN Throughput | Unencrypted: 864.65 Mbps |
| Encrypted: 47.11 Mbps | |
| PPTP VPN Throughput | Unencrypted: 703.20 Mbps |
| Encrypted: 76.65 Mbps | |
| 66 Byte Packet Forwarding Rate | Upload/Download: 954.50 Mbps |
| Bi-Directional: 1130.00 Mbps | |
| 1,518 Byte Packet forwarding rate | Upload/Download: 997.50 Mbps |
| Bi-Directional: 1965.00 Mbps | |
| BASIC FUNCTIONS | |
| WAN Connection Type | Static/Dynamic IP |
| PPPoE | |
| PPTP | |
| L2TP | |
| MAC Clone | Modify WAN/LAN MAC Address |
| DHCP | DHCP Server/Client |
| DHCP Address Reservation | |
| Multi-net DHCP | |
| Multi-IP Interfaces | |
| IPv6 | Developing |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy |
| Advanced Features | |
| Access Control | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static Routing |
| Policy Routing | |
| Bandwidth Control | IP/Port-based Bandwidth Control |
| Guarantee & Limited Bandwidth | |
| Load Balance | Intelligent Load Balance |
| Application Optimized Routing | |
| Link Backup (Timing, Failover) | |
| Online Detection | |
| NAT | One-to-One NAT |
| Multi-Net NAT | |
| Virtual Server | |
| Port Triggering | |
| NAT-DMZ | |
| FTP/H.323/SIP/IPSec/PPTP ALG, UPnP | |
| Security | SPI Firewall |
| VPN Passthrough | |
| FTP/H.323/PPTP/SIP/IPsec ALG | |
| DoS Defence, Ping of Death | |
| Local Management | |
| Session Limit | IP-based Session Limit |
| VPN | |
| IPsec VPN | 20 IPsec VPN Tunnels |
| LAN-to-LAN, Client-to-LAN | |
| Main, Aggressive Negotiation Mode | |
| DES, 3DES, AES128, AES192, AES256 Encryption Algorithm | |
| IKEv1/v2 | |
| MD5, SHA1 Authentication Algorithm | |
| NAT Traversal (NAT-T) | |
| Dead Peer Detection (DPD) | |
| Perfect Forward Secrecy (PFS) | |
| *These functions require the use of Omada Hardware Controller, Software Controller, or Cloud-Based Controller | |
| PPTP VPN | PPTP VPN Server |
| 10 PPTP VPN Clients | |
| 16 Tunnels | |
| PPTP with MPPE Encryption | |
| L2TP VPN | L2TP VPN Server |
| 10 L2TP VPN Clients | |
| 16 Tunnels | |
| L2TP over IPSec | |
| OpenVPN | OpenVPN Server |
| 10 OpenVPN Clients | |
| 16 OpenVPN Tunnels | |
| Wire Guard VPN | 20 Tunnels |
| AUTHENTICATION | |
| Web Authentication | No Authentication |
| Simple Password | |
| Hotspot（Local User / Voucher / SMS / Radius） | |
| External Radius Sever | |
| External Portal Sever | |
| Management Features | |
| Omada App | Yes |
| Centralized Management | Omada Hardware Controller (OC300) |
| Omada Hardware Controller (OC200) | |
| Omada Software Controller | |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe) |
| Maintenance | Time Setting |
| Diagnostic | |
| Firmware Upgrade | |
| Factory Defaults/Reboot | |
| Backup&Restore | |
| System Log | |
| Remote Management | |
| Statistics | |
| Controller Settings | |
| SNMP | |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | Automatic Device Discovery |
| Intelligent Network Monitoring | |
| Abnormal Event Warnings | |
| Unified Configuration | |
| Reboot Schedule | |
| Captive Portal Configuration | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | Gigabti VPN Router ER605 |
| Power Adapter | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
| System Requirements | Microsoft® Windows® 10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉); |
| Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
