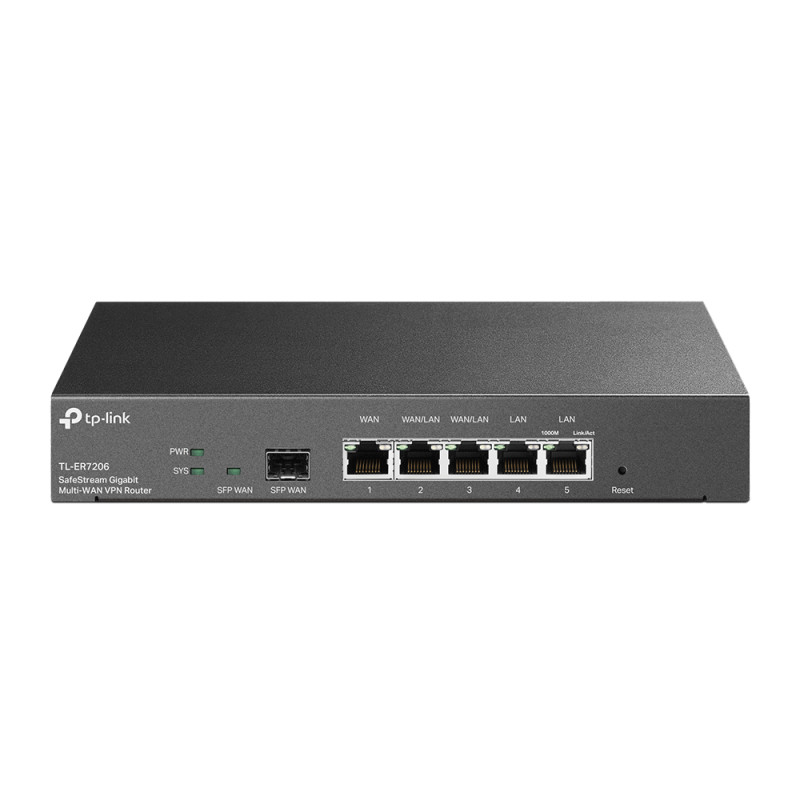

TP-link TL-ER7206 SafeStream Gigabit Multi-WAN VPN Router

10021

TP-Link

New product

  • Integrated into Omada SDN
  • Centralized Management
  • Gigabit Ports
  • Up to 4 WAN Ports
  • Highly Secure VPN
  • Abundant Security Features

More details

Send to a friend by WhatsApp

Contact Us for Best Price

  • 1 Year Warranty

Add to wishlist

More info

Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, TL-ER7206 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.
Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
One gigabit SFP WAN port, one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.
Highly Secure VPN
TL-ER7206 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 100× LAN-to-LAN IPSec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.
Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

HARDWARE FEATURES
Standards and Protocols  IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q
 TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
Interface  1 Fixed Gigabit SFP WAN Port
 1 Fixed Gigabit RJ45 WAN Port
 2 Fixed Gigabit RJ45 LAN Ports
 2 Changeable Gigabit RJ45 WAN/LAN Ports
Network Media  10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
 100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100Ω STP (Max 100m)
 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
Button Reset Button
Power Supply 100–240 V~50/60 Hz
Flash SPI 4MB + NAND 128MB
DRAM 512MB
LED PWR, SYS, SFP WAN, WAN (Speed, Link/Act), LAN (Speed, Link/Act)
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
PERFORMANCE
Concurrent Session 150,000
IPsec VPN Throughput 291.6 Mbps
BASIC FUNCTIONS
WAN Connection Type  Static/Dynamic IP
 PPPoE
 PPTP
 L2TP
MAC Clone Modify WAN/LAN MAC Address
DHCP  DHCP Server
 DHCP Address Reservation
 Multi-IP Interfaces
 Multi-Net DHCP
IPv6 Developing
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy
ADVANCED FUNCTIONS
ACL IP/Port/Protocol/Domain Name Filtering
Advanced Routing  Static Routing
 Policy Routing
Bandwidth Control  IP/Port-based Bandwidth Control
 Guarantee & Limited Bandwidth
Load Balance  Intelligent Load Balance
 Application Optimized Routing
 Link Backup (Timing, Failover)
 Online Detection
NAT  One-to-One NAT
 Multi-Net NAT
 Virtual Server
 Port Triggering
 NAT-DMZ
 FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
Security  SPI Firewall
 VPN Passthrough
 FTP/H.323/PPTP/SIP/IPsec ALG
 DoS Defence, Ping of Death
 Local Management
Session Limit IP-based Session Limit
VPN
IPsec VPN  100 IPSec VPN Tunnels
 LAN-to-LAN, Client-to-LAN
 Main, Aggressive Negotiation Mode
 DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
 IKEv1/v2
 MD5, SHA1 Authentication Algorithm
 NAT Traversal (NAT-T)
 Dead Peer Detection (DPD)
 Perfect Forward Secrecy (PFS)
PPTP VPN  PPTP VPN Server
 10 PPTP VPN Clients
 50 Tunnels
 PPTP with MPPE Encryption
L2TP VPN  L2TP VPN Server
 10 L2TP VPN Clients
 50 Tunnels
 L2TP over IPSec
OpenVPN  OpenVPN Server
 10 OpenVPN Clients
 50 OpenVPN Tunnels
SECURITY
Filtering WEB Group Filtering
URL Filtering
Web Security
ARP Inspection  Sending GARP Packets
 ARP Scanning
 IP-MAC Binding
Attack Defense  TCP/UDP/ICMP Flood Defense
 Block TCP Scan (Stealth FIN/Xmas/Null)
 Block Ping from WAN
Access Control Source/Destination IP Based Access Control
AUTHENTICATION
Web Authentication  No Authentication
 Simple Password
 Hotspot（Local User / Voucher / SMS / Radius）
 External Radius Sever
 External Portal Sever
 Facebook
MANAGEMENT
Omada App Yes
Centralized Management  Omada Cloud-Based Controller
 Omada Hardware Controller (OC300)
 Omada Hardware Controller (OC200)
 Omada Software Controller
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
Maintenance  Web Management Interface
 Remote Management
 Export & Import Configuration
 SNMP v1/v2c/v3
 Diagnostics (Ping & Traceroute)
 NTP Synchronize
 Syslog Support
Management Features  Automatic Device Discovery
 Intelligent Network Monitoring
 Abnormal Event Warnings
 Unified Configuration
 Reboot Schedule
 Captive Portal Configuration
 ZTP (Zero-Touch Provisioning)
OTHERS
Certification CE, FCC, RoHS
Package Contents  TL-ER7206
 Power Cord
 Quick Installation Guide
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Environment  Operating Temperature: 0–40 ℃ (32–104 ℉);
 Storage Temperature: -40–70 ℃ (-40–158 ℉)
 Operating Humidity: 10–90% RH non-condensing
 Storage Humidity: 5–90% RH non-condensing
