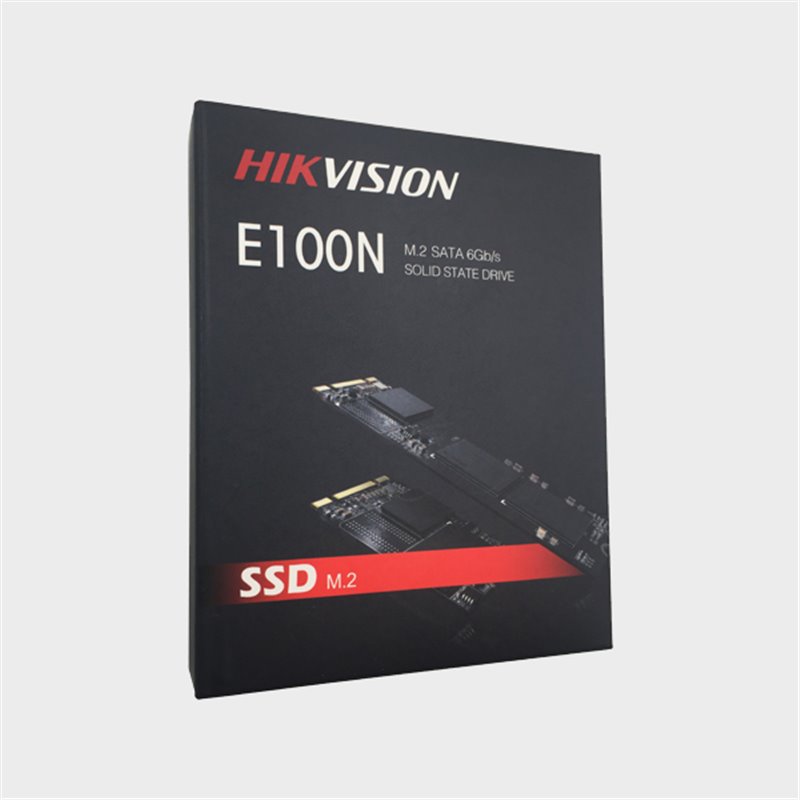

Hikvision E100N SSD M2 SATA
10173
HIKVISION
New product
HikVision E100N
High-speed read/write
Support M.2 interface and SATA III protocol and the read speed is up to 555MB/s.
- 3D NAND flash
- 3D NAND flash optimizes the capacity, performance and stability.
- Anti-vibration
- Use the electronic chip control to replace traditional mechanical structure and provide high data security.
- M.2 interface
- Easy to intergrade and install due to the light weight and small size.
More info
| Name | Consumer SSD | ||||
| Model | HS-SSD-E100N | ||||
| Capacity | 128GB | 256GB | 512GB | 1024GB | |
| Dimensions (mm) | 22*80 | 22*80 | 22*80 | 22*80 | |
| MAX. read speed (MB/s) | 530 | 545 | 550 | 555 | |
| MAX. write speed (MB/s) | 450 | 480 | 510 | 513 | |
| MAX. random 4K read speed (IOPS) | 39K | 87K | 90K | 92K | |
| MAX. random 4K write speed (IOPS) | 71K | 72K | 75K | 76K | |
| MAX. idle power consumption (W) | 0.055 | 0.055 | 0.055 | 0.055 | |
| MAX. read power consumption (W) | 2.25 | 2.25 | 2.25 | 2.25 | |
| MAX. write power consumption (W) | 2.51 | 2.51 | 2.51 | 2.51 | |
| Endurance (TBW) | 35 | 70 | 140 | 280 | |
| NAND flash memory | 3D TLC | ||||
| Interface | SATA III 6 Gb/s, SATA II 3 Gb/s M.2 (NGFF) |
||||
| Driver | ATA-8 ACS2 Serial ATA 2.6 |
||||
| Weight | ≤5.4g | ||||
| MTBF (hours) | 1500000 | ||||
| Operating temperature | 0℃ ~ 70℃ | ||||
| Operating humidity | 8% ~ 95% (no condensing) | ||||
| Warranty period | 2 years | ||||
