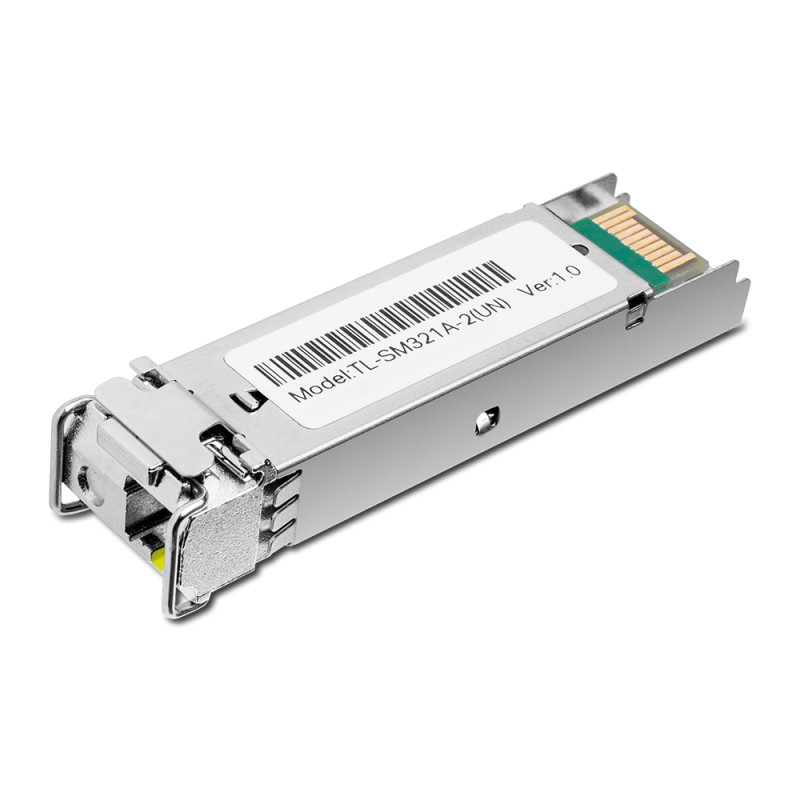

TP-link TL-SM321A-2 1000Base-BX WDM Bi-Directional SFP Module

10654

TP-Link

New product

  • Adopts the latest standard 1000Base-BX
  • Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
  • Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
  • Supports Digital Diagnostic Monitoring (DDM)

More details

Send to a friend by WhatsApp

₨. 5,600.00

  • 1 Year Warranty

Add to wishlist

More info

What This Product Does
TP-LINK´s TL-SM321A-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321A-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 μm SMF (Single-Mode Fiber). Also, TL-SM321A-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.TP-Link's TL-SM321A-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.

PACKAGE CONTENTS
Package Contents SFP Module TL-SM321A-2
Installation Guide
HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3z, TCP/IP
Wave Length TX: 1550 nm
RX: 1310 nm
Dimensions (W*D*H) 2.2*0.6*0.5 in (55.4*14.6*12.9 mm)
Power Supply 3.3 V
Safety & Emission FCC, CE
Cable Single-Mode Fiber
Fiber Type 9/125 μm Single-Mode
Max. Cable Length 2 KM
Data Rate 1.25 Gbps
Port Type LC Simplex
Environment Operating Temperature: 0–70 °C (32–158 °F)
Storage Temperature: -40–85 °C ( -40–185 °F)
Operating Humidity: 10–90% RH, Non-Condensing
Storage Humidity: 5–90% RH, Non-Condensing
