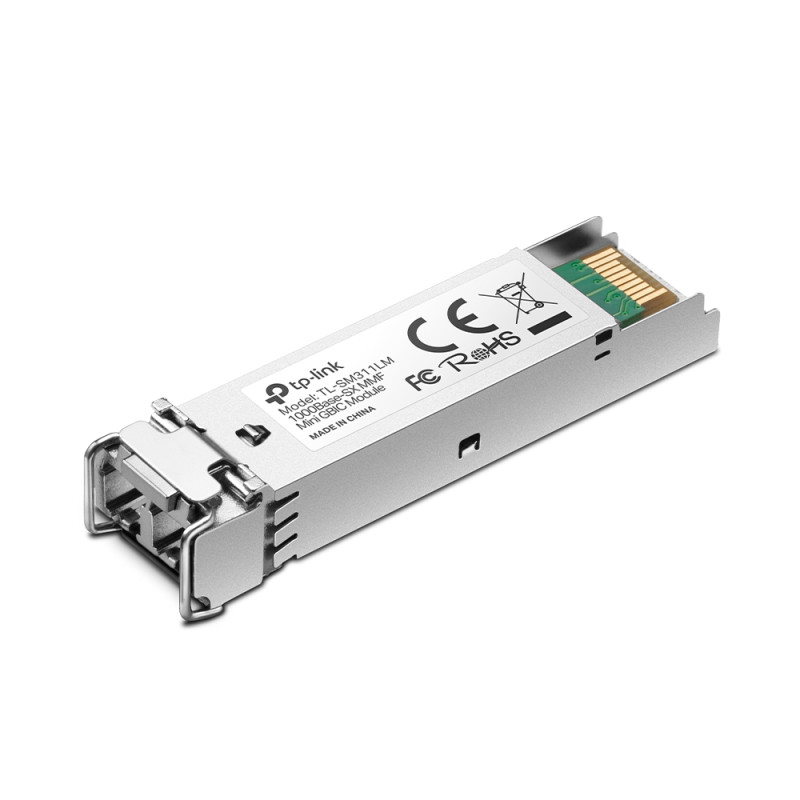

TP-Link TL-SM311LM Multimode Mini GBIC SFP Module
10656
TP-Link
New product
TP-Link multimode Mini GBIC SFP module for Gigabit Ethernet fiber links.
- Multi-mode MiniGBIC module
- Compatible with T3700 series, T2700 series,T2600 series, T2500 series, T1700 series, T1600 series, T1500 series, 2/3/5 series switches and MC220L
More info
The TP-Link TL-SM311LM is a multimode fiber transceiver
module designed to deliver reliable Gigabit connectivity over multimode
fiber cabling in enterprise and campus networks. Compatible with TP-Link
SFP ports, it provides stable high-speed data transmission.
| What This Product Does |
|
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost |
| PACKAGE CONTENTS | |
| Package Contents | SFP Module TL-SM311LM |
| Installation Guide | |
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 850nm |
| Dimensions (W*D*H) | 2.2*0.5*0.5 in (55.4*13.7*12.9 mm) |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cable | Multi-mode Fiber |
| Fiber Type | 50/125μm or 62.5/125μm Multi-mode |
| Max. Cable Length | 550m |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |
| Environment | Operating Temperature: 0℃~70℃ (32℉~158℉) |
| Storage Temperature: -40℃~80℃ (-40℉~176℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
