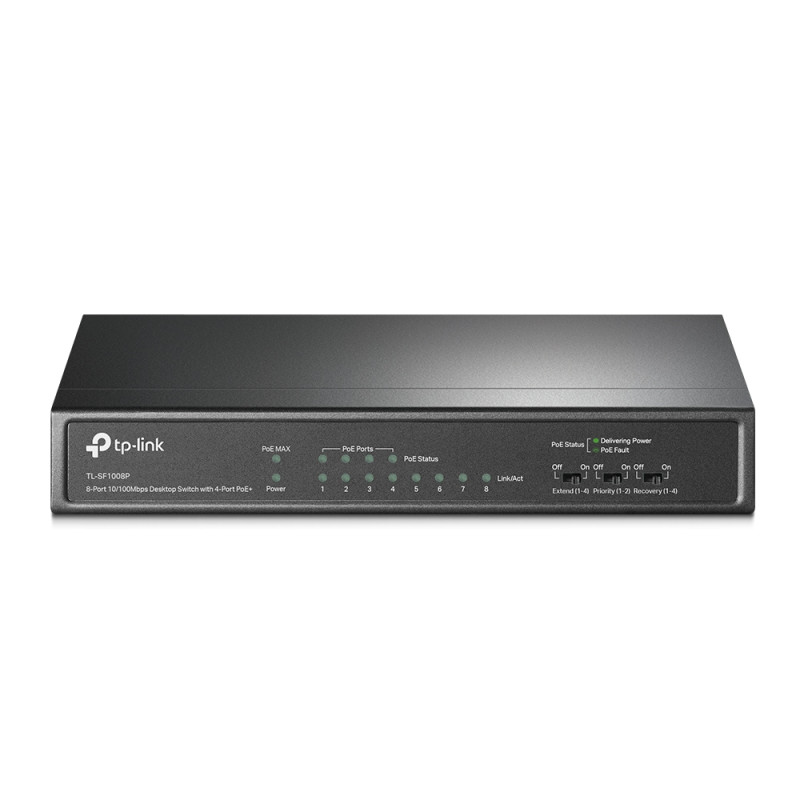

TP Link TL-SF1008P - 8-Port 10/100Mbps Desktop Switch with 4-Port PoE+
10561
TP-Link
New product
- 8× 10/100 Mbps RJ45 ports
- 4× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 66 W for all PoE ports*
- Up to 250m data and power transmitting range under Extend Mode
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required
More info
| Dedicated 8-Port Switch with 4-Port PoE+ (66 W Budget) for Numerous Applications |
| Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 66 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. |
| Dedicated Design for IP Surveillance —Up to 250 m Transmissions |
| With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas. |
| Priority Video Quality Guaranteed |
| Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on. |
| System Self-Healing with PoE Auto Recovery |
| The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart. |
| Intelligent Power Management |
| When total power consumption exceeds 66 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. |
| Durable Metal Casing |
| The interior components of TL-SF1008P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008P delivers switching performance you can depend on. |
| HARDWARE FEATURES | |
| Interface | 8× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports) |
| AUTO Negotiation | |
| AUTO MDI/MDIX | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 V DC / 1.31 A) |
| Packet Forwarding Rate | 1.1904 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant |
| PoE Ports: Ports 1–4 | |
| Power Supply: 66 W | |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.6 Gbps |
| Dimensions ( W x D x H ) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Max Power Consumption | 2.27 W (220 V/ 50 Hz. no PD connected) |
| 75.33 W (220 V/ 50 Hz. with 66 W PD connected) | |
| Max Heat Dissipation | 7.74 BTU/h(no PD connected) |
| 256.88 BTU/h(with 66 W PD connected) | |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Extend Mode Button (Ports 1–4) |
| Priority Mode Button (Ports 1–2) | |
| PoE Auto Recovery Button (Ports 1–4) | |
| Mac Address Auto-Learning and Auto-Aging | |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SF1008P, Power Adapter, Installation Guide, Rubber Feet |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) |
| Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
