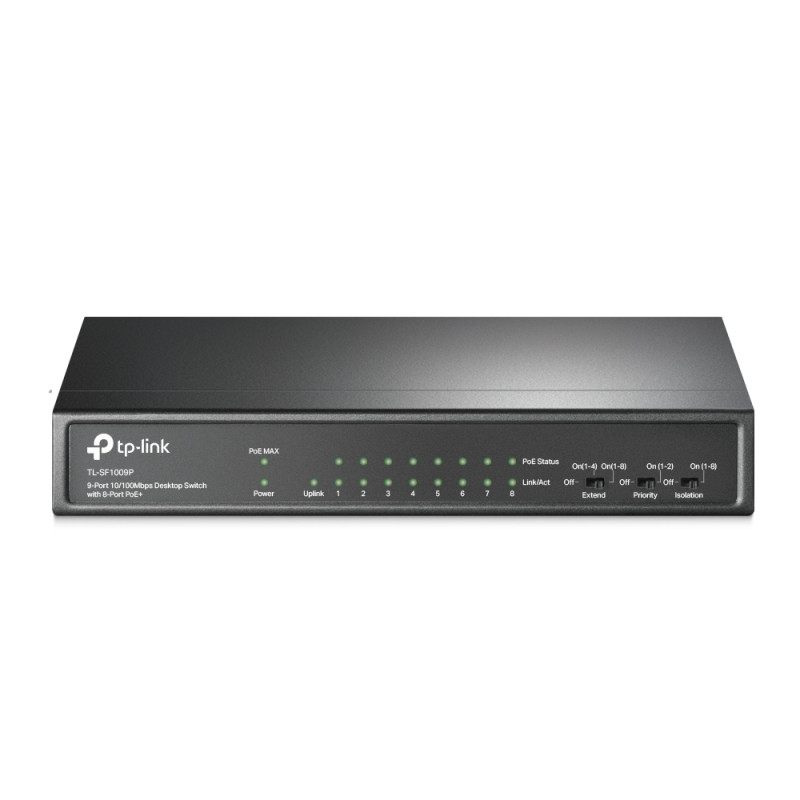

TP Link TL-SF1009P - 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
10562
TP-LinkTL-SF1009P
New product
- 9× 10/100 Mbps RJ45 ports
- 8× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for 8 PoE ports*
- Up to 250 m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Plug and play with no configuration required
More info
| Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications |
| Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. |
| Ideal for IP Surveillance —Up to 250 m Transmissions |
| With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type. |
| Ideal for IP Surveillance —Higher Performance and Security |
| Priority Mode and Isolation Mode make surveillance smoother and safer. |
| Priority Video Quality Guaranteed |
| Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on. |
| One-Click Traffic Separation for Ports 1-8 |
| With one click, Isolation Mode easily divides traffic for ports 1–8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission. |
| Intelligent Power Management |
| When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. |
| Durable Metal Casing |
| The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on. |
| HARDWARE FEATURES | |
| Interface | 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) |
| AUTO Negotiation | |
| AUTO MDI/MDIX | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 1.3A) |
| Packet Forwarding Rate | 1.3392 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant |
| PoE Ports: Ports 1–8 | |
| Power Supply: 65 W | |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.8 Gbps |
| Dimensions ( W x D x H ) | 6.7 × 3.9 × 1.1 in |
| (171 × 98 × 27 mm) | |
| Max Power Consumption | 3.6 (no PD connected) |
| 77.1 (with 65 W PD connected) | |
| Max Heat Dissipation | 12.3 BTU/h (no PD connected) |
| 262.8 BTU/h (with 65 W PD connected) | |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs |
| Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) | |
| Priority Mode Button (Ports 1–2) | |
| Isolation Mode Button (Ports 1–8) | |
| Mac Address Auto-Learning and Auto-Aging | |
| IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode | |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SF1009P |
| Power Adapter | |
| Installation Guide | |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) |
| Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
