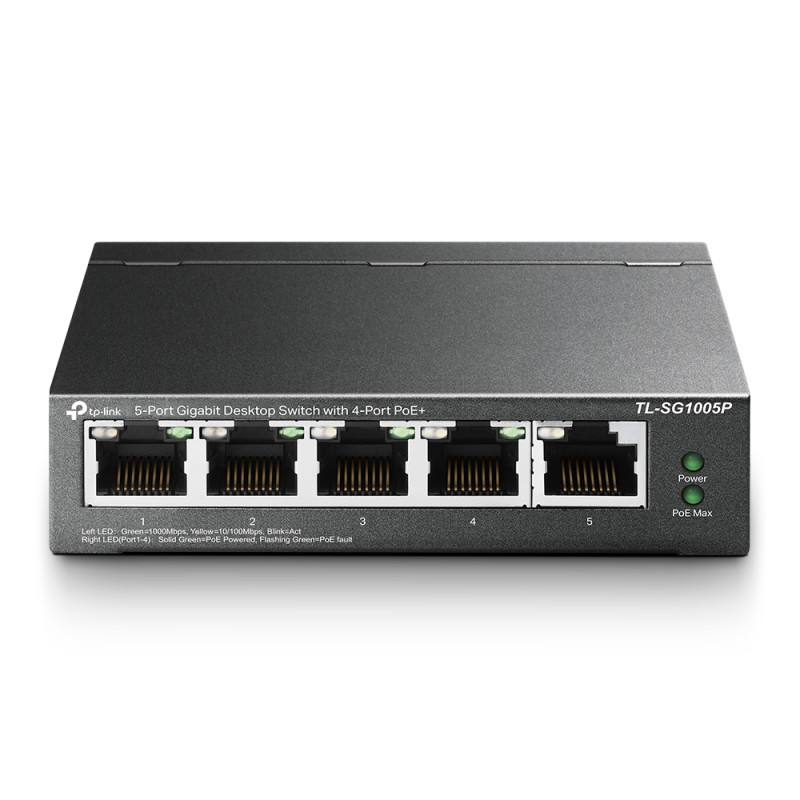

TP Link TL-SG1005P - 5-Port Gigabit Desktop Switch with 4-Port PoE
10563
TP-Link
New product
- 5× 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports*
- Requires no configuration and installation
More info
| Dedicated 4-Port PoE+ Switch (65 W Budget) for Numerous Applications |
| Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. |
| Intelligent Power Management |
| When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. |
| Durable Metal Casing |
| The interior components of TL-SG1005P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005P delivers switching performance you can depend on. |
| HARDWARE FEATURES | |
| Interface | 5× 10/100/1000Mbps RJ45 Ports |
| AUTO Negotiation | |
| AUTO MDI/MDIX | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate | 7.44 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant |
| PoE Ports: Ports 1–4 | |
| Power Supply: 65 W | |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 10 Gbps |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
| Max Power Consumption | 4.29 W (220/50 Hz. no PD connected) |
| 74.24 W (220/50 Hz. with 65 W PD connected) | |
| Max Heat Dissipation | 14.63 BTU/h (no PD connected) |
| 253.16 BTU/h (with 65 W PD connected) | |
| SOFTWARE FEATURES | |
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs |
| Mac Address Auto-Learning And Auto-Aging | |
| IEEE 802.3x Flow Control | |
| 802.1p/DSCP QoS | |
| IGMP Snooping | |
| Transfer Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG1005P |
| Power Adapter | |
| Installation Guide | |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉); |
| Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
