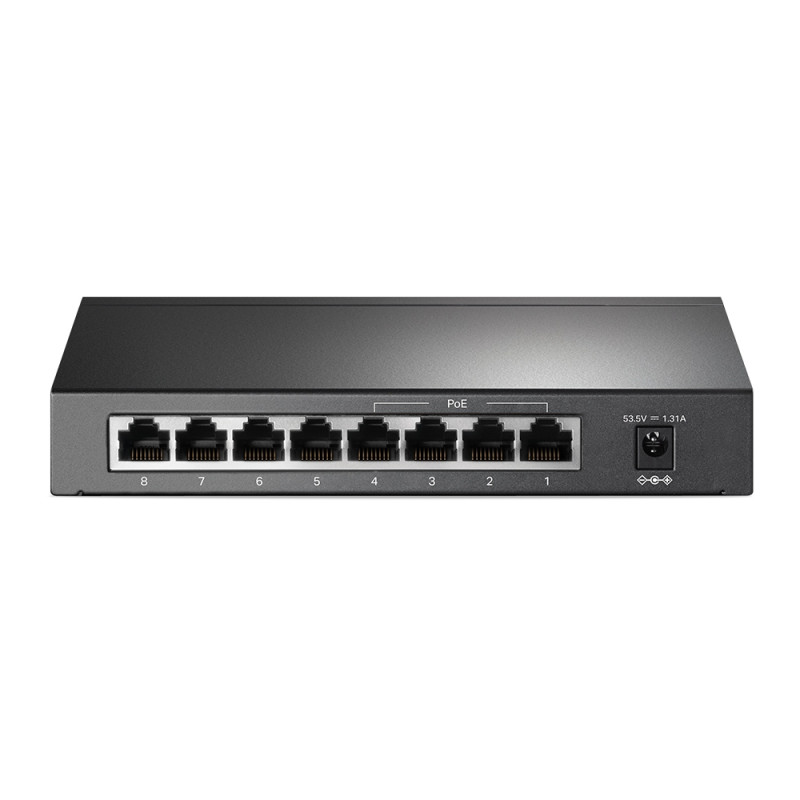

TP Link TL-SG1008P - 8-Port Gigabit Desktop Switch with 4-Port PoE+
10564
New product
- 8× 10/100/1000 Mbps RJ45 ports.
- 4× PoE+ ports transfer data and power on individual cables.
- Works with IEEE 802.3af/at compliant PDs.
- Plug and Play, no configuration and installation required.
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic.
- Supports PoE power up to 30 W for each PoE port.
- Supports PoE power up to 64 W for all PoE ports*.
More info
| Dedicated 8-Port Switch with 4-Port PoE+ (64 W Budget) for Numerous Applications |
| Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 64 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. |
| Intelligent Power Management |
When total power consumption exceeds 64 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. |
| Qos For Fluent Online Experience |
| Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free. |
| IGMP Snooping Traffic Optimization for IPTV |
| IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV. |
| Durable Metal Casing |
| The interior components of TL-SG1008P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1008P delivers switching performance you can depend on. |
| HARDWARE FEATURES | |
| Interface | 8× 10/100/1000 Mbps RJ45 Ports |
| AUTO Negotiation | |
| AUTO MDI/MDIX | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate | 11.904 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant |
| PoE Ports: Ports 1–4 | |
| Power Supply: 64 W | |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16 Gbps |
| Dimensions ( W x D x H ) | 6.7×3.9×1.1 in (171×98×27 mm) |
| Max Power Consumption | 5.39 W (220/50 Hz no PD connected) |
| 75 W (220/50 Hz with 64 W PD connected) | |
| Max Heat Dissipation | 18.38 BTU/h (no PD connected) |
| 225.75 BTU/h (with 64 W PD connected) | |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs |
| IGMP Snooping | |
| Mac Address Auto-Learning And Auto-Aging | |
| IEEE802.3x Flow Control | |
| 802.1p/DSCP QoS | |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG1008P |
| Power Adapter | |
| Installation Guide | |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉); |
| Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
