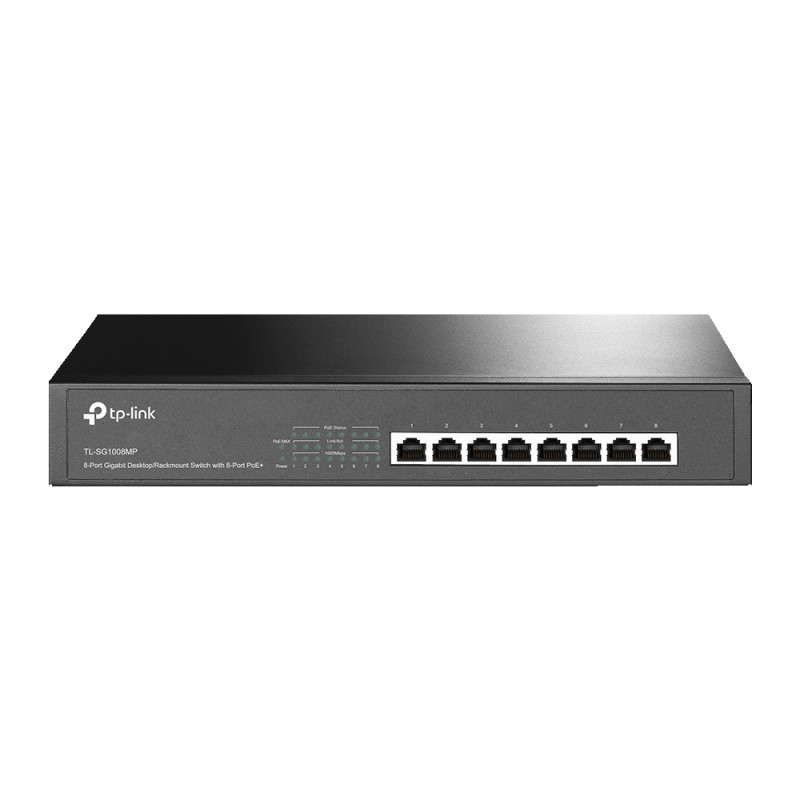

TP Link TL-SG1008MP - 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+
10565
TP-Link
New product
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Innovative energy-efficient technology reduces power consumption
- Supports PoE+ standard with total power budget of 153W* and up to 30W per port
- Plug and play design, no configuration required
More info
| What This Product Does |
| The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 153W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save the power consumption, making it an eco-friendly solution for your business network. |
| How This Product Works |
| All 8 ports of TL-SG1008MP support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are no electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones. |
| Overload Arrangement |
| TL-SG1008MP has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 153W, a priority will be arranged among the 8 PoE+ ports, at which point the system will cut off the power of the lowest-priority port. |
| Port Priority Function |
| Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4, 5 and 7 are using 30W (maximum power per port is 30W, the system power is 153W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 153W limit., This means Port 1, 2, 4 and 5 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use. |
| Easy To Use |
| TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE+ is a great choice for expanding your home or office network. |
| HARDWARE FEATURES | |
| Interface | 8 10/100/1000Mbps RJ45 Ports |
| AUTO Negotiation/AUTO MDI/MDIX | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | 1 |
| Physical Security Lock | No |
| Power Supply | 100-240VAC, 50/60Hz |
| Packet Forwarding Rate | 11.904 Mpps |
| PoE+ Ports(RJ45) | Standard: 802.3af/at compliant |
| PoE+ Ports: 8 Ports | |
| Power Supply: 153W | |
| Mac Address Table | 4K |
| Buffer Size | 1.5Mbits |
| Jumbo Frame | 16 KB |
| Switching Capacity | 16Gbps |
| Dimensions ( W x D x H ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| Mounting | Desktop/Rack Mountable |
| Max Power Consumption | 8.57W(220V/50Hz. no PD connected) |
| 173.65W(110V/60Hz. with 153W PD connected) | |
| Max Heat Dissipation | 29.22BTU/h(no PD connected) |
| 592.15BTU/h(with 153W PD connected) | |
| SOFTWARE FEATURES | |
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs |
| Priority Function | |
| Mac Address Auto-Learning And Auto-Aging | |
| IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode | |
| Transfer Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet |
| Environment | Operating Temperature: 0℃~50℃ (32℉~122℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
