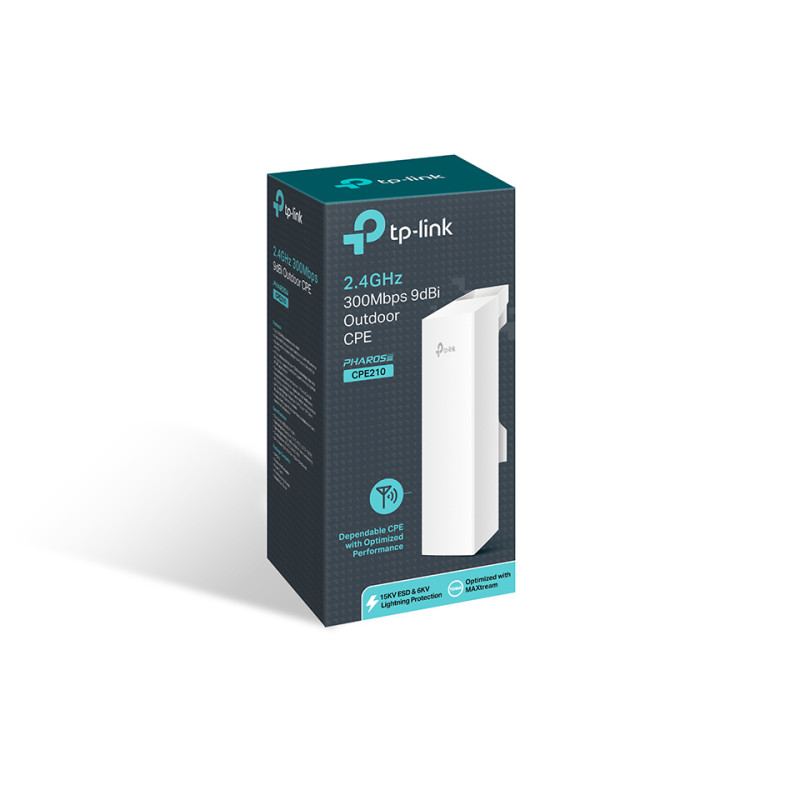

TP-link CPE210 2.4GHz 300Mbps 9dBi Outdoor Wi-Fi CPE
10029
TP-Link
New product
- 2.4GHz 300Mbps 9dBi Outdoor CPE
- 300 Mbps on 2.4 GHz with 2x2 MIMO
- 9 dBi Dual-Polarized Directional Antenna
- 15 kV ESD and 6 kV Lightning Protection
- IPX5 Weatherproof
- Centralized Management
More info
| Point-to-Multi-Point Connections |
| TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users. |
| Enterprise Hardware |
| With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉). |
| Advanced Antenna System |
| Built-in High Gain Dual-Polarized Antenna Dedicated metal reflector ensures higher gain and lower noise interference |
| 5km+ Wireless Data Transmission |
| Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field. |
| TP-LINK MAXtream TDMA Technology |
| As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology. |
| Pharos Control – Centralized Management System |
| CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control. |
| PharOS |
| User-friendly web-based management system allows professionals to do more specific configurations. |
| HARDWARE FEATURES | |
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
| Interface | 1 10/100Mbps Shielded Ethernet Port (Passive PoE in) |
| 1 Grounding Terminal | |
| 1 Reset Button | |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) |
| Voltage range: 16-27VDC | |
| Power Consumption | 10.5 Watts Max |
| Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. | |
| Dimensions ( W x D x H ) | 8.8 x 3.1 x 2.4 in. |
| Antenna Type | Built-in 9dBi 2x2 Dual-polarized Directional Antenna |
| Beam Width: 65° (H-Plane) / 35° (E-Plane) | |
| Protection | 15KV ESD Protection |
| 6KV Lightning Protection | |
| Enclosure | Outdoor ASA stabilized plastic material |
| IPX5 waterproof Certification | |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b/g/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) |
| Up to 144.4Mbps (20MHz,Dynamic) | |
| Up to 72.2Mbps (10MHz,Dynamic) | |
| Up to 36.1Mbps (5MHz,Dynamic) | |
| Frequency | 2.4~2.483GHz |
| Transmission Power | 27dBm/500mw (1dBm step adjustable) |
| SOFTWARE FEATURES | |
| Wireless Configurations | Pharos MAXtream TDMA Technology |
| 802.11b/g/n modes | |
| Selectable Channel Width: 5/10/20/40MHz | |
| Automatic Channel Selection | |
| Transmission Power Control | |
| Dynamic Frequency Selection (DFS) | |
| WDS Enable/Disable | |
| Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption | |
| SSID Broadcast Enable/Disable | |
| Multi-SSID with VLAN Tagging (AP mode only) | |
| Distance/ACK Timeout Setting | |
| Wireless MAC Address Filter | |
| Wireless Advanced: | |
| > Beacon Interval/RTS Threshold/Fragmentation | |
| > Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia | |
| Management | Discovery and Remote Management via Pharos Control application |
| HTTP/HTTPS Web-based management | |
| System Log | |
| SNMP Agent(v2c) | |
| Ping Watch Dog | |
| Dynamic DDNS | |
| SSH Server | |
| System Tools | Wireless Signal Quality Indicators: |
| Signal Strength/Noise/Transmit CCQ/CPU/Memory | |
| Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP | |
| Spectrum Analyzer | |
| Speed Test | |
| Ping | |
| Traceroute | |
| System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications |
| Hardware watch dog | |
| POE ADAPTER FEATURES | |
| Dimensions(W x D x H) | 4.3 x 2.2 x 1.3 in |
| Interfaces | 1 AC Jack with Earth Ground |
| 1 10/100Mbps Shielded Ethernet Port (Power + Data) | |
| 1 10/100Mbps Shielded Ethernet Port (Data) | |
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 0.6A Max |
| +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) | |
| Efficiency | > 80% |
| Certifications | FCC |
| OTHERS | |
| Certification | FCC, RoHS, IPX5 |
| Package Contents | Outdoor Wireless CPE |
| 24VDC Passive PoE Adapter | |
| Pole Mounting Straps | |
| AC Power Cord | |
| Installation Guide | |
| Environment | Operating Temperature: -40℃~70℃ (-40℉~158℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~95% non-condensing | |
