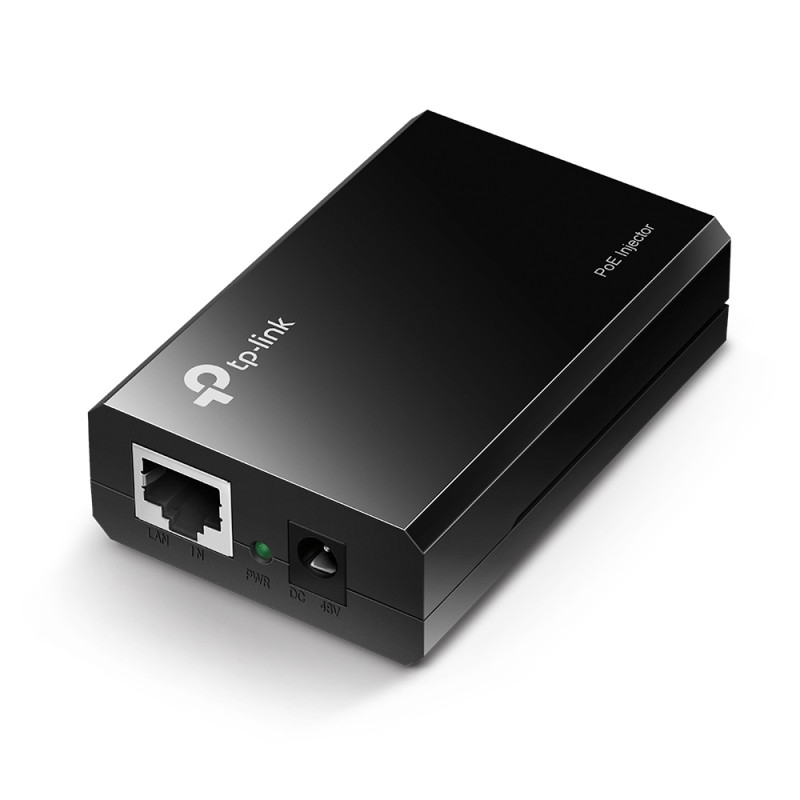

TP-link TL-POE150S PoE Injector
10645
TP-Link
New product
- IEEE 802.3af compliant
- Auto-determine the necessary power requirements
- Gigabit speed support
- Plug-and-Play, no configuration required
More info
| What This Product Does |
| The PoE Injector POE150S (TL-POE150S) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc. |
| HARDWARE FEATURES | |
| Interface | 2× 10/100/1000Mbps RJ45 Port |
| Auto Negotiation/Auto MDI/MDIX | |
| 1× 48VDC Power Input Port | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m) |
| EIA/TIA-568 100Ω STP (Max 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (Max 100m) | |
| EIA/TIA-568 100Ω STP (Max 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m) | |
| Power Supply | 15.4W (Max. 48VDC) |
| LED | PWR |
| Dimensions ( W x D x H ) | 3.2*2.1*0.9 in.(80.8*54*24 mm) |
|
SOFTWARE FEATURES
|
|
| Basic Function | Compatible With IEEE 802.3af Compliant PDs |
| Delivers Power Up To 100 Meters | |
| Auto-determine the necessary power requirements | |
|
OTHERS
|
|
| Certification | FCC, CE, RoHS |
| Package Content | POE150S |
| Power Adapter | |
| Installation Guide | |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
