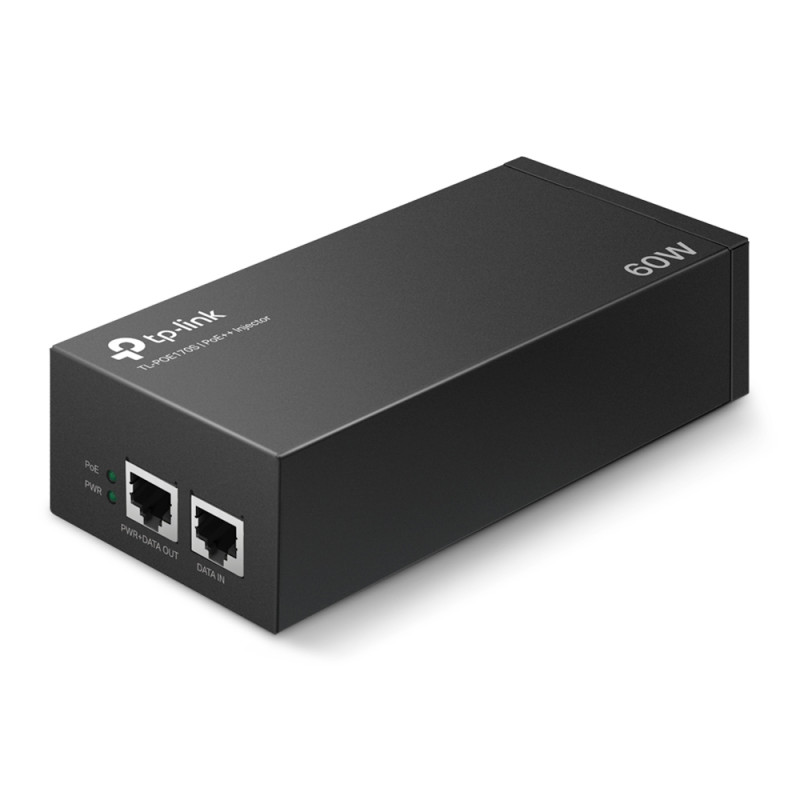

TP-link TL-POE170S PoE+ Injector

10646

TP-Link

New product

  • 2 Gigabit ports ensure faster transmission
  • Integrated power supply
  • Durable metal casing

More details

Send to a friend by WhatsApp

₨. 13,800.00

  • 1 Year Warranty

Add to wishlist

More info

What This Product Does
The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt* standards with up to 60 W power supply. It can easily expand your network to where there are no power line or outlet, where you wish to fix devices such as PTZ IP Cameras, LED, etc.

NETWORK
Standards and Protocols IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
HARDWARE FEATURES
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100Ω STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Ports 1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket
Power Consumption Input: 100-240 V, 50/60 Hz, 1.6A
Output: Auto-determine the necessary power requirements (max. 60 W)
Basic Function Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play
Dimensions ( W x D x H ) 6.1*2.8*1.7 in (155*70*42 mm)
GENERAL
Certification FCC, CE, RoHS
Environment Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing
Material Metal Casing
PACKAGE CONTENTS
Package Contents PoE++ Injector TL-POE170S
Installation Guide
Power Cord
RJ45 Cable
