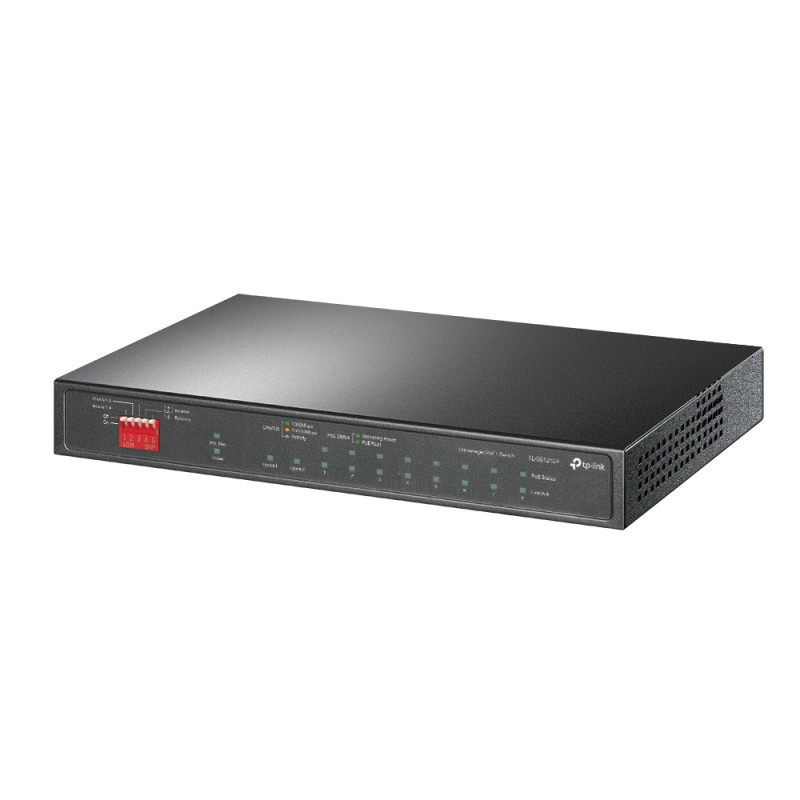

TP Link TL-SG1210P -10-Port Gigabit Desktop Switch with 8-Port PoE+
10566
TP-Link
New product
- 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
- With 8 PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs and expands office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
- Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Easy to use, with no configuration and installation needed
More info
| Dedicated 8 PoE+ Ports (63 W Budget) for Numerous Applications |
| Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 63 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more. |
| Ideal for IP Surveillance —Up to 250 m Transmissions |
| With extend mode, the PoE transmission distance reaches up to 250 m*—perfect for IP Camera deployment in large areas.*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type. |
| Keep Your Network Smooth and Safe with Port Prioritization and Separation |
| Port Prioritization |
| Guarantees the quality of sensitive applications like video and voice in critical business areas by prioritizing the data of ports 1-2. |
| Isolation Mode Button |
| Isolation Mode easily divides traffic for ports 1-4 or 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security. |
| System Self-Healing with PoE Auto Recovery |
| The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart. |
| Intelligent Power Management |
| When total power consumption exceeds 63 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged. |
| Durable Metal Casing |
| The interior components of TL-SG1210P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1210P delivers switching performance you can depend on. |
"
| HARDWARE FEATURES | |
| Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports |
| 1 10/100/1000Mbps RJ45 Port | |
| 1 Gigabit SFP Slot | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-X MMF, SMF | |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant |
| PoE Ports: Port1- Port 8 | |
| PoE Power Budget: 63W | |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 209 × 126 × 26 mm |
| Max Power Consumption | 7.0 W (220/50Hz. no PD connected) |
| 77.24 W (220/50Hz. with 63W PD connected) | |
| Max Heat Dissipation | 23.87 BTU/h (no PD connected) |
| 263.39 BTU/h (with 63W PD connected) | |
| SOFTWARE FEATURES | |
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs |
| EEE802.3x Flow Control | |
| 802.1p/DSCP QoS | |
| IGMP Snooping | |
| Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) | |
| Priority Mode Button (Ports 1–2) | |
| Isolation Mode Button (Ports 1–4 / 5-8) | |
| PoE Auto Recovery (Ports 1-8) | |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG1210P, Power Adapter, Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) |
| Storage Temperature: -40°C~70°C (-40°F~158°F) | |
| Operating Humidity: 10% ~ 90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
