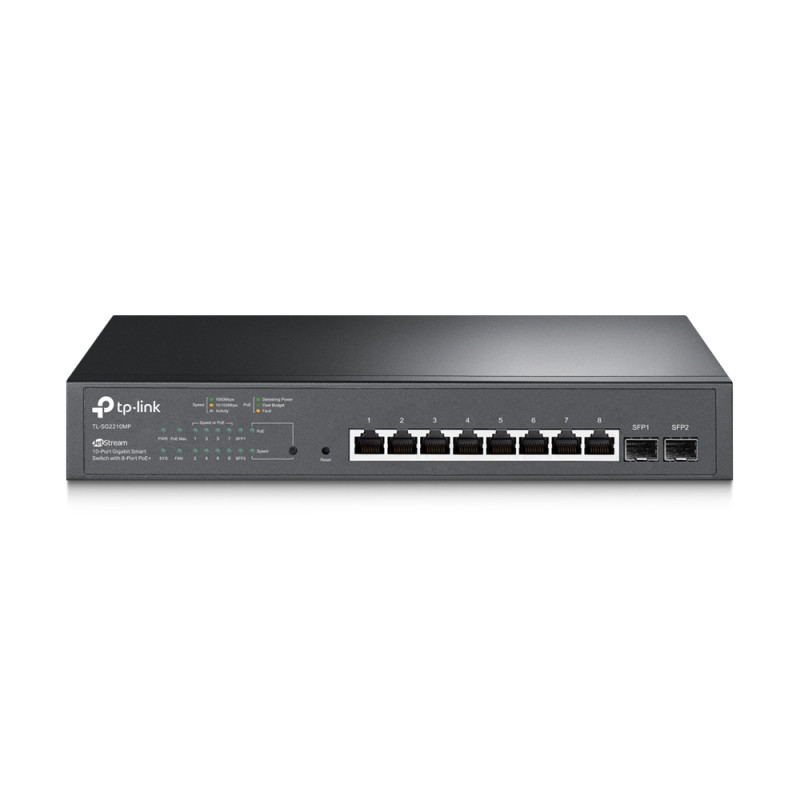

TP Link TL-SG2210MP - JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

Product ID: 10570

Brand: TP-Link

Reference:

Condition: New product

150 W PoE Budget
8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN
Centralized Management
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

More details

Send to a friend by WhatsApp

Send to a friend
Send to a friend
TP Link TL-SG2210MP - JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

150 W PoE Budget

8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN

Centralized Management

Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Share on Facebook!
Print

₨. 33,500.00

Quantity

Warranty

1 Year Limited Warranty

Add to wishlist

More info

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
Interface	8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (AutoNegotiation/Auto MDI/MDIX)
Interface	2× 100/1000 Mbps SFP Slots
Network Media	10BASET: UTP/STP category 3, 4, 5 cable (maximum 100m)
	100BASETX/1000BaseT: UTP/STP category 5, 5e or above cable (maximum 100m)
	100BASEFX: MMF, SMF
	1000BASEX: MMF, SMF
Fan Quantity	1
Physical Security Lock	Yes
Power Supply	100240V AC, 50/60Hz
PoE+ Ports(RJ45)	Standard: 802.3at/af compliant
	PoE+ Ports: 8 Ports
	Power Supply: 150 W
PoE Ports (RJ45)	Standard: 802.3at/af compliant
	PoE+ Ports: 8 Ports
	PoE Power Budget: 150 W*
Dimensions ( W x D x H )	11.6 x 7.1 x 1.7 in
Dimensions ( W x D x H )	(294 x 180 x 44 mm)
Mounting	Desktop,
Mounting	13" or 19" 1U rack mountable
Max Power Consumption	12.2 W (110 V / 60 Hz with no PD connected)
Max Power Consumption	173.9 W (110 V / 60 Hz with 150 W PD connected)
Max Heat Dissipation	41.6 BTU/h (with no PD connected)
Max Heat Dissipation	539.4 BTU/h (with 150 W PD connected)
PERFORMANCE
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.9 Mpps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	802.1p CoS/DSCP priority
	8 priority queues
	Priority Schedule Mode
	SP (Strict Priority)
	WRR (Weighted Round Robin)
	Queue Weight Config
	Bandwidth Control
	Port/Flow based Rating Limit
	Smoother Performance
	Storm Control
	Multiple Control Modes(kbps/ratio)
	Broadcast/Multicast/UnknownUnicast Control
L2 and L2+ Features	DHCP Relay
	DHCP VLAN Relay
	DHCP L2 Relay
	Link Aggregation
	Static link aggregation
	802.3ad LACP
	Up to 8 aggregation groups and up to 8 ports
	per group
	Spanning Tree Protocol
	802.1D STP
	802.1w RSTP
	802.1s MSTP
	STP Security: TC Protect, BPDU Filter/Protect,
	Root Protect
	Loopback Detection
	Flow Control
	802.3x Flow Control
	Mirroring
	Port Mirroring
	CPU Mirroring
	OnetoOne
	ManytoOne
	FlowBased
	Ingress/Egress/Both
	Device Link Detect Protocol (DLDP)
	802.1ab LLDP/ LLDPMED
L2 Multicast	IPv4, IPv6 shared multicast groups (511 groups max.)
	IGMP Snooping
	IGMP v1/v2/v3 Snooping
	Fast Leave
	IGMP Snooping Querier
	Static Group Config
	Multicast VLAN Registration (MVR)
	Multicast Filtering
	MLD Snooping
	MLD v1/v2 Snooping
	Fast Leave
	MLD Snooping Querier
	Static Group Config
	Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced Features	Automatic Device Discovery
	Batch Configuration
	Batch Firmware Upgrading
	Intelligent Network Monitoring
	Abnormal Event Warnings
	Unified Configuration
	Reboot Schedule
IPv6 Support	IPv6 Dual IPv4/IPv6
	Multicast Listener Discovery (MLD) Snooping
	IPv6 neighbor discovery (ND)
	Path maximum transmission unit (MTU) discovery
	Internet Control Message Protocol (ICMP)
	version 6
	TCPv6/UDPv6
	IPv6 applications
	DHCPv6 Client
	Ping6
	Tracert6
	Telnet (v6)
	IPv6 SNMP
	IPv6 SSH
	IPv6 SSL
	Http/Https
	IPv6 TFTP
VLAN	VLAN Group
	Max. 4K VLAN Groups
	802.1Q tag VLAN
	MAC VLAN
	Protocol VLAN
	GVRP
	Voice VLAN
Access Control List	Support up to 230 entries
	TimeRange
	Time Slice
	Week TimeRange
	Absolute TimeRange
	Holiday
	Timebased ACL
	MAC ACL
	Source MAC
	Destination MAC
	VLAN ID
	User Priority
	Ether Type
	IP ACL
	Source IP
	Destination IP
	IP Protocol
	TCP Flag
	TCP/UDP Source Port
	TCP/UDP Destination Port
	DSCP/IP TOS
	IPv6 ACL
	Combined ACL
	Rule Operation
	Permit/Deny
	Policy Action
	Mirror
	Rate Limit
	Redirect
	QoS Remark
	ACL Rules Binding
	Port Binding
	VLAN Binding
	Actions for flows
	Mirror (to supported interface)
	Redirect (to supported interface)
	Rate Limit
	QoS Remark
Security	AAA
	802.1X
	Port based authentication
	MAC (Host) based authentication
	Authentication Method includes PAP/EAPMD5
	MAB
	Guest VLAN
	Support Radius authentication and
	accountability
	IP/IPv6MAC Binding
	512 Binding Entries
	DHCP Snooping
	DHCPv6 Snooping
	ARP Inspection
	ND Detection
	IP Source Guard
	253 Entries
	Source IP+Source MAC
	IPv6 Source Guard
	183 Entries
	Source IPv6 Address+Source MAC
	DoS Defend
	Static/Dynamic/Permanent Port Security
	Up to 64 MAC addresses per port
	Broadcast/Multicast/Unicast Storm Control
	kbps/ratio control mode
	Port Isolation
	Secure web management through HTTPS with
	SSLv3/TLS 1.2
	Secure Command Line Interface (CLI)
	management with SSHv1/SSHv2
	IP/Port/MAC based access control
IPv6	IPv6 Static Routing and ACL
	IPv6 Dual IPv4/IPv6
	IPv6 Interface
	Multicast Listener Discovery (MLD) Snooping
	IPv6 neighbor discovery (ND)
	Path maximum transmission unit (MTU) discovery
	Internet Control Message Protocol (ICMP)
	version 6
	TCPv6/UDPv6
	IPv6 applications
	DHCPv6 Client
	Ping6
	Tracert6
	Telnet(v6)
	IPv6 SNMP
	IPv6 SSH
	IPv6 SSL
	Http/Https
	IPv6 TFTP
MIBs	MIB II (RFC1213)
	Bridge MIB (RFC1493)
	P/QBridge MIB (RFC2674)
	Radius Accounting Client MIB (RFC2620)
	Radius Authentication Client MIB (RFC2618)
	Remote Ping, Traceroute MIB (RFC2925)
	Support TPLink private MIBs
	RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App	Yes, through
	Omada CloudBased Controller (Not Supported by TLSG2428P v2)
	OC300
	OC200
	Omada Software Controller
Centralized Management	Omada CloudBased Controller (Not Supported by TLSG2210MP v2)
	Omada Hardware Controller OC300
	Omada Hardware Controller OC200
	Omada Software Controller
Cloud Access	Yes, through
	Omada CloudBased Controller (Not Supported by TLSG2210MP v2)
	OC300
	OC200
	Omada Software Controller
ZeroTouch Provisioning	Yes. Requiring the use of Omada CloudBased Controller (Supported by TLSG2210MP v1, v3 and above, while is not supported by TLSG2210MP v2)
Management Features	Webbased GUI
	Command Line Interface (CLI) through telnet
	SNMPv1/v2c/v3
	SNMP Trap/Inform
	RMON (1,2,3,9 groups)
	SDM Template
	DHCP/BOOTP Client
	Dual Image, Dual Configuration
	CPU Monitoring
	Cable Diagnostics
	EEE
	SNTP
	System Log
OTHERS
Certification	CE, FCC, RoHS
Package Contents	TLSG2210MP
	Power Cord
	Installation Guide
	Rackmount Kit
	Rubber Feet
Environment	Operating Temperature: 0–50 ℃ (32–122 ℉);
	Storage Temperature: 40–70 ℃ (40–158 ℉)
	Operating Humidity: 10–90% RH noncondensing
	Storage Humidity: 5–90% RH noncondensing
