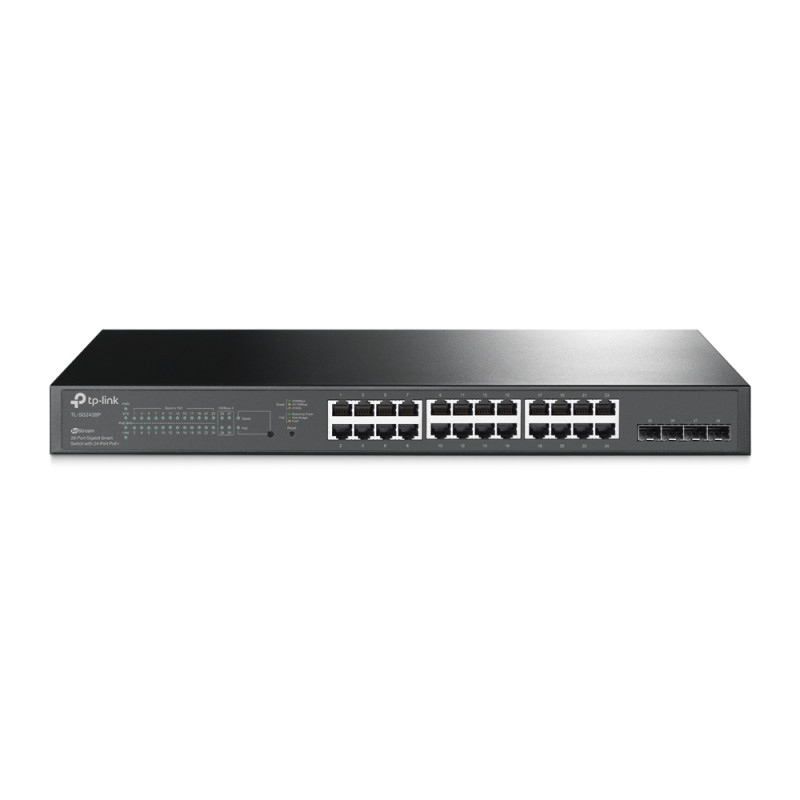

TP Link TL-SG2428P -JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+

10571

TP-Link

New product

  • 250 W PoE Budget
  • 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN
  • Centralized Management
  • Static Routing
  • Robust Security Strategies
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

More details

Send to a friend by WhatsApp

₨. 73,000.00

  • 1 Year Limited Warranty

Add to wishlist

More info

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface  24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
 4× Gigabit SFP Slots
Network Media  10BASET: UTP category 3, 4, 5 cable (maximum 100m)
 100BASETX/1000BaseT: UTP category 5, 5e or above cable (maximum 100m)
 1000BASEX: MMF, SMF
Fan Quantity 2
Power Supply 100240V AC, 50/60Hz
PoE+ Ports(RJ45)  Standard: 802.3at/af compliant
 PoE+ Ports: 24 Ports
 Power Supply: 250 W
PoE Ports (RJ45)  Standard: 802.3at/af compliant
 PoE+ Ports: 24 Ports
 PoE Power Budget: 250 W*
Dimensions ( W x D x H ) 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)
Mounting Rack Mountable
Max Power Consumption  32.1 W (110 V/ 60 Hz with no PD connected)
 308.6 W (110 V/ 60 Hz with 250 W PD connected)
Max Heat Dissipation  109.53 BTU/h (with no PD connected)
 1052.94 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity 56 Gbps
Bandwidth/Backplane 56 Gbps
Packet Forwarding Rate 41.7 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service  802.1p CoS/DSCP priority
 8 priority queues
 Priority Schedule Mode
 SP (Strict Priority)
 WRR (Weighted Round Robin)
 Queue Weight Config
 Bandwidth Control
 Port/Flow based Rating Limit
 Smoother Performance
 Storm Control
 Multiple Control Modes(kbps/ratio)
 Broadcast/Multicast/UnknownUnicast Control
L2 and L2+ Features  16 IP Interfaces
 Support IPv4/IPv6 Interface
 Static Routing
 32 IPv4/IPv6 Static Routes
 DHCP Server
 DHCP Relay
 DHCP Interface Relay
 DHCP VLAN Relay
 DHCP L2 Relay
 Static ARP
 Proxy ARP
 Gratuitous ARP
 Link Aggregation
 Static link aggregation
 802.3ad LACP
 Up to 8 aggregation groups and up to 8 ports
per group
 Spanning Tree Protocol
 802.1D STP
 802.1w RSTP
 802.1s MSTP
 STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
 Loopback Detection
 Flow Control
 802.3x Flow Control
 Mirroring
 Port Mirroring
 CPU Mirroring
 OnetoOne
 ManytoOne
 FlowBased
 Ingress/Egress/Both
 Device Link Detect Protocol (DLDP)
 802.1ab LLDP/ LLDPMED
Advanced Features  Automatic Device Discovery
 Batch Configuration
 Batch Firmware Upgrading
 Intelligent Network Monitoring
 Abnormal Event Warnings
 Unified Configuration
 Reboot Schedule
VLAN  VLAN Group
 Max. 4K VLAN Groups
 802.1Q tag VLAN
 MAC VLAN
 Protocol VLAN
 GVRP
 Voice VLAN
Access Control List  Support up to 230 entries
 TimeRange
 Time Slice
 Week TimeRange
 Absolute TimeRange
 Holiday
 Timebased ACL
 MAC ACL
 Source MAC
 Destination MAC
 VLAN ID
 User Priority
 Ether Type
 IP ACL
 Source IP
 Destination IP
 IP Protocol
 TCP Flag
 TCP/UDP Source Port
 TCP/UDP Destination Port
 DSCP/IP TOS
 IPv6 ACL
 Combined ACL
 Rule Operation
 Permit/Deny
 Policy Action
 Mirror
 Rate Limit
 Redirect
 QoS Remark
 ACL Rules Binding
 Port Binding
 VLAN Binding
 Actions for flows
 Mirror (to supported interface)
 Redirect (to supported interface)
 Rate Limit
 QoS Remark
Security  AAA
 802.1X
 Port based authentication
 MAC (Host) based authentication
 Authentication Method includes PAP/EAPMD5
 MAB
 Guest VLAN
 Support Radius authentication and
accountability
 IP/IPv6MAC Binding
 512 Binding Entries
 DHCP Snooping
 DHCPv6 Snooping
 ARP Inspection
 ND Detection
 IP Source Guard
 253 Entries
 Source IP+Source MAC
 IPv6 Source Guard
 183 Entries
 Source IPv6 Address+Source MAC
 DoS Defend
 Static/Dynamic/Permanent Port Security
 Up to 64 MAC addresses per port
 Broadcast/Multicast/Unicast Storm Control
 kbps/ratio control mode
 Port Isolation
 Secure web management through HTTPS with
SSLv3/TLS 1.2
 Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
 IP/Port/MAC based access control
IPv6  IPv6 Static Routing and ACL
 IPv6 Dual IPv4/IPv6
 IPv6 Interface
 Multicast Listener Discovery (MLD) Snooping
 IPv6 neighbor discovery (ND)
 Path maximum transmission unit (MTU) discovery
 Internet Control Message Protocol (ICMP)
version 6
 TCPv6/UDPv6
 IPv6 applications
 DHCPv6 Client
 Ping6
 Tracert6
 Telnet(v6)
 IPv6 SNMP
 IPv6 SSH
 IPv6 SSL
 Http/Https
 IPv6 TFTP
MIBs  MIB II (RFC1213)
 Bridge MIB (RFC1493)
 P/QBridge MIB (RFC2674)
 Radius Accounting Client MIB (RFC2620)
 Radius Authentication Client MIB (RFC2618)
 Remote Ping, Traceroute MIB (RFC2925)
 Support TPLink private MIBs
 RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App Yes
Centralized Management  Omada Hardware Controller (OC300)
 Omada Hardware Controller (OC200)
 Omada Software Controller
Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
ZeroTouch Provisioning Yes. Requiring the use of Omada CloudBased Controller (Supported by TLSG2428P v1, v3 and above, while is not supported by TLSG2428P v2)
Management Features  Webbased GUI
 Command Line Interface (CLI) through telnet
 SNMPv1/v2c/v3
 SNMP Trap/Inform
 RMON (1,2,3,9 groups)
 SDM Template
 DHCP/BOOTP Client
 Dual Image, Dual Configuration
 CPU Monitoring
 Cable Diagnostics
 EEE
 SNTP
 System Log
OTHERS
Certification CE, FCC, RoHS
Package Contents TLSG2428P
 Power Cord
 Installation Guide
 Rackmount Kit
 Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
Environment  Operating Temperature: 0–50 ℃ (32–122 ℉);
 Storage Temperature: 40–70 ℃ (40–158 ℉)
 Operating Humidity: 10–90% RH noncondensing
 Storage Humidity: 5–90% RH noncondensing
