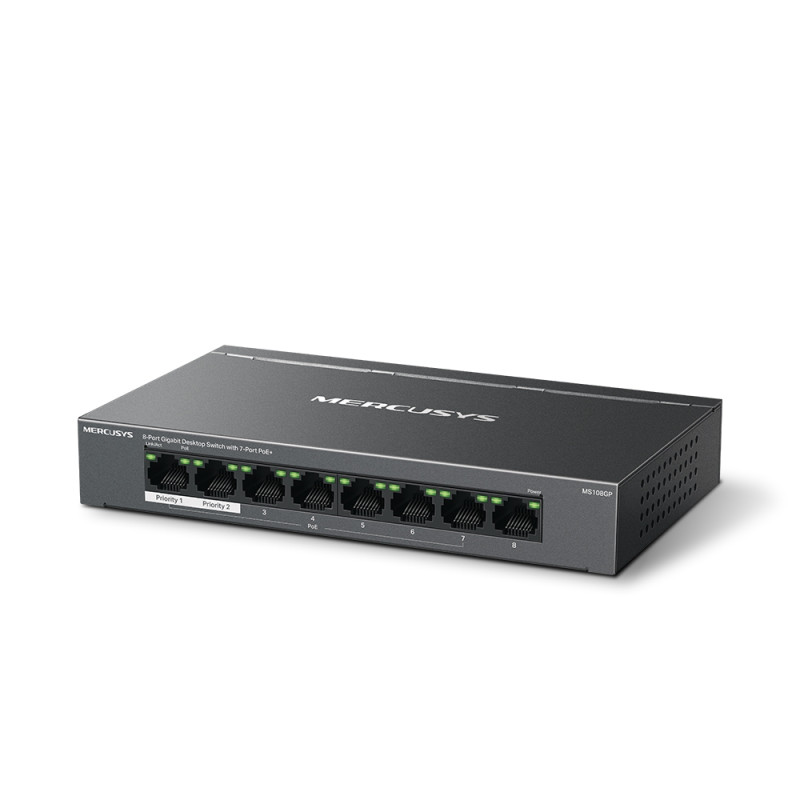

Mercusys MS108GP - 8-Port Gigabit Desktop Switch with 7-Port PoE+
10572
MERCUSYS
New product
- Full Gigabit Ports:8× 10/100/1000 Mbps RJ45 ports
- Two Cables in One:With 7 PoE+ ports, transfers data and power on one single cable
- High Power PoE+:Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports
- Long-Range up to 250 m:Increases PoE transmission distance to 250 m by Extend Mode
- Isolation Mode:One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices:Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing:Allows for efficient heat dissipation and long network life
- Plug and Play:Simple to use and saves time and effort
More info
| 7 PoE+ Ports (65 W Budget) for Network Deployment |
| All eight ports of the MS108GP are gigabit ports, with seven PoE+ ports (1-7). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget* enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it. |
| Power over Ethernet: Two Cables in One |
| No Fuss |
| No need for electricians; simplify installation and deployment. |
| Cost-Efficiency |
| Getting rid of extra cables and power adapters will save money on infrastructure. |
| Flexibility |
| Deployment in complex situations is made possible by more placement possibilities. |
| Power Management |
| Improves power usage while intelligently protecting your gadgets from power surges. |
| IEEE 802.3af/at |
| PoE ports compliant with the 802.3af/at Powered Devices. |
| Traffic Separation |
| With only one click, isolation mode divides traffic for ports 1-7 to prevent snooping/tampering and isolate broadcast storms for greater protection. |
| Port Prioritization |
| Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains. |
| Plug and Play |
| MS108GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort. |
| Long-Range up to 250 m with Extend Mode |
| Extend Mode** increases PoE transmission distance to 250 m. MS108GP has 7 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas. |
| Durable and Silent |
| MS108GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life. |
| Hardware | |
| Dimensions (W X D X H) | 171*98*27 mm |
| PoE Ports | RJ45 |
| Standard: Compliant with 802.3 af/at Powered Devices | |
| PoE Ports: Port 1- Port 7 | |
| PoE Power Budget: 65 W | |
| External Power Supply | External Power Adapter (Output: 53.5V/1.31A) |
| Installation | Desktop |
| Wall Mount | |
| Standards and Protocols | IEEE 802.3x Flow Control |
| Data Rates | 10/100/1000 Mbps at Half Duplex |
| 20/200/2000 Mbps at Full Duplex | |
| Jumbo Frame | 9 KB |
| Mac Address Table | 8K |
| Max Power Consumption | 5.07W（220 V / 50 Hz, no PD connected） |
| 77.33W（220 V / 50 Hz, with 65W PD connected） | |
| Max Heat Dissipation | 17.238 BTH/h （no PD connected) |
| 262.922 BTH/h（with 65W PD connected） | |
| Others | |
| Package Contents | 8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP) |
| Power Adapter | |
| Quick Installation Guide | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% RH non-condensing | |
| Storage Humidity: 5%~95% RH non-condensing | |
