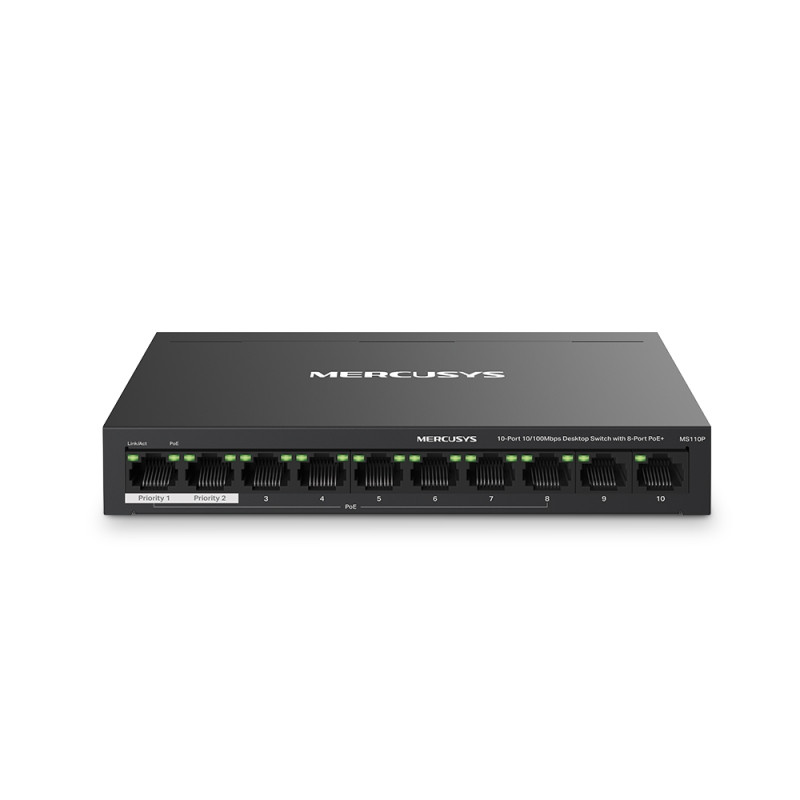

Mercusys MS110P - 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+
10573
MERCUSYS
New product
- 10 Ports:10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
- Two Cables in One:With 8 PoE+ ports, transfers data and power on one single cable
- High Power PoE+:Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- 2× Uplink Ports:MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
- Long-Range up to 250 m:Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode:One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices:Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing:Allows for efficient heat dissipation and long network life
- Plug and Play:Simple to use and saves time and effort
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
More info
| 8 PoE+ Ports (65 W Budget) for Network Deployment |
| Ports 1-8 support PoE+, and each of them supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. MS110P provides 2 ports without PoE+ for uplink devices, one of which is used to connect to the Internet and the other to connect to the NVR. The total 65 W PoE power budget* for the 8× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it. |
| Power over Ethernet: Two Cables in One |
| No Fuss |
| No need for electricians; simplify installation and deployment. |
| Cost-Efficiency |
| Getting rid of extra cables and power adapters will save money on infrastructure. |
| Flexibility |
| Deployment in complex situations is made possible by more placement possibilities. |
| Power Management |
| Improves power usage while intelligently protecting your gadgets from power surges. |
| IEEE 802.3af/at |
| PoE ports compliant with the 802.3af/at Powered Devices. |
| Long-Range up to 250 m with Extend Mode |
| Extend Mode** increases PoE transmission distance to 250 m. MS110P has 8 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas. |
| Traffic Separation |
| With only one click, isolation mode divides traffic for ports 1-8 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS110P provides 2× uplink ports when turning on the isolation mode. |
| Port Prioritization |
| Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains. |
| PoE Auto Recovery |
| The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically. |
| Plug and Play |
| MS110P offers auto-negotiation (10/100 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort. |
| Durable and Silent |
| MS110P's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life. |
| Hardware | |
| Dimensions (W X D X H) | 171*98*27 mm |
| PoE Ports | RJ45 |
| Standard: Compliant with 802.3 af/at Powered Devices | |
| PoE Ports: Port 1- Port 8 | |
| PoE Power Budget: 65 W | |
| Interfaces | 10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX |
| External Power Supply | External Power Adapter (Output: 53.5V/1.31A) |
| Installation | Desktop |
| Wall Mount | |
| Standards and Protocols | IEEE 802.3x Flow Control |
| Data Rates | 10/100 Mbps at Half Duplex |
| 20/200 Mbps at Full Duplex | |
| Jumbo Frame | 2 KB |
| Mac Address Table | 2K |
| Max Power Consumption | 10.064 BTH/h （no PD connected) |
| 263.568 BTH/h（with 65W PD connected） | |
| Others | |
| Package Contents | 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P) |
| Power Adapter | |
| Quick Installation Guide | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% RH non-condensing | |
| Storage Humidity: 5%~95% RH non-condensing | |
