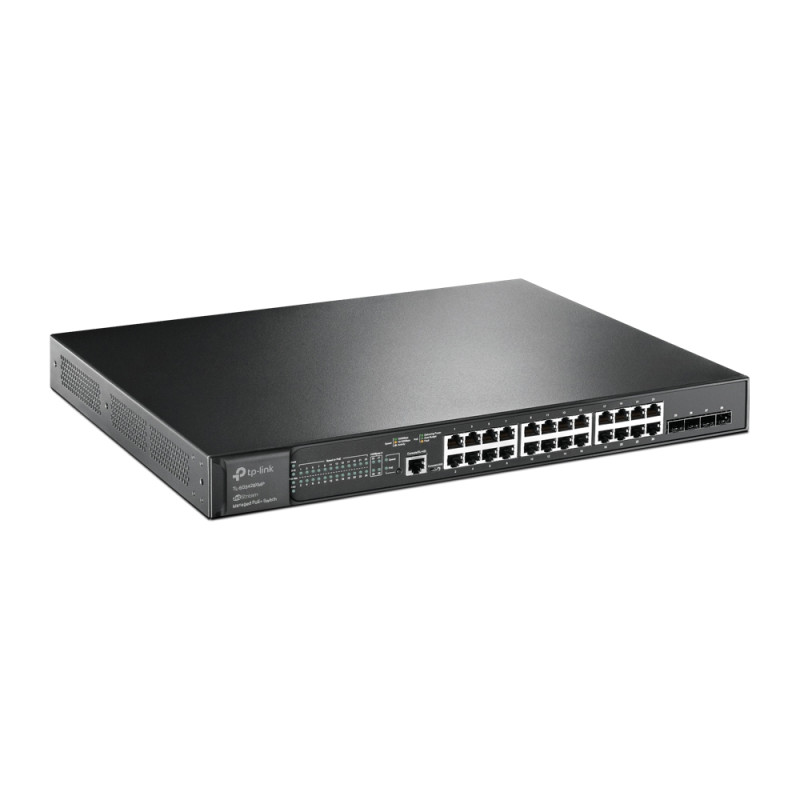

TP Link TL-SG3428X - JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Product ID: 10579

Brand: TP-Link

Reference:

Condition: New product

10G Lightning-Fast Uplink
384 W PoE Budget
Integrated into Omada SDN
Centralized Management
Static Routing
Robust Security Strategies
Optimize Voice and Video Applications
Standalone Management

More details

Send to a friend by WhatsApp

Send to a friend
Send to a friend
TP Link TL-SG3428X - JetStream 24-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

10G Lightning-Fast Uplink

384 W PoE Budget

Integrated into Omada SDN

Centralized Management

Static Routing

Robust Security Strategies

Optimize Voice and Video Applications

Standalone Management
Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Share on Facebook!
Print

₨. 97,000.00

Quantity

Warranty

1 Year Limited Warranty

Add to wishlist

More info

Dedicated 24 PoE+ Ports (384 W Budget) for Numerous Applications

Features 24× 802.3af/at compliant PoE+ ports, the switch supports up to 384 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Software-Defined Networking (SDN) with Cloud Access

Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.***

Secure Networking

Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features

A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS

Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features

sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support

IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

HARDWARE FEATURES
Interface	24× 10/100/1000 Mbps RJ45 Ports
	4× 10G SFP+ Slots
	1× RJ45 Console Port
	1× Micro-USB Console Port
Fan Quantity	2
Power Supply	100-240 V AC~50/60 Hz
PoE+ Ports(RJ45)	Standard: 802.3at/af compliant
	PoE+ Ports: 24 Ports, up to 30 W per port
	Power Budget: 384 W
Dimensions ( W x D x H )	17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	34.4 W (110V/60Hz) ( no PD device connected)
Max Power Consumption	465.8 W (110V/60Hz) ( with 384 W PD device connected)
Max Heat Dissipation	117.38 BTU/h (110 V/60 Hz) (no PD device connected)
Max Heat Dissipation	1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected)
PERFORMANCE
Switching Capacity	128 Gbps
Packet Forwarding Rate	95.23 Mpps
MAC Address Table	16 K
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	8 priority queues
	802.1p CoS/DSCP priority
	Queue scheduling
	SP (Strict Priority)
	WRR (Weighted Round Robin)
	SP+WRR
	Bandwidth Control
	Port/Flow based Rating Limiting
	Smoother Performance
	Action for Flows
	Mirror (to supported interface)
	Redirect (to supported interface)
	Rate Limit
	QoS Remark
L3 Features	16 IPv4/IPv6 Interfaces
	Static Routing
	48 static routes
	Static ARP
	128 Static Entries
	Proxy ARP
	Gratuitous ARP
	DHCP Server
	DHCP Relay
	DHCP Interface Relay
	DHCP VLAN Relay
	DHCP L2 Relay
L2 and L2+ Features	Link Aggregation
	static link aggregation
	802.3ad LACP
	Up to 8 aggregation groups, containing 8 ports per group
	Spanning Tree Protocol
	802.1d STP
	802.1w RSTP
	802.1s MSTP
	STP Security: TC Protect, BPDU Filter, Root Protect
	Loopback Detection
	Port based
	VLAN based
	Flow Control
	802.3x Flow Control
	HOL Blocking Prevention
	Mirroring
	Port Mirroring
	CPU Mirroring
	One-to-One
	Many-to-One
	Tx/Rx/Both
L2 Multicast	IGMP Snooping
	IGMP v1/v2/v3 Snooping
	Fast Leave
	IGMP Snooping Querier
	IGMP Authentication
	IGMP Authentication
	MLD Snooping
	MLD v1/v2 Snooping
	Fast Leave
	MLD Snooping Querier
	Static Group Config
	Limited IP Multicast
	MVR
	Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features	Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller
	Automatic Device Discovery
	Batch Configuration
	Batch Firmware Upgrading
	Intelligent Network Monitoring
	Abnormal Event Warnings
	Unified Configuration
	Reboot Schedule
	ZTP (Zero-Touch Provisioning)**
VLAN	VLAN Group
	Max 4K VLAN Groups
	802.1Q Tagged VLAN
	MAC VLAN: 7 Entries
	Protocol VLAN: Protocol Template 16, Protocol VLAN 16
	Private VLAN
	GVRP
	VLAN VPN (QinQ)
	Port-Based QinQ
	Selective QinQ
	Voice VLAN
Access Control List	Time-based ACL
	MAC ACL
	Source MAC
	Destination MAC
	VLAN ID
	User Priority
	Ether Type
	IP ACL
	-Source IP
	Destination IP
	Fragment
	IP Protocol
	TCP Flag
	TCP/UDP Port
	DSCP/IP TOS
	User Priority
	Combined ACL
	Packet Content ACL
	IPv6 ACL
	Policy
	Mirroring
	Redirect
	Rate Limit
	QoS Remark
	ACL apply to Port/VLAN
Security	IP-MAC-Port Binding
	512 Entries
	DHCP Snooping
	ARP Inspection
	IPv4 Source Guard: 100 Entries
	IPv6-MAC-Port Binding
	512 Entries
	DHCPv6 Snooping
	ND Detection
	IPv6 Source Guard: 100 Entries
	DoS Defend
	Static/Dynamic Port Security
	Up to 64 MAC addresses per port
	Broadcast/Multicast/Unicast Storm Control
	kbps/ratio control mode
	802.1X
	Port base authentication
	Mac base authentication
	VLAN Assignment
	MAB
	Guest VLAN
	Support Radius authentication andaccountability
	AAA (including TACACS+)
	Port Isolation
	Secure web management through HTTPS with SSLv3/TLS 1.2
	Secure Command Line Interface (CLI) management with SSHv1/SSHv2
	IP/Port/MAC based access control
IPv6	IPv6 Dual IPv4/IPv6
	Multicast Listener Discovery (MLD) Snooping
	IPv6 ACL
	IPv6 Interface
	Static IPv6 Routing
	IPv6 neighbor discovery (ND)
	Path maximum transmission unit (MTU) discovery
	Internet Control Message Protocol (ICMP) version 6
	TCPv6/UDPv6
	IPv6 applications
	DHCPv6 Client
	Ping6
	Tracert6
	Telnet (v6)
	IPv6 SNMP
	IPv6 SSH
	IPv6 SSL
	Http/Https
	IPv6 TFTP
Management	Web-based GUI
	Command Line Interface (CLI) through the console port, telnet
	SNMP v1/v2c/v3
	Trap/Inform
	RMON (1,2,3,9 groups)
	SDM Template
	DHCP/BOOTP Client
	802.1ab LLDP/LLDP-MED
	DHCP AutoInstall
	Dual Image, Dual Configuration
	CPU Monitoring
	Cable Diagnostics
	EEE
	Password Recovery
	SNTP
	System Log
MIBs	MIB II (RFC1213)
	Interface MIB (RFC2233)
	Ethernet Interface MIB (RFC1643)
	Bridge MIB (RFC1493)
	P/Q-Bridge MIB (RFC2674)
	RMON MIB (RFC2819)
	RMON2 MIB (RFC2021)
	Radius Accounting Client MIB (RFC2620)
	Radius Authentication Client MIB (RFC2618)
	Remote Ping, Traceroute MIB (RFC2925)
	Support TP-Link private MIB
MANAGEMENT
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	Omada Cloud-Based Controller
	Omada Hardware Controller (OC300)
	Omada Hardware Controller (OC200)
	Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	Web-based GUI
	Command Line Interface (CLI) through the console port, telnet
	SNMP v1/v2c/v3
	Trap/Inform
	RMON (1,2,3,9 groups)
	SDM Template
	DHCP/BOOTP Client
	802.1ab LLDP/LLDP-MED
	DHCP AutoInstall
	Dual Image, Dual Configuration
	CPU Monitoring
	Cable Diagnostics
	EEE
	Password Recovery
	SNTP
	System Log
OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-SG3428XMP Switch
	Power Cord
	Quick Installation Guide
	Rackmount Kit
	Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0–45 ℃ (32–113 ℉);
	Storage Temperature: -40–70 ℃ (-40–158 ℉)
	Operating Humidity: 10–90% RH non-condensing
	Storage Humidity: 5–90% RH non-condensing
