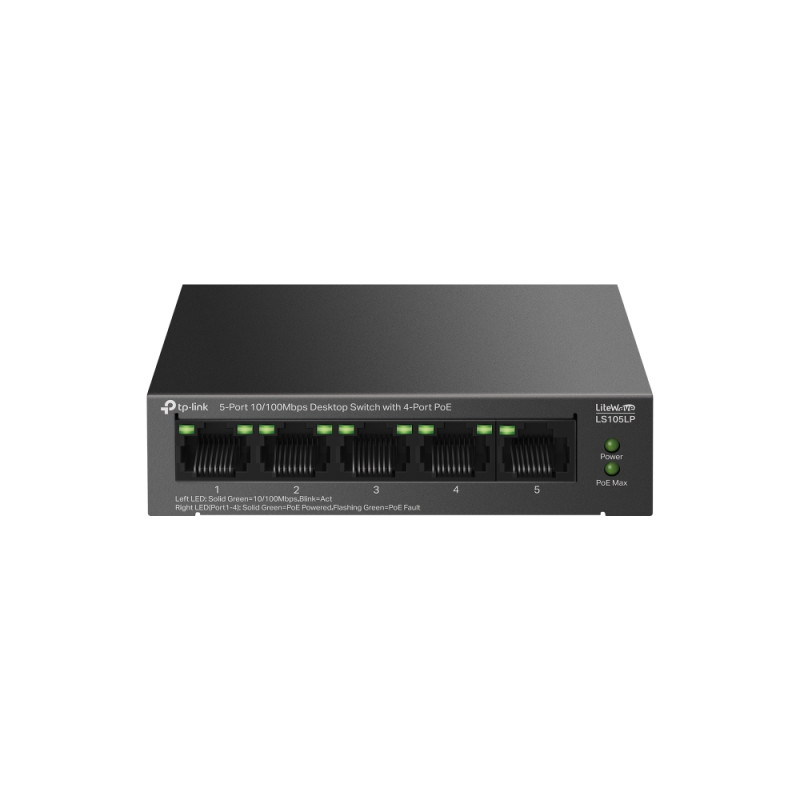

TP Link TL-LS105LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE
10581
TP-Link
New product
- 41 W PoE Budget
- Up to 250 m PoE Transmission
- PoE Auto Recovery
- Plug and Play
- Silent Operation
- Reliable Hardware Design
More info
| HARDWARE FEATURES | |
| Interface | 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports) |
| AUTO Negotiation | |
| AUTO MDI/MDIX | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | Fanless |
| Installation | Desktop |
| Wall Mounting | |
| Power Supply | External Power Adapter (Output: 53.5VDC / 0.81A) |
| LED | Power |
| Link/Act | |
| PoE Status | |
| PoE MAX | |
| PoE Ports (RJ45) | Standard: 802.3 af compliant |
| PoE Ports: Ports 1–4, up to 15.4 W PoE output per port | |
| Power Supply: 41 W | |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (100×98×25 mm) |
| Max. Power Consumption | 2.40 W (220 V/50 Hz no PD connected) |
| 46.45 W (220 V/50 Hz with 41 W PD connected) | |
| Max Heat Dissipation | 8.15 BTU/h (220 V/50 Hz no PD connected) |
| 157.93 BTU/h (220 V/50 Hz with 41 W PD connected) | |
| PERFORMANCE | |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | 2 KB |
| SOFTWARE FEATURES | |
| Advanced Features | Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) |
| PoE Auto Recovery Button (Ports 1-4) | |
| Compatible With IEEE 802.3af Compliant PDs | |
| Mac Address Auto-Learning and Auto-Aging | |
| IEEE 802.3x Flow Control | |
| Green Technology | |
| Transmission Method | Store and Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | LS105LP |
| Power Adapter | |
| Installation Guide | |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) |
| Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| Operating Humidity: 10–90% RH non-condensing | |
