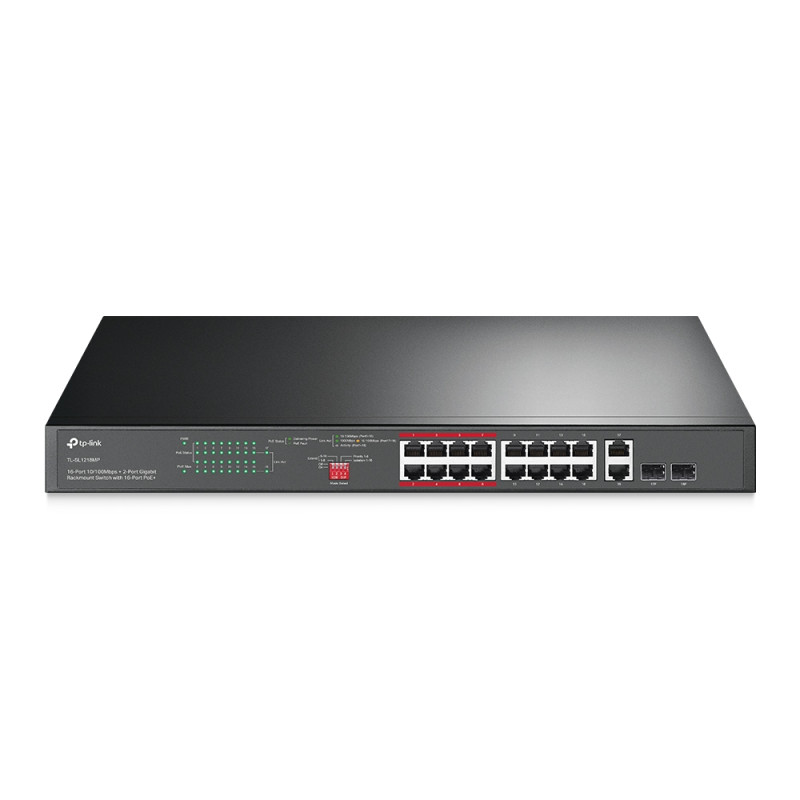

TP Link TL-SL1218MP - 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
10589
TP-Link
New product
- 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots
- Supports up to 30 W per PoE port, with a total PoE power budget of 250 W
- Extend mode enables up to 250 m data and power transmission for surveillance applications
- Priority mode for ports 1–8 ensures quality for critical applications like video monitoring
- One-click Isolation Mode enables client traffic separation for improved security and performance
- Plug-and-play design, no configuration or installation required
More info
| Dedicated 16-Port PoE+ Switch (250 W Budget) for Numerous Applications |
| Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc. |
| Ideal for IP Surveillance—Up to 250 m Transmission |
| With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas. **The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type. |
| Priority Video Quality Guaranteed |
| Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on. |
| One-Click Traffic Separation for Ports 1-16 |
| With one click, Isolation Mode easily divides traffic for ports 1–16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission. |
| Smooth HD Video Monitoring |
| 2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 16× HD IP cameras work simultaneously. |
| Intelligent Power Management to Prevent Power Overload |
| When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged. |
| Wide Operating Temperature with Good Heat Dissipation |
| Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability. |
| Multiple Application Scenarios |
| The TL-SL1218MP is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. |
| HARDWARE FEATURES | |
| Interface | 16 PoE+ 10/100 Mbps RJ45 Ports |
| 2× 10/100/1000 Mbps RJ45 Ports | |
| 2× Combo Gigabit SFP Slots | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-X MMF, SMF | |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100–240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant |
| PoE Ports: Ports 1–16 | |
| PoE Power Budget: 250 W | |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in |
| (440 × 180 × 44 mm) | |
| Max Power Consumption | 15.0 W (no PD connected) |
| 285.8 W (with 250 W PD connected) | |
| Max Heat Dissipation | 51.1 BTU/h (no PD connected) |
| 974.6 BTU/h (with 250 W PD connected) | |
| PERFORMANCE | |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Advanced Features | Compatible With IEEE 802.3at/af Compliant PDs |
| Extend Mode (Up to 250m PoE power supply and data transmission) | |
| Priority Mode | |
| Isolation Mode | |
| Mac Address Auto-Learning And Auto-Aging | |
| IEEE802.3x Flow Control | |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SL1218MP |
| Power Cable | |
| Installation Guide | |
| Two mounting brackets and the fittings | |
| Environment | Operating Temperature: 0–50 °C (32–122 °F) |
| Storage Temperature: -40–70 °C (-40–158 °F) | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
