> Networking Products>Switches> POE Switches 10/100/1000Mbps>TP Link SG2218P JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+
Previous Next

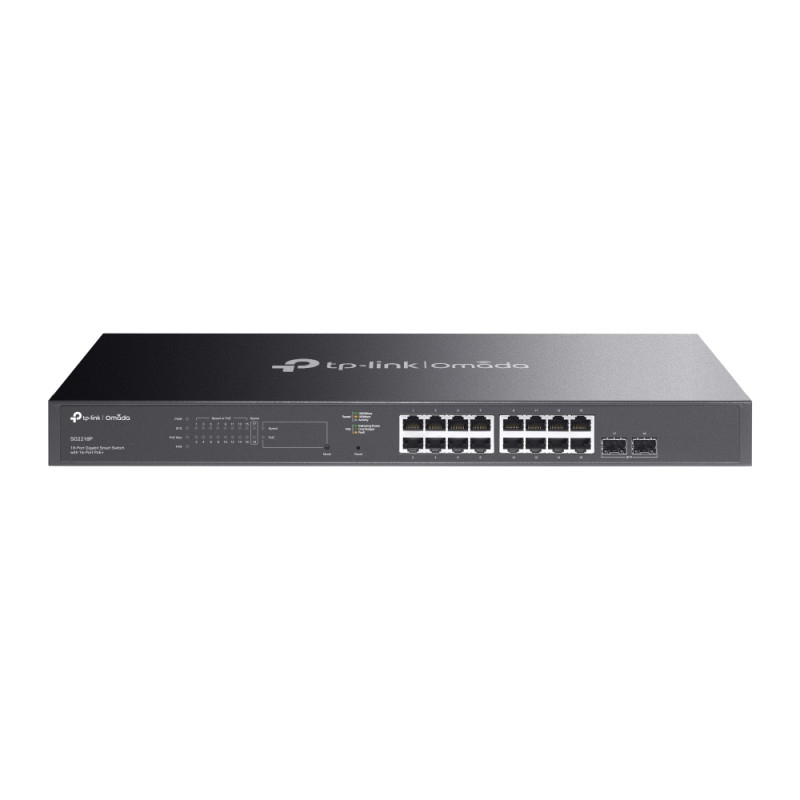

TP Link SG2218P JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+

10594

TP-Link

SG2218P

New product

  • 16× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP Slots
  • 150 W total PoE budget with up to 30 W PoE output per port*
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, and IGMP Snooping
  • Durable metal casing and rackmountable design

More details

Send to a friend by WhatsApp

₨. 53,000.00

Add to wishlist

More info

HARDWARE FEATURES
Interface  16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
 2× Gigabit SFP Slots
Fan Quantity Fanless Design
Physical Security Lock Yes
Power Supply 100240V AC, 50/60Hz
PoE Ports (RJ45)  Standard: 802.3at/af compliant
 PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)
 PoE Power Budget: 150 W*
Dimensions ( W x D x H ) 17.3×7.1×1.7 in (440×180×44 mm)
Mounting Rack Mountable
PERFORMANCE
Switching Capacity 36 Gbps
Packet Forwarding Rate 26.78 Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service  802.1p CoS/DSCP priority
 8 priority queues
 Priority Schedule Mode
 SP (Strict Priority)
 WRR (Weighted Round Robin)
 Queue Weight Config
 Bandwidth Control
 Port/Flow based Rating Limit
 Smoother Performance
 Storm Control
 Multiple Control Modes(kbps/ratio)
 Broadcast/Multicast/UnknownUnicast Control
L2 and L2+ Features  32 IP Interfaces: Support IPv4/IPv6 Interface
 Static Routing: 32 IPv4/IPv6 Static Routes
 DHCP Server
 DHCP Relay
 DHCP Interface Relay
 DHCP VLAN Relay
 DHCP L2 Relay
 Static ARP
 Proxy ARP
 Gratuitous ARP
 Link Aggregation
 Spanning Tree Protocol
 Loopback Detection
 802.3x Flow Control
 Mirroring
 Device Link Detect Protocol (DLDP)
 802.1ab LLDP/ LLDPMED
L2 Multicast  511 IPv4, IPv6 shared multicast groups
 IGMP Snooping
 Multicast VLAN Registration (MVR)
 Multicast Filtering
 Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced Features  Automatic Device Discovery†
 Batch Configuration†
 Batch Firmware Upgrading†
 Intelligent Network Monitoring†
 Abnormal Event Warnings†
 Unified Configuration†
 Reboot Schedule†
VLAN  VLAN Group
 Max. 4K VLAN Groups
 802.1Q tag VLAN
 MAC VLAN: 12 Entries
 Protocol VLAN
 GVRP
 Voice VLAN
Access Control List  Support up to 230 entries
 Timebased ACL
 MAC ACL
 IP ACL
 IPv6 ACL
 Combined ACL
 Rule Operation: Permit/Deny
 Policy Action
 Mirroring
 Redirect
 Rate Limit
 QoS Remark
 ACL Rules Binding
 Port Binding
 VLAN Binding
Security  IPMACPort Binding
 AAA
 802.1X
 Portbased authentication
 MAC (Host) based authentication
 Authentication Method includes PAP/EAPMD5
 MAB
 Guest VLAN
 Support Radius authentication and accountability
 IP/IPv6MAC Binding
 512 Binding Entries
 DHCP Snooping
 DHCPv6 Snooping
 ARP Inspection
 ND Detection
 IP Source Guard
 253 Entries
 Source IP+Source MAC
 IPv6 Source Guard
 183 Entries
 Source IPv6 Address+Source MAC
 DoS Defend
 Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
 Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
 Port Isolation
 Secure web management through HTTPS with SSLv3/TLS 1.2
 Secure Command Line Interface (CLI) management with SSHv1/SSHv2
 IP/Port/MACbased access control
IPv6  IPv6 Static Routing and ACL
 IPv6 Dual IPv4/IPv6
 IPv6 Interface
 Multicast Listener Discovery (MLD) Snooping
 IPv6 neighbor discovery (ND)
 Path maximum transmission unit (MTU) discovery
 Internet Control Message Protocol (ICMP) version 6
 TCPv6/UDPv6
 IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs  MIB II (RFC1213)
 Bridge MIB (RFC1493)
 P/QBridge MIB (RFC2674)
 Radius Accounting Client MIB (RFC2620)
 Radius Authentication Client MIB (RFC2618)
 Remote Ping, Traceroute MIB (RFC2925)
 Support TPLink private MIBs
 RMON MIB(RFC1757, rmon 1,2,3,9)
Management Features
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada CloudBased Controller, or Omada Software Controller.
Centralized Management  Omada CloudBased Controller
 Omada Hardware Controller
 Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada CloudBased Controller, or Omada Software Controller.
ZeroTouch Provisioning Yes. Requiring the use of Omada CloudBased Controller
Management Features  Webbased GUI
 Command Line Interface (CLI) through telnet
 SNMPv1/v2c/v3
 SNMP Trap/Inform
 RMON (1,2,3,9 groups)
 SDM Template
 DHCP/BOOTP Client
 Dual Image, Dual Configuration
 CPU Monitoring
 Cable Diagnostics
 EEE
 SNTP
 System Log
OTHERS
Certification CE, FCC, RoHS
Package Content  SG2218P
 Power Cord
 Installation Guide
 Rackmount Kit
 Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment  Operating Temperature: 0–45 ℃ (32–113 ℉);
 Storage Temperature: 40–70 ℃ (40–158 ℉)
 Operating Humidity: 10–90% RH non condensing
 Storage Humidity: 5–90% RH non condensing
