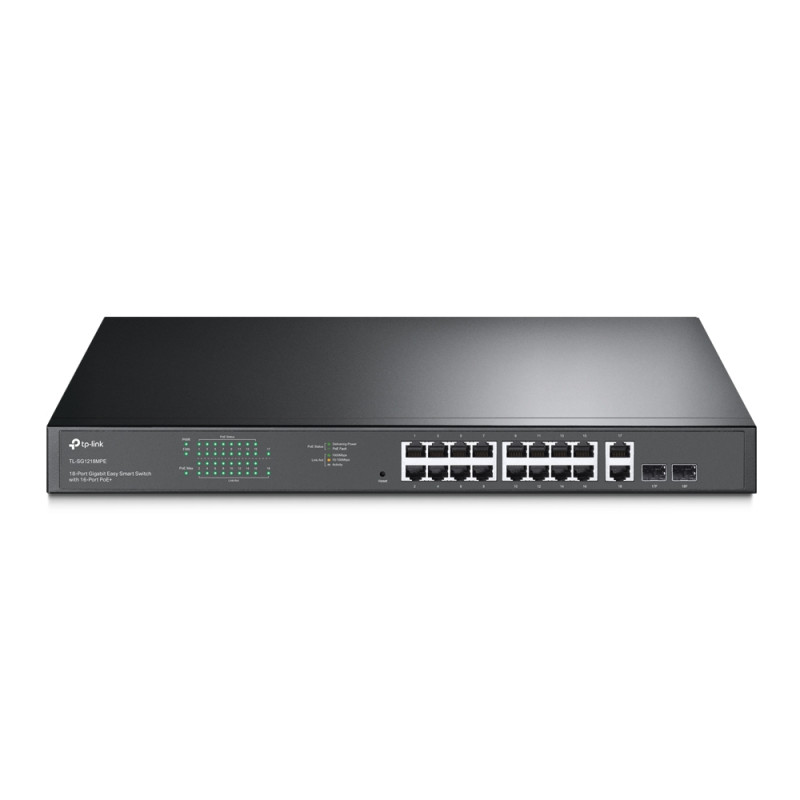

TP Link TL-SG1218MPE 18-Port Gigabit Easy Smart Switch with 16-Port PoE+

Product ID: 10595

Brand: TP-Link

Reference:

Condition: New product

16× PoE+ gigabit RJ45 ports, 2× gigabit non-PoE RJ45 ports and 2× combo gigabit SFP slots.
PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems.
Port Priority is able to guarantee the quality of sensitive application like video monitor.
PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.
Intelligent power management protects the switch from overload.
QoS ensures smooth traffic for latency sensitive applications.
IGMP Snooping optimizes multimedia traffic delivery, such as IPTV.

More details

Send to a friend by WhatsApp

Send to a friend
Send to a friend
TP Link TL-SG1218MPE 18-Port Gigabit Easy Smart Switch with 16-Port PoE+

16× PoE+ gigabit RJ45 ports, 2× gigabit non-PoE RJ45 ports and 2× combo gigabit SFP slots.

PoE power budget is up to 250 W, making it ideal for small to medium business surveillance systems.

Port Priority is able to guarantee the quality of sensitive application like video monitor.

PoE Auto Recovery automatically reboots your dropped or unresponsive PoE-powered devices.

Intelligent power management protects the switch from overload.

QoS ensures smooth traffic for latency sensitive applications.

IGMP Snooping optimizes multimedia traffic delivery, such as IPTV.
Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Share on Facebook!
Print

₨. 42,000.00

Quantity

Warranty

1 Year Warranty

Add to wishlist

More info

HARDWARE FEATURES
Standards and Protocols	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface	16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
	2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
	2× Combo Gigabit SFP Ports
Network Media	10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
	EIA/TIA-568 100Ω STP (maximum 100m)
	100BASE-TX: UTP category 5, 5e cable (maximum 100m)
	EIA/TIA-568 100Ω STP (maximum 100m)
	1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
	EIA/TIA-568 100Ω STP (maximum 100m)
	1000BASE-X MMF, SMF
Fan Quantity	2 Fans
Physical Security Lock	Yes
Power Supply	100–240V AC, 50/60 Hz
PoE Ports (RJ45)	Standard: 802.3at/802.3af compliant
	PoE+ Ports: Ports 1–16
	Power Supply: 250 W
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting	Rack Mountable
Max. Power Consumption	21.4 W (220/50Hz. no PD connected)
Max. Power Consumption	296.3 W (220/50Hz. with 250 W PD connected)
Max. Heat Dissipation	72.97 BTU/h (no PD connected)
Max. Heat Dissipation	1010.38 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity	36 Gbps
Packet Forwarding Rate	26.78 Mbps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	10 KB
SOFTWARE FEATURES
Quality of Service	Support Port-based 802.1p/DSCP priority
	Support 4 priority queues
	Rate Limit
	Storm Control
L2 Features	IGMP Snooping V1/V2/V3
	Static Link Aggregation
	Port Mirroring
	Cable Diagnostics
	Loop Prevention
	PoE Auto Recovery
VLAN	Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
VLAN	MTU/Port/Tag VLAN
Management Features	Web-based GUI
Management Features	Easy Smart Configuration Utility
Transmission Method	Store-And-Forward
OTHERS
Certification	CE, FCC, RoHS
Package Content	TL-SG1218MPE
	Power Cord
	Installation Guide
	Rackmount Kit
	Rubber Feet
Environment	Operating Temperature: 0–50 °C (32–122 °F)
	Storage Temperature: -40–70 °C (-40–158 °F)
	Operating Humidity: 10–90% RH non-condensing
	Storage Humidity: 5–90% RH non-condensing
