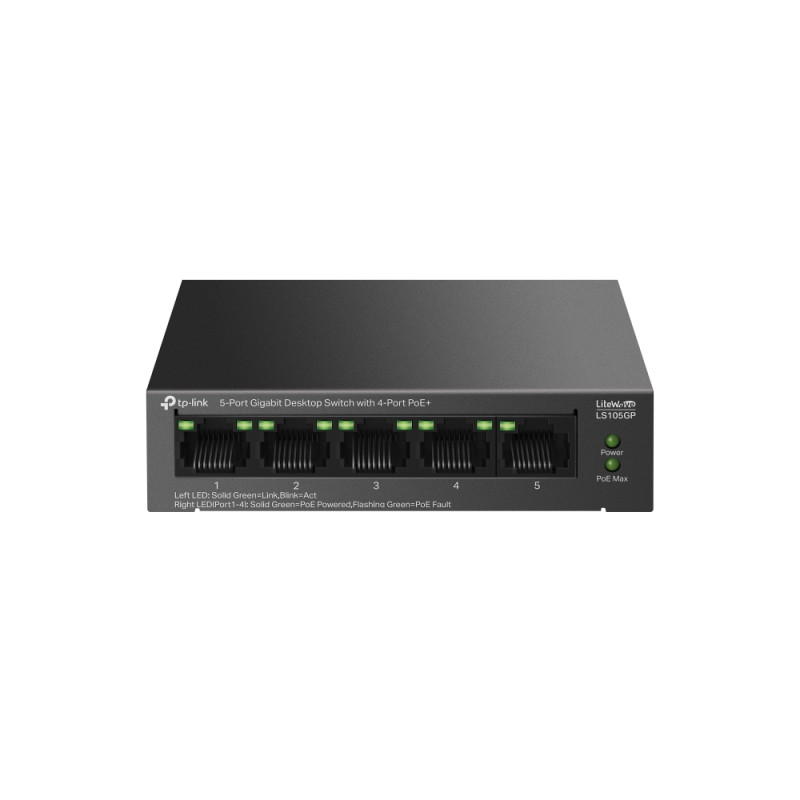

TP Link TL-LS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+
10597
TP-LinkTL-LS105GP
New product
- Full Gigabit Ports
- 65 W PoE Budget
- Up to 250 m PoE Transmission
- PoE Auto Recovery
- Plug and Play
- Silent Operation
- Reliable Hardware Design
More info
| HARDWARE FEATURES | |
| Interface | 5× 10/100/1000Mbps RJ45 Ports (Ports 1–4 supports 802.3af/at PoE+) |
| AUTO Negotiation | |
| AUTO MDI/MDIX | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | Fanless |
| Installation | Desktop |
| Wall Mounting | |
| Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant |
| PoE Ports: Ports 1–4, up to 30 W PoE output per port | |
| Power Supply: 65 W | |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
| Max Power Consumption | 4 W (220/50 Hz. no PD connected) |
| 74.46 W (220/50 Hz. with 65 W PD connected) | |
| Max Heat Dissipation | 13.6 BTU/h (no PD connected) |
| 253.16 BTU/h (with 65 W PD connected) | |
|
PERFORMANCE
|
|
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| MAC Address Table | 2K |
| Jumbo Frame | 16 KB |
|
SOFTWARE FEATURES
|
|
| Advanced Features | Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) |
| PoE Auto Recovery Button (Ports 1-4) | |
| Compatible With IEEE 802.3af/at Compliant PDs | |
| Mac Address Auto-Learning and Auto-Aging | |
| IEEE 802.3x Flow Control | |
| 802.1p/DSCP QoS | |
| IGMP Snooping | |
| Green Technology | |
| Transfer Method | Store-And-Forward |
|
OTHERS
|
|
| Certification | FCC, CE, RoHS |
| Package Contents | LS105GP |
| Power Adapter | |
| Installation Guide | |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉); |
| Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| Operating Humidity: 10–90% RH non-condensing | |
| Storage Humidity: 5–90% RH non-condensing | |
