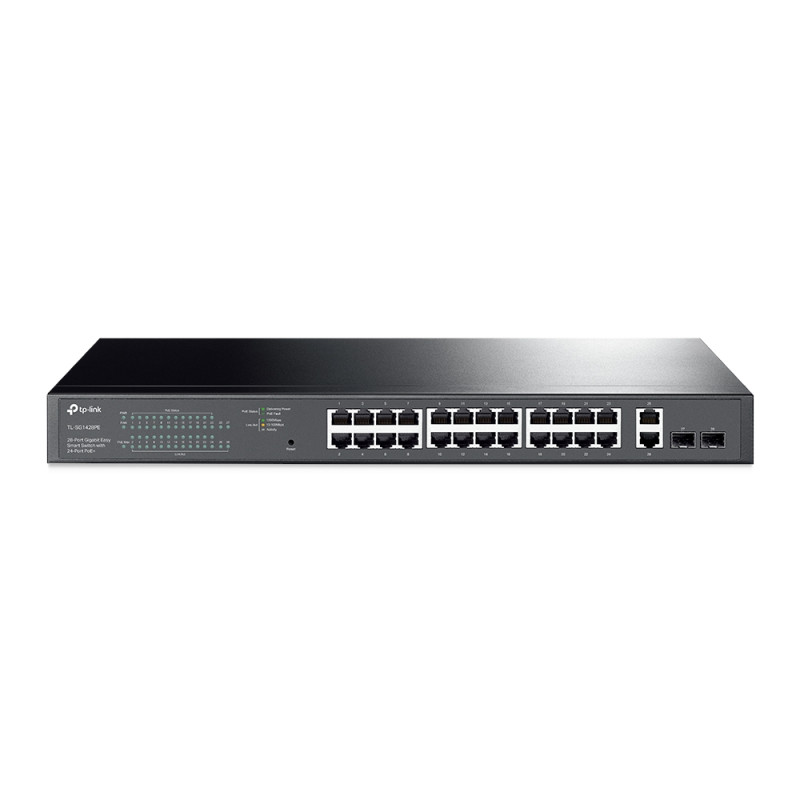

TP Link TL-SG1428PE 28-Port Gigabit Easy Smart Switch with 24-Port PoE+
10599
TP-LinkTL-SG1428PE
New product
- 24 10/100/1000Mbps RJ45 PoE+ Ports Switch with 2 SFP Slots
- PoE power budget is up to 250 W*, making it ideal for small to medium business surveillance systems
- Priority Mode helps to guarantee the quality of sensitive application like video monitoring
- PoE Auto Recovery enables system self-healing to guarantee the stable operation of PoE-connected devices
- QoS is for smooth internet-surfing experience and IGMP Snooping is capable of optimizing traffic for IPTV
- Intelligent power management can protect the switch from overload
More info
| Multiple Application Scenarios |
| The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. |
| Numerous Applications |
| Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc. |
| Making Management Easy |
| TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. |
| System Self-Healing with PoE Auto Recovery |
| The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart. |
|
Intelligent Power Management to Prevent Power Overload
|
| Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation. |
|
Great Compatibility with PD Detection
|
| Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged. |
| Wide Operating Temperature with Good Heat Dissipation |
| Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability. |
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p | |
| Interface | 26 10/100/1000 Mbps RJ45 Ports |
| 2 Gigabit SFP Ports | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-X MMF, SMF | |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100-240V AC, 50/60 Hz |
| PoE Ports (RJ45) | Standard: 802.3at/802.3af compliant |
| PoE+ Ports: 24 Ports | |
| Power Supply: 250 W | |
| Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) |
| Mounting | Rack Mountable |
| Max. Power Consumption | 27 W (220/50Hz. no PD connected) |
| 304.7 W (220/50Hz. with 250 W PD connected) | |
| Max. Heat Dissipation | 92.07 BTU/h (no PD connected) |
| 1039.03 BTU/h (with 250 W PD connected) | |
| PERFORMANCE | |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.7 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | Support Port-based 802.1p/DSCP priority |
| Support 4 priority queues | |
| Rate Limit | |
| Storm Control | |
| L2 Features | IGMP Snooping V1/V2/V3 |
| Static Link Aggregation | |
| Port Mirroring | |
| Cable Diagnostics | |
| Loop Prevention | |
| PoE Auto Recovery | |
| VLAN | Support up to 32 VLANs simultaneously (out of 4K VLAN IDs) |
| MTU/Port/Tag VLAN | |
| Management Features | Web-Based GUI |
| Easy Smart Configuration Utility | |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Content | TL-SG1428PE |
| Power Cord | |
| Installation Guide | |
| Rackmount Kit | |
| Rubber Feet | |
| Environment | Operating Temperature: 0°C~50°C (32°F~122°F) |
| Storage Temperature: -40°C~70°C (-40°F~158°F) | |
| Operating Humidity: 10% ~ 90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
