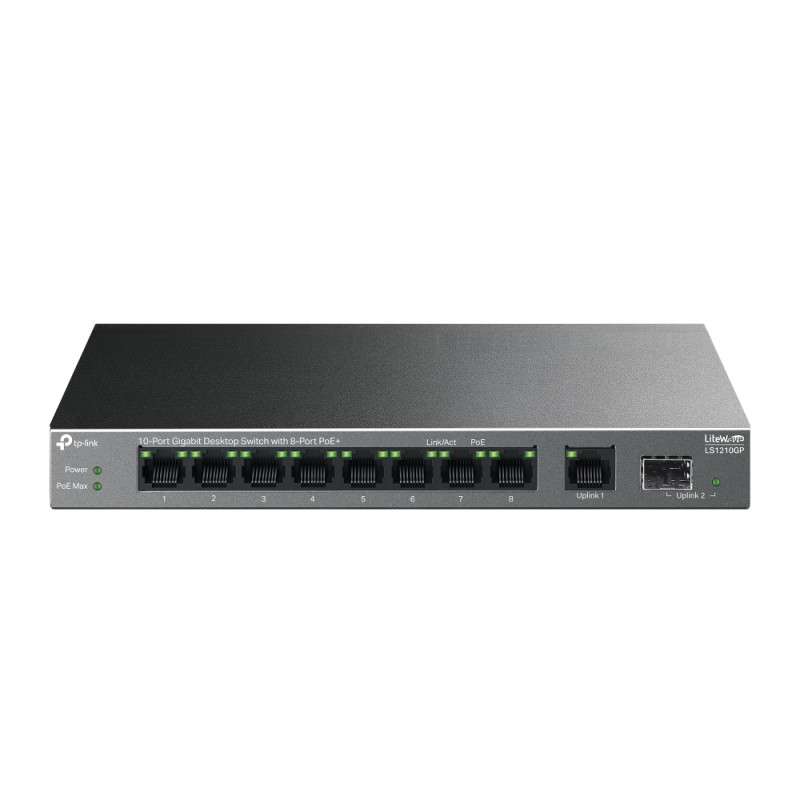

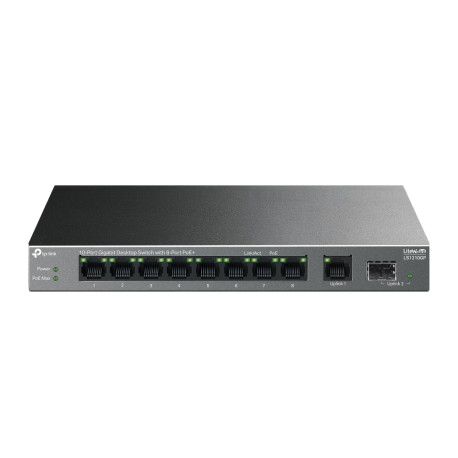

TP Link TL-LS1210GP 10-Port Gigabit Desktop Switch with 8-Port PoE+
10601
TP-LinkTL-LS1210GP
New product
- Full Gigabit Ports.
- 61 W PoE Budget
- Up to 250 m PoE Transmission
- PoE Auto Recovery
- Traffic Separation for Higher Security
- Plug and Play
- Silent Operation
- Reliable Hardware Design
More info
| HARDWARE FEATURES | |
| Interface | 9× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 supports PoE+ output) |
| 1× Gigabit SFP Port | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | Fanless |
| Installation | Desktop |
| Wall Mounting | |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant |
| PoE Ports: Ports 1–8, up to 30 W PoE output per port | |
| PoE Power Budget: 61W | |
| Dimensions ( W x D x H ) | 8.2×4.9×1.0 in (209×126×26 mm) |
| Max Power Consumption | 7.3 W (220/50Hz. no PD connected) |
| 76.96 W (220/50Hz. with 61 W PD connected) | |
| Max Heat Dissipation | 24.82 BTU/h (no PD connected) |
| 261.66 BTU/h (with 61 W PD connected) | |
| PERFORMANCE | |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4K |
| Jumbo Frame | 16 KB |
| SOFTWARE FEATURES | |
| Advanced Features | Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) |
| Isolation Mode Button (Ports 1–8) | |
| PoE Auto Recovery Button (Ports 1–8) | |
| Compatible With IEEE 802.3af/at Compliant PDs | |
| IEEE802.3x Flow Control | |
| 802.1p/DSCP QoS | |
| IGMP Snooping | |
| Green Technology | |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | LS1210GP |
| Power Adapter | |
| Installation Guide | |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) |
| Storage Temperature: -40°C~70°C (-40°F~158°F) | |
| Operating Humidity: 10% ~ 90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
