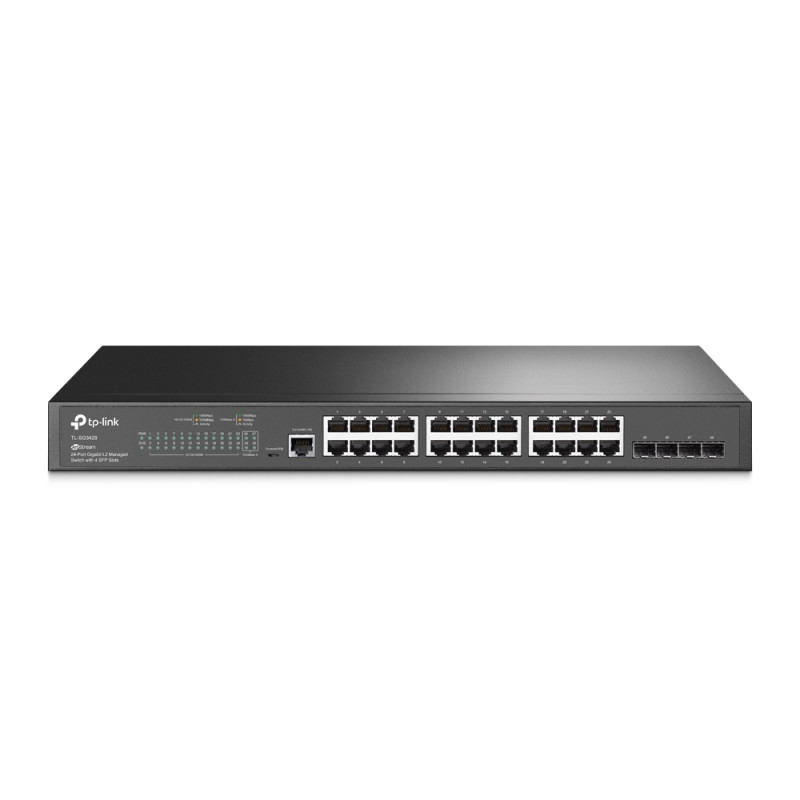

TP Link TL-SG3428 JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots

10590

TP-Link

TL-SG3428

New product

  • Full Gigabit Ports
  • Integrated into Omada SDN
  • Centralized Management
  • Static Routing
  • Robust Security Strategies
  • Optimize Voice and Video Applications:
  • Standalone Management

More details

Send to a friend by WhatsApp

₨. 67,000.00

Add to wishlist

More info

HARDWARE FEATURES
Interface  24× 10/100/1000 Mbps RJ45 Ports
 4× Gigabit SFP Slots
 1× RJ45 Console Port
 1× Micro-USB Console Port
Fan Quantity Fanless
Power Supply 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting Rack Mountable
Max. Power Consumption  V1: 19.22 W (110 V/60 Hz)
 V2: 19.9 W (220 V/50 Hz)
Max Heat Dissipation  V1: 65.58 BTU/hr (110 V/60 Hz)
 V2: 67.73 BTU/h (220 V/50 Hz)
PERFORMANCE
Switching Capacity 56 Gbps
Packet Forwarding Rate 41.66 Mpps
MAC Address Table  V1: 8K
 V2 and above: 16K
Packet Buffer Memory 12 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service  8 priority queues
 802.1p CoS/DSCP priority
 Queue scheduling
SP (Strict Priority)
WRR (Weighted Round Robin)
SP+WRR
 Bandwidth Control
Port/Flow based Rating Limiting
 Smoother Performance
 Action for Flows
Mirror (to supported interface)
Redirect (to supported interface)
Rate Limit
QoS Remark
L3 Features  16 IPv4/IPv6 Interfaces
 Static Routing
48 static routes
 Static ARP
 512 ARP Entries
 Proxy ARP
 Gratuitous ARP
 DHCP Server
 DHCP Relay
 DHCP L2 Relay
L2 and L2+ Features  Link Aggregation
Static link aggregation
802.3ad LACP
Up to 8 aggregation groups and up to 8 ports per group
 Spanning Tree Protocol
802.1d STP
802.1w RSTP
802.1s MSTP
STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
 Loopback Detection
Port-based
VLAN based
 Flow Control
802.3x Flow Control
HOL Blocking Prevention
 Mirroring
Port Mirroring
CPU Mirroring
One-to-One
Many-to-One
Tx/Rx/Both
L2 Multicast  Supports 511 (IPv4, IPv6) IGMP groups
 IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave
IGMP Snooping Querier
IGMP Authentication
 IGMP Authentication
 MVR
 MLD Snooping
MLD v1/v2 Snooping
Fast Leave
MLD Snooping Querier
Static Group Config
Limited IP Multicast
 Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features  Automatic Device Discovery
 Batch Configuration
 Batch Firmware Upgrading
 Intelligent Network Monitoring
 Abnormal Event Warnings
 Unified Configuration
 Reboot Schedule
VLAN  VLAN Group
Max 4K VLAN Groups
 802.1q Tagged VLAN
 MAC VLAN: 30 Entries
 Protocol VLAN: Protocol Template 16, Protocol VLAN 16
 GVRP
 VLAN VPN (QinQ)
Port-Based QinQ
Selective QinQ
 Voice VLAN
Access Control List  Time-based ACL
 MAC ACL
Source MAC
Destination MAC
VLAN ID
User Priority
Ether Type
 IP ACL
Source IP
Destination IP
Fragment
IP Protocol
TCP Flag
TCP/UDP Port
DSCP/IP TOS
User Priority
 Combined ACL
 Packet Content ACL
 IPv6 ACL
 Policy
Mirroring
Redirect
Rate Limit
QoS Remark
 ACL apply to Port/VLAN
Security  IP-MAC-Port Binding
DHCP Snooping
ARP Inspection
IPv4 Source Guard
 IPv6-MAC-Port Binding
DHCPv6 Snooping
ND Detection
IPv6 Source Guard
 DoS Defend
 Static/Dynamic Port Security
Up to 64 MAC addresses per port
 Broadcast/Multicast/Unicast Storm Control
kbps/ratio/pps control mode
 IP/Port/MAC based access control
 802.1X
Port based authentication
Mac based authentication
VLAN Assignment
MAB
Guest VLAN
Support Radius authentication and
accountability
 AAA (including TACACS+)
 Port Isolation
 Secure web management through HTTPS with SSLv3/TLS 1.2
 Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6  IPv6 Dual IPv4/IPv6
 Multicast Listener Discovery (MLD) Snooping
 IPv6 ACL
 IPv6 Interface
 Static IPv6 Routing
 IPv6 neighbor discovery (ND)
 Path maximum transmission unit (MTU) discovery
 Internet Control Message Protocol (ICMP) version 6
 TCPv6/UDPv6
 IPv6 applications
DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
MIBs  MIB II (RFC1213)
 Bridge MIB (RFC1493)
 P/Q-Bridge MIB (RFC2674)
 Radius Accounting Client MIB (RFC2620)
 Radius Authentication Client MIB (RFC2618)
 Remote Ping, Traceroute MIB (RFC2925)
 Support TP-Link private MIBs
 RMON MIB(RFC1757, rmon 1,2,3,9)
Management Features
Omada App Yes, through
 Omada Cloud-Based Controller (TL-SG3428 v2 and above)
 OC300
 OC200
 Omada Software Controller
Centralized Management  Omada Cloud-Based Controller (TL-SG3428 v2 and above)
 Omada Hardware Controller (OC300)
 Omada Hardware Controller (OC200)
 Omada Software Controller
Cloud Access Yes, through
 Omada Cloud-Based Controller (TL-SG3428 v2 and above)
 OC300
 OC200
 Omada Software Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller (TL-SG3428 v2 and above).
Management Features  Web-based GUI
 Command Line Interface (CLI) through console port, telnet
 SNMPv1/v2c/v3
Trap/Inform
RMON (1, 2, 3, 9 groups)
 SDM Template
 DHCP/BOOTP Client
 802.1ab LLDP/LLDP-MED
 DHCP AutoInstall
 Dual Image, Dual Configuration
 CPU Monitoring
 Cable Diagnostics
 EEE
 Password Recovery
 SNTP
 System Log
OTHERS
Certification CE, FCC, RoHS
Package Content  TL-SG3428 Switch
 Power Cord
 Quick Installation Guide
 Rackmount Kit
 Rubber Feet
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment  Operating Temperature: 0–45 ℃ (32–113 ℉);
 Storage Temperature: -40–70 ℃ (-40–158 ℉)
 Operating Humidity: 10–90% RH non-condensing
 Storage Humidity: 5–90% RH non-condensing
